Weeke BHP008/480 Vantech 4x8 Flat Table CNC Router
This machine is under power until 7/6 for inspection.
| MA ID: | RC3 - 14516 |
| Price: | $26,900.00 |
| Category: |
CNC Router (3-axis) |
| Manufacturer: | Weeke |
| Model: | Vantech BHP008/480 |
| Year of Manufacture: | 2012 |
| Condition: | Good |
| Electric: | 480 Voltage 60 Cycle 3 Phase |
|

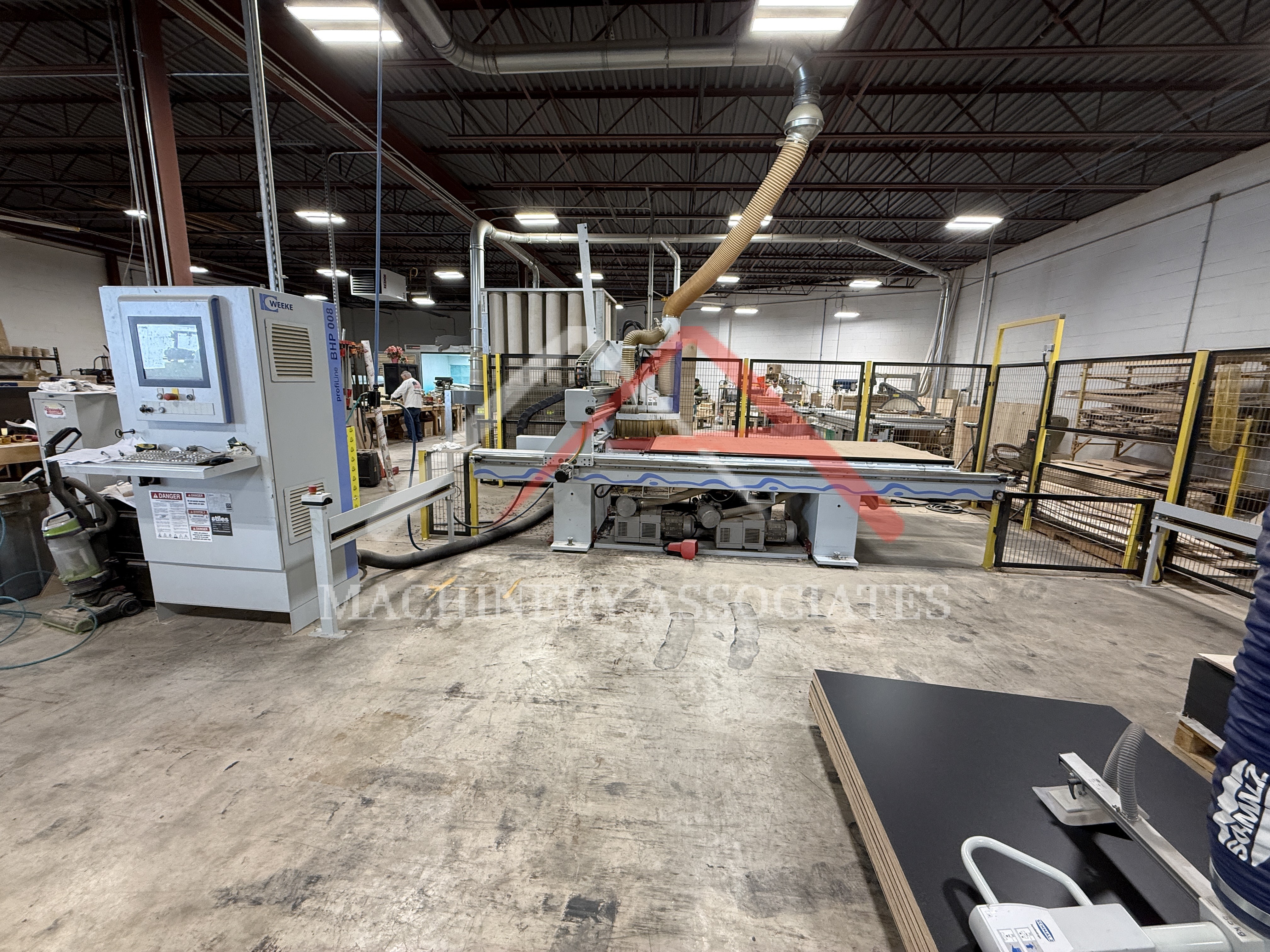

2012 Weeke Vantech 480 Flat Table CNC Router
Technical Specs: Router spindle; 12.0 hp Spindle speed; 1,250 - 24,000 rpm's Tool magazine capacity; 7 position Auto tool-length touch-off Drill block; 7 position individually controlled Vacuum pumps; 3 Becker Vacuum Pumps Working length; 99" Working width; 49" Matrix phenolic table with grooves for vacuum pods Vacuum system with 3 pumps mounted under machine table Reference Pins (7) = 2@ table end and 3+2 @ the table sides Max workpiece thickness; 100mm Woodwop Programming Operating voltage; 480v, 3ph without voltage transformer AMP service at 480 volts; 50 amps Duct extraction; 8" |
|
| Shipping Footprint: |
20 (length) x 8 (width) x
7 (height)
|
| Weight: | 7000 lbs |
All Information including Photos and Videos are supplied by a 3rd party Source.
Some photos may show tooling. Tooling is never included in the listing unless otherwise noted in the description.
Please confirm all data before committing to a purchase.
