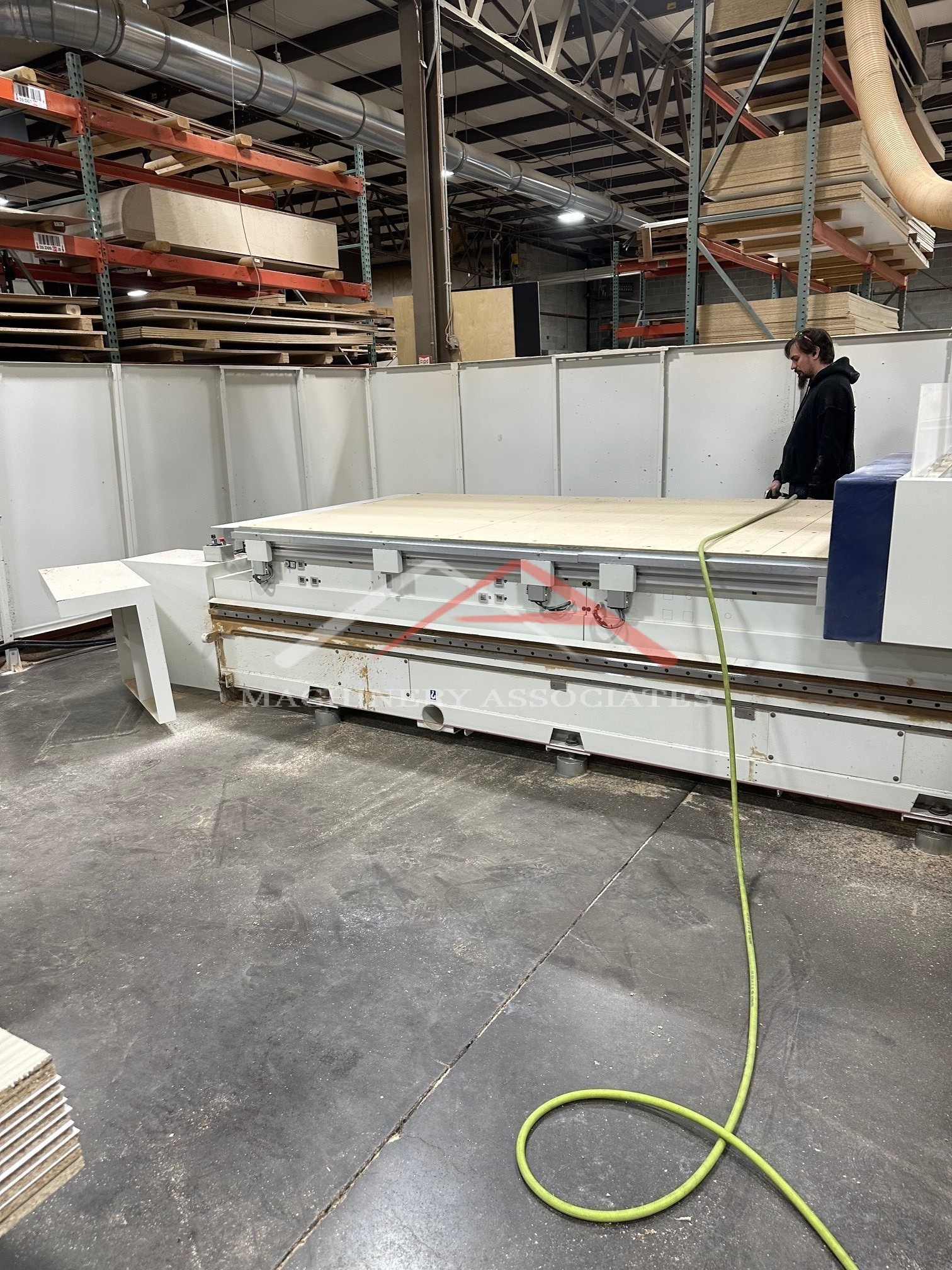

SCM Morbidelli M400 CNC Router with unloading
A heavy duty Morbidelli with unloading!! NICE
| MA ID: | RC3 - 14460 |
| Price: | $35,900.00 |
| Category: |
CNC Router (3-axis) |
| Manufacturer: | Morbidelli |
| Model: | Author M400 |
| Year of Manufacture: | 2016 |
| Condition: | Good |
| Electric: | mulit Voltage 60 Cycle 3 Phase |
|
2016 Morbidelli M400 Nested based Router with Unloading and Conveyor
Specifications 5' x 12' extruded aluminum "MATRIX" vacuum table Work Area: "X" Axis 143.7" (3,650 mm); "Y" axis 62.9" (1,600 mm); "Z" axis stroke 11" (280 mm) (1) 16-1/2 HP (12 kW) "Power 2000" Electrospindle HSK F63 16-Position "Rapid-16" traveling ATC Max material thickness is 6.69" (170 mm) (6) Vacuum zone areas External pop up reference pins located on the sides & back of the table for positioning parts. NC Touch off Probe for: Automatic tool length setting PC Front-End with: XILOG PLUS + Windows "7" Operating System - XILOG Plus offers incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration; encoder feedback; dynamic tool correction via PLC due to active tool wear using space-and-time criteria. (2) 300 cbm/Hr Becker Vacuum Pumps handheld pendant control. |
|
| Shipping Footprint: |
37' (length) x 8 (width) x
8 (height)
|
| Weight: | 12000 lbs |
All Information including Photos and Videos are supplied by a 3rd party Source.
Some photos may show tooling. Tooling is never included in the listing unless otherwise noted in the description.
Please confirm all data before committing to a purchase.
