Andersen Stratos Pro with 4-stack MLS Auto-Feeder and offloading
High Horsepower, huge drill block, largest loading system Andi makes. This is a monster!!
| MA ID: | RC3 - 14436 |
| Price: | $299,900.00 |
| Category: |
CNC Router (3-axis) |
| Manufacturer: | Anderson America |
| Model: | Stratos Pro FL |
| Year of Manufacture: | 2020 |
| Condition: | Very Good |
| Electric: | multi Voltage 60 Cycle 3 Phase |
|
2020 ANDERSON STRATOS/PRO FULL AUTO MLS
TECHNICAL SPECIFICATIONS: X axis: 3900 mm (153”)
Spindle; 4 pole; 24hp; 1000-22,000 rpm ATC; 10 Position Tool Changer Tool Length Touch-off Drill Block; 3hp; 10+10 spindles in "Y"axis + 10+10 in "X" axis 40 SPINDLES!! FANUC OiM-F Controller System + Windows PC Front End User Interface Vacuum Hold Down; 3-Becker 9hp Pumps (168cfm ea)
Automatic Feed 4 full bunks of material are located in the stalls of the loader. One sheet, which is determined by program, is picked up by vacuum lift and placed on the moving infeed conveyor. The gantry will pick up the material (from the infeed conveyor) at designated time and place it perfectly on the table for processing. It will then proceed with cutting operations. At the end of the cutting process, the gantry will push off the cut pieces and vacuum the table from dust at the same time. It also pulls the next panel onto the machine.

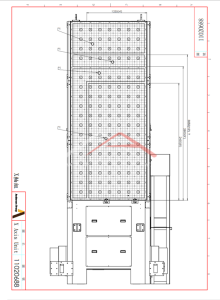

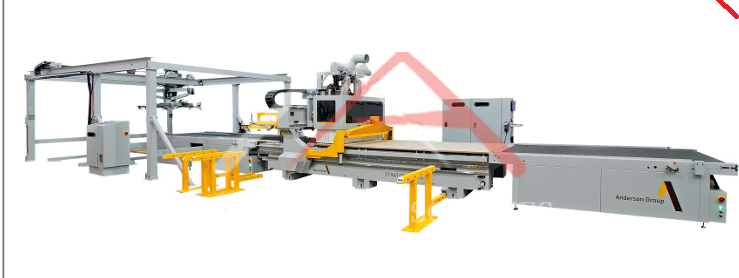

Requires (88a @ 240v) or (44a @ 480v) not inc pumps. NOTE; there are some factory photos in this so we can tell the story of this very unique machine, easier. They are obvious but I put a red stripe in the top right corner for the factory photos, just to be clear.
|
|
| Weight: | 20000 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
