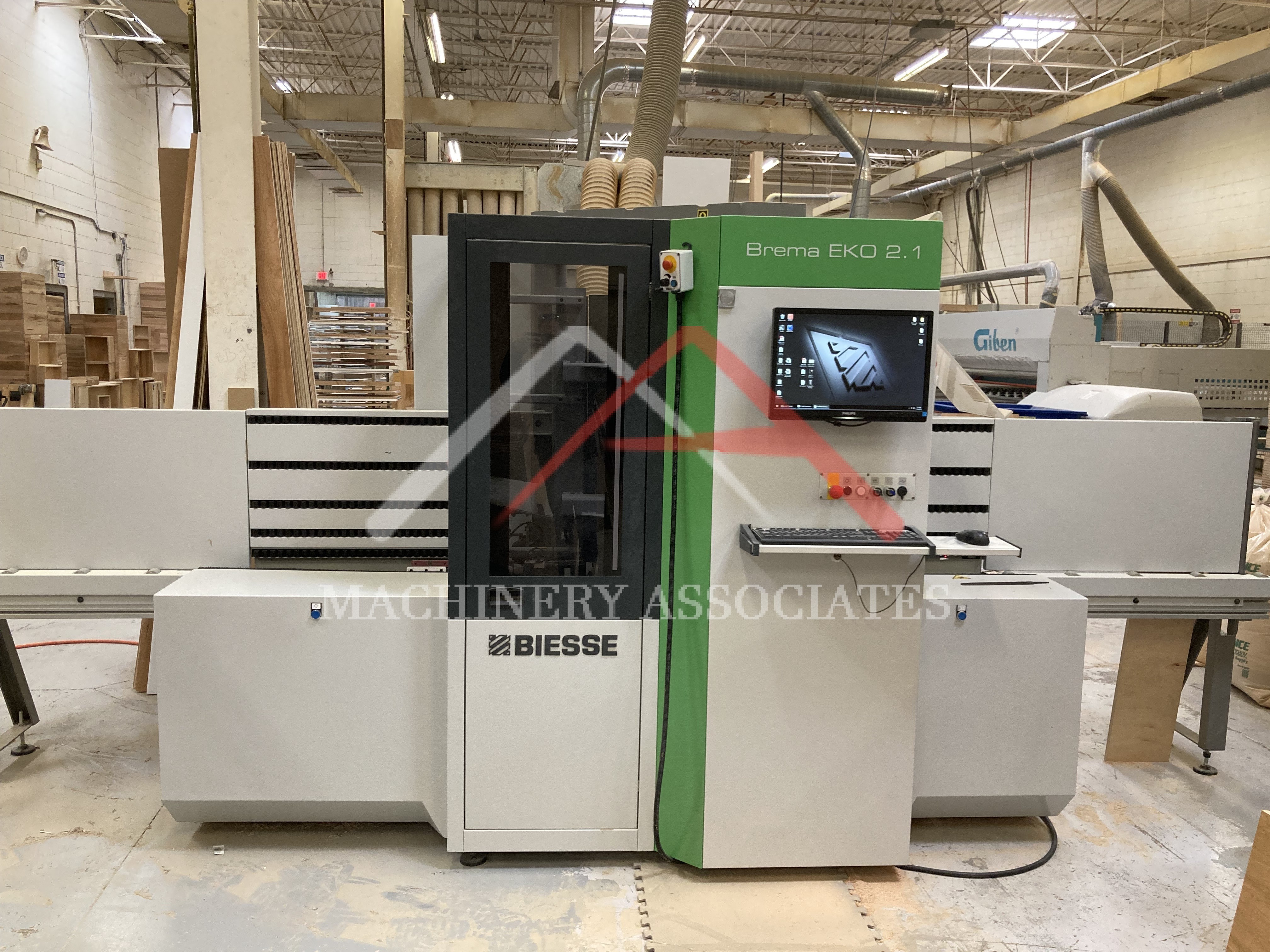

Biesse Brema EKO2.1 Vertical
A beautiful vertical, low use and well kept machining center.
MA ID: | PTP - 13932 |
Price: | $39,900.00 |
Category: |
Point to PointCNC Router (3-axis) |
Manufacturer: | Biesse |
Model: | Brema EKO 2.1 |
Year of Manufacture: | 2015 |
Condition: | Very Good |
Electric: | Multi Voltage 60 Cycle 3 Phase |
2015 Biesse Brema EKO 2.1
Workpieces dimensions (workable panels):Length: Min mm 200 / Max mm 3200 Vertical positioning of the panels/workpieces to be processed, 2 clamps for the panel locking and positioning Laser reading system to detect the beginning and end of the panel Infeed of the panel (X-axis direction, moving on a bottom support with rubber wheels) by means the displacement of workpiece clamping device traveling in X-axe 8 position tool changer 6 Horizontal independent drilling spindles (4 in X axe and 2 in Y axe) Circular (grooving) saw (diam. mm 120) Bar Code Reader Safety enclosure on the working head and of the working area in the machine (BIESSE Control software bSolid) |
|
Shipping Footprint: | 17 (length) x 7 (width) x 8 (height) |
Weight: | 5500 lbs |
