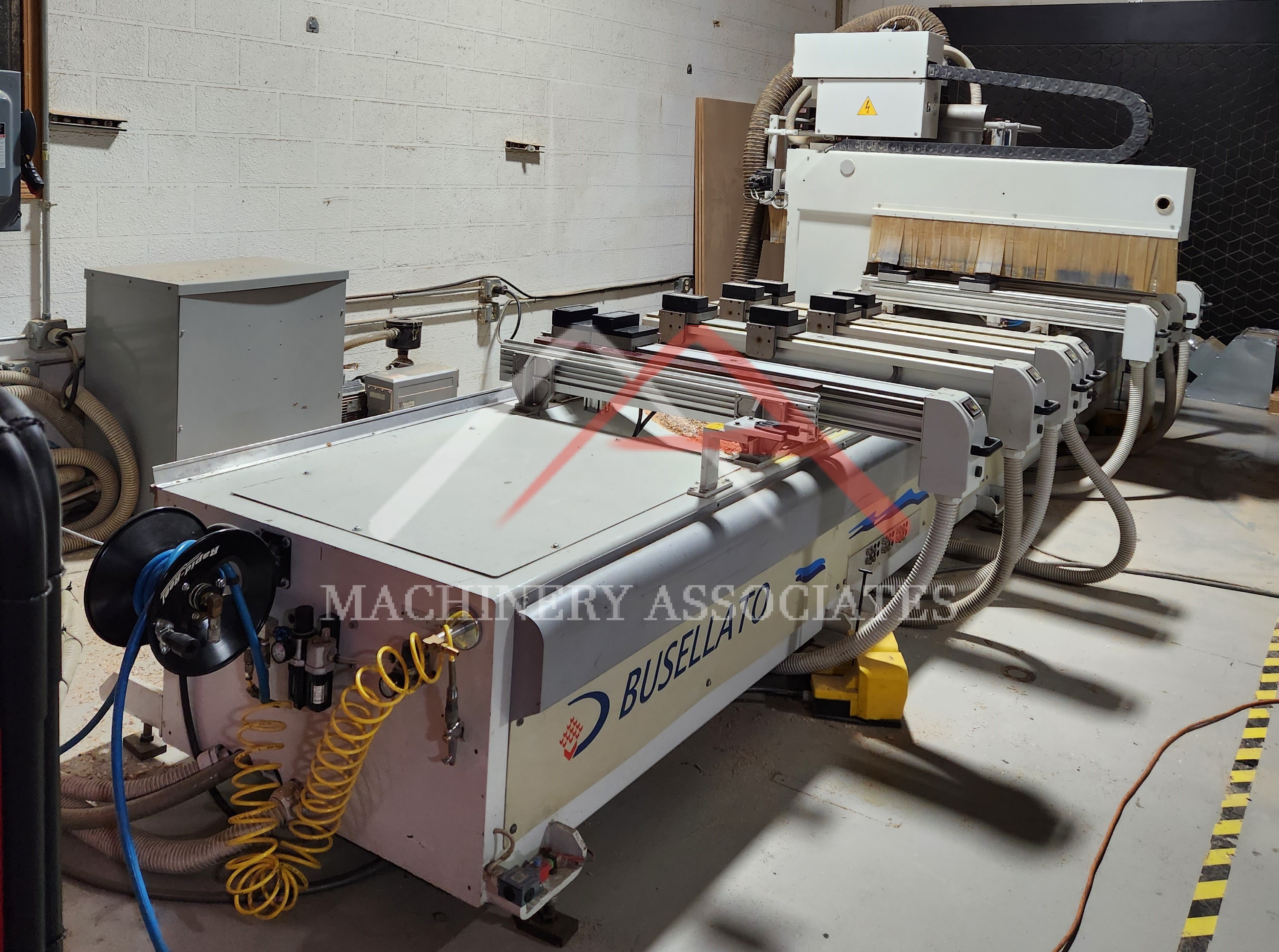

Busellato Jet Concept XL CNC Machining Center

MA ID: PTP - 13344
Price: $9,000.00
Category:

Point to Point

Manufacturer: Busellato
Model: Jet Concept XL
Year of Manufacture: 2006
Condition: Fair
  • Serial #6361
  • Manufactured in 2006
  • 10 HP Electro spindle         w/ceramic bearings
  • HSK 63F
  • Up to 24,000 RPM
  • 10 Position rotary tool changer
  • Maximum diameter tool; 140mm
  • Maximum tool weight: 4 kg (16 lbs.)
  • Useful Working Field:
    • X axis = 175”
    • Y axis + 48”
    • 6” Maximum panel thickness
  • 5 HP single outlet horizontal spindle with ERG32 collet
  • 12 Vertical 32mm drilling spindles with 7 in X axis and 5 in Y axis
  • 230/460 Volt 3 Phase via transformer
  • 3 kW (4.5HP) vacuum pump motor
  • 8 Panel supports with scales for positioning
  • 16 Interchangeable Modular Cups for vacuum pods or clamps
  • “0” point positioning rails on both ends
  • “0” Point reference pins on the end of panel supports and intermediate pins on each rail
  • PC numerical control system with operating and programming software
  • Dust hood and safety fencing
  • Safety mats inoperable
  • In running condition, being used for service training
  • Rigging required to load

Weight: 10000 lbs
Rigger: Required on selling end
