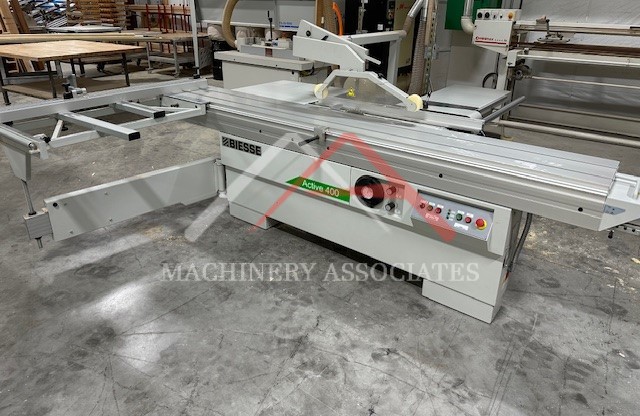

Biesse Active 400 Sliding Table Saw
Great deal of a machine with a top quality brand name in the wood working industry.
| MA ID: | PSS - 13752 |
| Price: | $8,000.00 |
| Category: |
Panel Saw - Sliding |
| Manufacturer: | Biesse |
| Model: | Active 400 |
| Year of Manufacture: | 2016 |
| Condition: | Very Good |
| Electric: | 230 Voltage 60 Cycle 3 Phase |
|
Biesse Sliding Table Saw
Specifications: 3200mm (10’6”) Cutting Capacity 7.5 HP Main Saw Blade Motor 1.2 HP Scoring Unit .24 HP Motorized Lifting of main Saw Blade Tilting Movement of Main Saw Blade 0-45 Degree Gravitational Read-out of Blade Tilting 2 Saw Blade Safety Guards 80 & 120mm Rip Fence with Micro Adjustment Increased Extensible Cross Cut Fence Precision Flip Stops w/ Magnified View on measurement gauge Anodized Aluminum Saw Carriage Saw Carriage on Precision Ground Steel Bars
Max.Cutting Length with cross cut fence 126” / 3200 mm Max.Cutting Width with rip cut fence 49.2” / 1250 mm Main blade dia. (standard) 15.7” / 400 mm Main blade shaft dia 1.2” / 30 mm Cut height with blade 45° - 3.54” / 90 mm Cut height with blade 90° - 5.1” / 130 mm 3 rotation speeds of main blade 3200-4000-6000 rpm Rotation speed of scoring blade 8000 rpm Scoring blade diameter 4.7” / 120 mm Scoring blade shaft dia .78” / 20 mm Blade tilting 0°-45° Rip cut capacity 50” / 1250 mm Cross cut capacity sliding table 1870 lbs / 848 kg - 128” / 3260 mm |
|
| Shipping Footprint: | 12 (length) x 12 (width) x 4 (height) |
| Weight: | 2000 lbs |
Please confirm all data before committing to a purchase.
