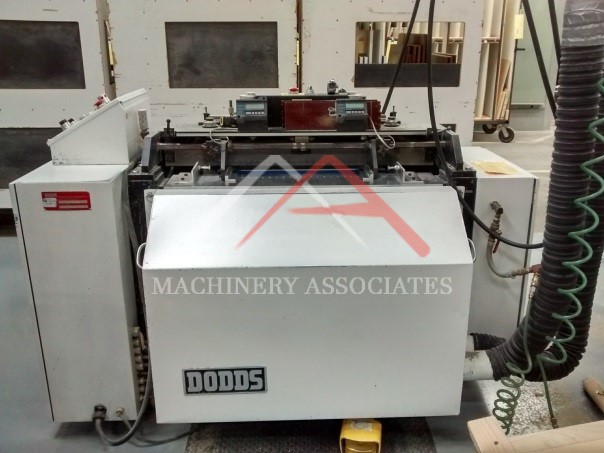

Dodds SE-25 CNC Dovetail

MA ID:

DV - 9808

Status:

Sold

Price:

$18,850.00

Category:

Dovetail Machinery

Manufacturer:

Dodds

Model:

SE-25 CNC Dovetail Machine

Year of Manufacture:

2001

Condition:

Good

Electric:

480 Voltage 60 Cycle 3 Phase

Brand/Model:	DODDS "SE 25 CNC
Year MFG:	2001
Machine Type:	DOVETAILER (CNC CONTROL)
Serial #:	DO1116-133
Elect./Voltage:	480V, 60 Cy, 3 Ph.
Location:	NW United States
Dimensions:	72" L x 48" W x 52" H
Weight:	1,750 Lbs (estimate)

25 Spindles (12-right & 13-left), 1-3/4" - 25" material capacity; 5 HP - 1,800 RPM motor, 10,500 RPM spindle speed, precision movement of spindle unit with adjustable carriage stroke feed 10 - 25 movements/Min., food pedal control to engage cutting cycle in manual mode.

8" - 48" Drawer width L to R, 4-15/16" min. drawer depth.

Equipped with: Dust collector & noise abatement guards, automatic "oil mist" lubrication, adjustable chip breakers for clean out tenons, Digital indicator screw type adjustment for end stops.

Capable of dovetailing a wide range of drawer material, including solid and laminated woods; lipped drawer front and back simultaneously dovetailed, produces up to (100) drawers/Hour.

Shipping Footprint:

72 (length) x 48 (width) x 52 (height)

Weight:

1750 lbs
