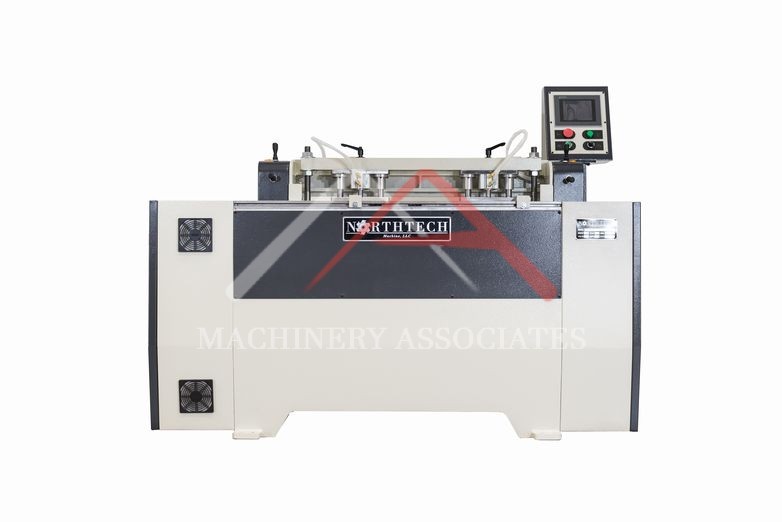

Northtech NT DTM-600CNC Dovetailer

New Northtech CNC Dovetailer With Independent Part Release. Machinery Associates is a full line Northtech Dealer.

MA ID: DV - 13101
Price: Call For Price

Dovetail Machinery

Manufacturer: Northtech
Model: NT DTM-600CNC
Condition: New
Electric: 230 Voltage 60 Cycle 3 Phase
Northtech Dovetailer


3HP 18,000 RPM spindle

Maximum processing width 600mm (23-1/2")

Tenon depth: Min. bit radius: Max. 10mm (.39") + bit radius

Tenon width: Min. bit Ø: Max. 50mm (2") + bit Ø

Tenon height: Min. 5/16": Max. = blade length up to 1"

Spindle vertical adjustment: 10mm (.375")

Horizontal & Vertical pneumatic clamping allows dual independent part release of available workstation

ER 25 dovetail bit

Required working air pressure: 90 PSI on a 1/4" air line

Dust port (1) 3" requiring 245 CFM @ each point of extraction

Mortise and tenon can be easily adjusted separately

95 FPM dovetail bit acceleration

Bit sharpening compensation adjustments via PLC control versus, continued manual tenon adjustments

Automatic error detection and display

(1) Tool box

Warranty is one year parts

Voltage Change . . . $ 275

Shipping Footprint: 60 (length) x 79 (width) x 56 (height)
Weight: 1800 lbs
