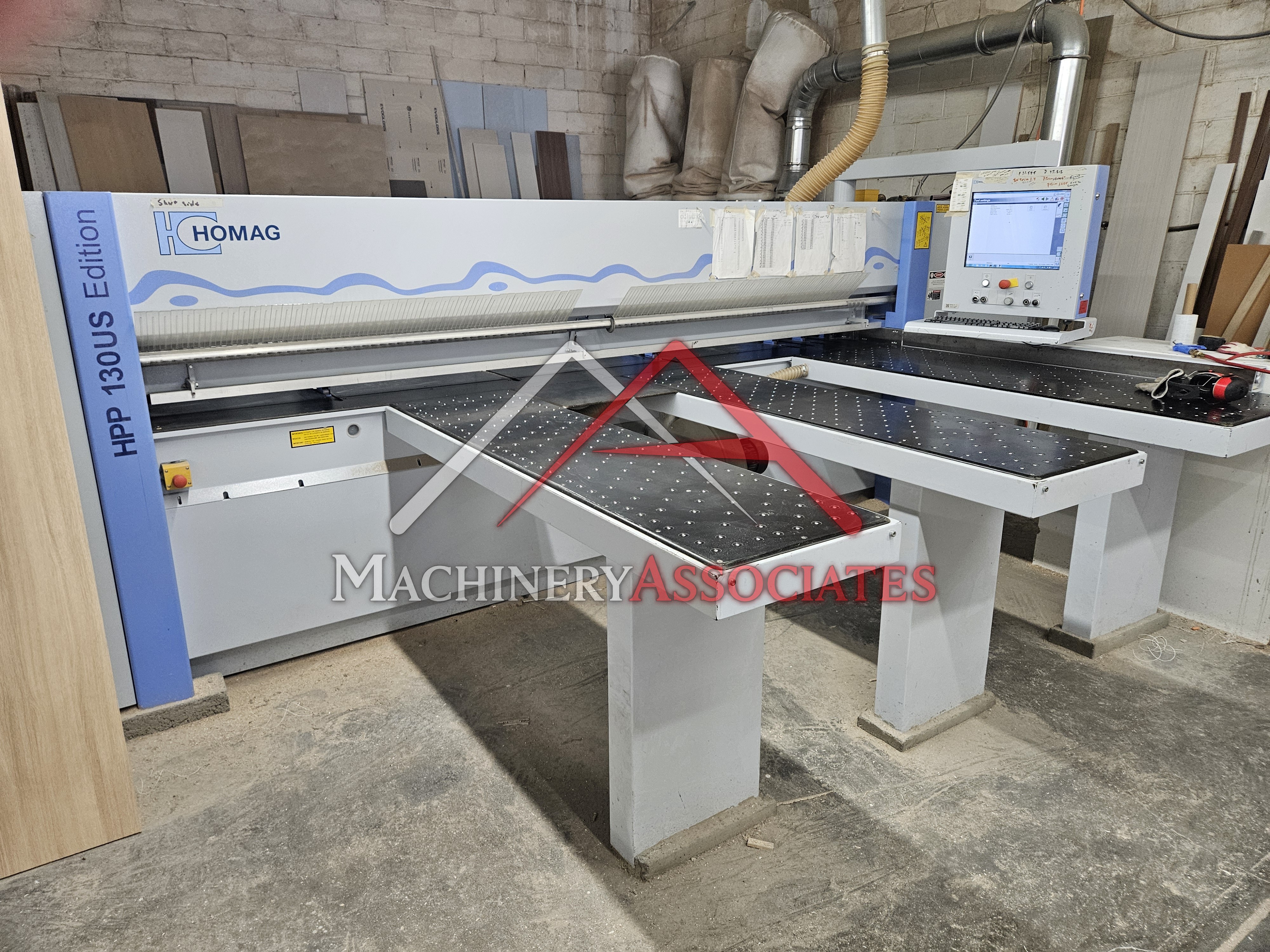

Homag HPP130 Panel saw

10' Panel saw, compact and efficient 2 sheet machine. This is not for big stacks but most people cut a panel at a time anyway

MA ID: PNC - 14562
Price: Call for Price
Category:

Panel Saw - CNC

Manufacturer: Homag
Model: HPP 130/32/32
Year of Manufacture: 2017
Condition: Very Good
Electric: 460 Voltage 60 Cycle 3 Phase
2017 Homag HPP130 Ten Foot Panel Saw



  • Cutting Length / Width: 126 inches (3,200 mm)
  • Saw Motor: ~12 HP (9 kW / 5.5–7.5 kW main motor) with a 2 HP scoring motor
  • Saw Blade Projection: 2.36 inches (60 mm)
  • Travel Speeds: Forward and return speeds up to 196 FPM (60 m/min) for both the program fence and saw carriage
  • Control System: PowerTouch control with CADMATIC (4.1+ / BASIC) operating on Windows
  • Standard Layout: Includes 3 front air flotation tables and an automatic centric side aligner
  • Power Requirements: Typically 3-phase, 460V electrics





Shipping Footprint: Full Truck
Weight: 8500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Some photos may show tooling. Tooling is never included in the listing unless otherwise noted in the description.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
