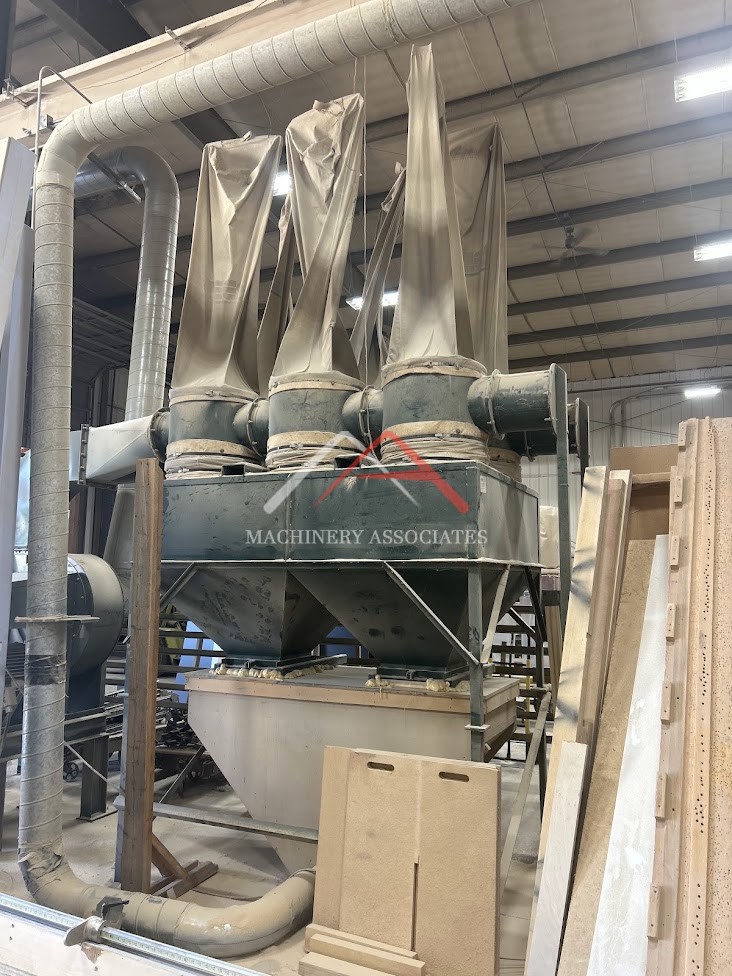

REES CX 2030

FEATURES

Many Applications    REES Model CX Dust Collectors can be used on many types of equipment where dust is a problem. These units efficiently collect dust from operations such as wood, plastics, food products, rubber and paper.

Quality Construction   REES Dust Collectors are heavy duty, compact, and builtto last. Heavy gauge steel and continuous welds are manufacturing standards.

Efficient Operation   The Model CX Dust Collector is designed to efficiently separate particles from dust laden air. Dust passes through the fan and into the collector modules. An air deflector in each module initiates the separating process. The heavier particles drop to the storage container and clean in-plant air is returned to the manufacturing area.

Flexible Design  Choose from three different CFM capacities to suit your particular application. REES Model CX Dust Collectors are available in 10 HP, 15 HP and 20 HP sizes with 4, 6 or 8 collector modules. For smaller air volumes, use REES Model C Dust Collectors, available in 2 HP, 3 HP, 5 HP and 71/2 HP. The modular design allows you to add on in the future to increase filter area and storage capacity. For waste storage, this collector uses 55-gallon drums, plastic bags or cloth bags for more initial filter area.

Easy Installation   Each unit is shipped with collector modules, filter bags, assembled fan with v-belt drive, and miscellaneous parts for complete assembly. All components bolt together easily with hand tools.

Simple Maintenance   Maintenance involves a periodic shaking of the upper filter bags to knock dust particles from the inside wall and emptying of the storage drums or lower bags as required. Dust Collection/ Steel Fabrication

Specifications

Blower Unit    All units use 3 phase, 208 -230/456 volt, 1750 rpm, TEFC motors with v-belt. The floor mounted fans include elbows and splitter fitting as needed to connect to collector modules. For smaller air volumes, use REES Model C Dust Collectors, available in 2 HP, 3 HP. 5 HP, and 7 1/2 HP.

Collector Module    Each collector module is manufactured with continuous welds and heavy gauge steel. It includes an air deflector & connecting flanges with 3/8” diameter bolts.

Leg Supports     2” square tubing provides extra support and stability 3/8” diameter bolts are included for easy assembly.

Quick Release Clamps Adjustable steel band clamps are furnished with spring loaded clasp.

Filter Bag and Sleeve     A polester sateen 7.5 oz./sq. yd. filter media is used with mounting grommets, support rods and band clamps. The filter sleeve is used for the drum connection. The series 1000 comes standard with 25 sq. ft. filter bags and the Series 1500 and 2000 use 40 sq. ft. filter bags. The filter sleeve has 7 sq. ft. of cloth area. Larger filter bags are available as an option.

Waste Storage       55 gallon drums, filter bags, or plastic bags may be used for waste storage. (Customer to furnish 55 gallon drumes.) Option 89 cubic foot dust topper for use with forklist is also available for 6 modular collector.
