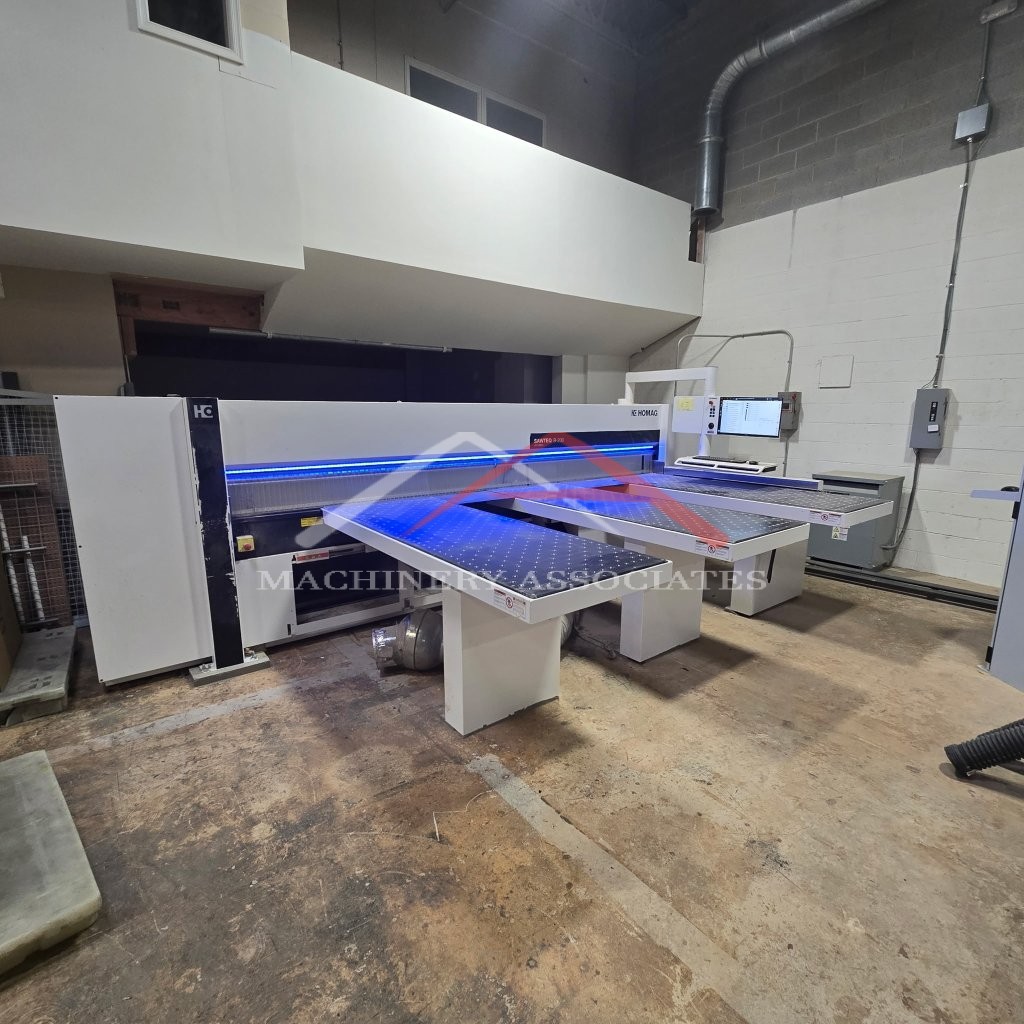

2022 Homag Sawtech B-200 Panel Saw

Powercontrol V2.1
Homag PowerTouch Operating Panel

Technical Specifications:
Panel size (maximum): 3800mm x 3200mm (150" x 126)
Panel size (minimum): 50mm x 50mm (1.97" x 1.97")
Cutting length: 3800mm (150")
Cutting width: 3200mm (126")
Working height: 920mm (36.22")
(6) Clamps: First three with two fingers; others with one finger

(3) Air tables - One fan: 2100mm x 800mm (82.38" x 31.50")

Air pressure required: 7 bar, 102 psi
Total air volume: Based on 6 bar, 150NL/min., 5.25cfm
Extraction: Minimum 3300m3/h, 1942 cfm (velocity 26m/sec., 85 f/s)
Total connect load: 14.2 kW, 480 volts
Amperage (nominal): 29.1 Recommended prefuse amps 40
Diameter of dust connectors: Pressure beam 140mm (5.51")
Diameter of dust connectors: Saw carriage 160mm (6.30")
Main saw blade: 350mm x 4.4mm x 60mm (diameter 350mm (13.77"))
Scoring saw blade: 200mm x 4.4-5.25mm x 45mm (diameter 200mm (7.87"))
