DOUCET EM2 THROUGH FEED END MATCHER
DOUCET EM2 THROUGH FEED END MATCHER PRICED TO SELL
| MA ID: | FJ M - 14432 |
| Price: | $28,900.00 |
| Category: |
Finger Jointers and End Matchers |
| Manufacturer: | DOUCET |
| Model: | EM2 |
| Year of Manufacture: | 2002 |
| Condition: | Good |
| Electric: | 480 Voltage 60 Cycle 3 Phase |
| Hours on meter: | NA |
|
Seller indicates machine in good running condition. presently at their facility. Currently being reconverted from hydraulic.

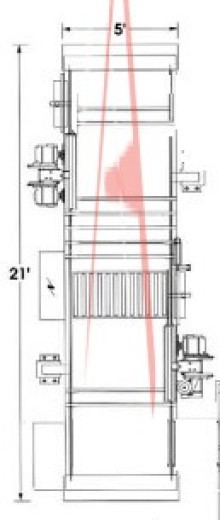

Working dimensions: Length 12" to 96"; width 1-1/4" to 5" with 1" max thickness. Chain deck: Feed speed with 3 HP motor at 28 lugs per minute. Deck dimensions 21' x 5' with singulating bars spacced 12" or 8" oc. Approximately up to 10,000 BDF per shift depending on average length of workpiece. Cutting/grooving: (2) 12" dia. trim saw for squaring and (2) profiling heads each with 3HP. Material flow: The workpiece proceeds into the first machining center and is aligned. First cut is trim/square and second cut of tongue or groove. A cross transfer switches the work piece to the opposite side of the machine and again the process is completed. The "EM" can handle more than 10,000 square feet of flooring per shift. Actual Machine Photos Coming Soon
|
|
| Weight: | 8000 lbs |
Please confirm all data before committing to a purchase.
