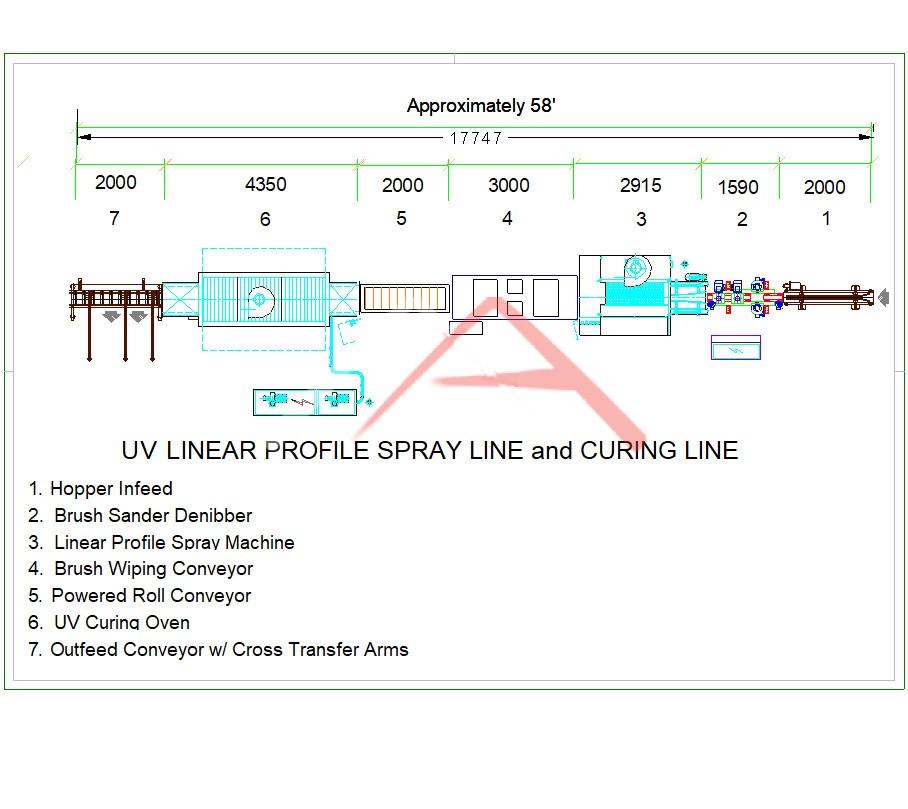

Complete Cefla - UV Linear Spray Line with UV Curing. Very Low Hours

This is a fully assembled and integrated system. It includes;

Item 1 – Cefla Delle Vedove Model VMN 2000/LB  - Belt Conveyor with Letterbox Feeder

• Transfer conveyor for manual loading of product into finishing system.  In-feed hopper system accommodate stacked parts, to assist in the manual loading process

Item 2 - Cefla Delle Vedove Model Brushtech 4-  Brush Denib Sanding Machine

• Rubber conveyor belt,
• Variable adjustable speed from 20 to 50 m/min. (66 to 164 fpm)
• Adjustable upper hold-down devices.
• Machine is equipped with four (4) wheel units (one (1) right, one (1) left, and two (2) top)
• 900 rpm brushing speed horizontal and vertical wheel
• Unit adjustment by means of slide.
• Equipped with a dust extraction hood for each brush.
• Options included: Drive system of each brush is upgraded with variable speed capabilities (300 to 1200 rpm)

Item 3 - Cefla Model NW4 - In Line Ultra Violet Spray Machine

• Provides automatic three side application of ultra violet material to work piece
• Photo-eye sensor activates intermittent spraying operation to improve transfer efficiency
• Each spray gun is independently controlled and set-up (one (1) air circuit for each gun), enabling full application flexibility
• Intake air filtered by dry air filters to minimize dust contamination overspray recovery and exhaust air/coating separation system designed to retard emission of U.V. material to outside atmosphere
• Stainless steel overspray collection and recovery tank easily removed for cleaning purposes
• Transport system includes an in-feed and out-feed conveyor belts and powered fixed position rollers through the application chamber
• Fixed positions rollers through application chamber are removable for ease of cleaning
• Variable conveying transport speed

Item 3A -  Sames Kremlin Fluid Management –

• 5 each Kremlin High Pressure Automatic Guns w/ assorted tips
• 1 each Kremlin High Pressure Pump

Item 3B -  Custom Wiping Station Conveyor - Intermediate, Item 3 and 4

• 4 Head Brush Configuration - Top, Right and Left - Opposing, Top
• Variable speed/ Reversible Brush Heads
• Variable Speed Conveyor

Item 4 - Cefla Model TLFP 3/100/2 INF -Ultraviolet Curing System for Profiles

• Provides direct emission of UV radiation, which is utilized in the curing of UV-cured coating materials
• Three (3) high-intensity Ultraviolet curing lamps for top side curing Two (2) lower mounted UV curing lamp with fixed power of 100 W/cm, 250 mm long, placed crosswise
• UV lamp power supply is infinitely variable from 80 to 120 W/cm (200 to 300 watts/in) and is manually set and displayed at the control board
• UV lamps are equipped with shutters and half-power switching to close irradiation zone in the event of line stoppage Lamps and conveyor area cooled by filtered air flow.
• Chrome bar conveyor with variable speed drive has infeed and outfeed roller section

Item 5 – Cefla Delle Vedove Model TR-OUT 2000/3 Semi-Automatic Unload Unit

• Unit designed to semi-automatically unload linear profile work pieces
• Three (3) transfer arms support a range of work piece lengths
• Belt feed section with variable speed drive
• Unloading arms with PVC coated belts
