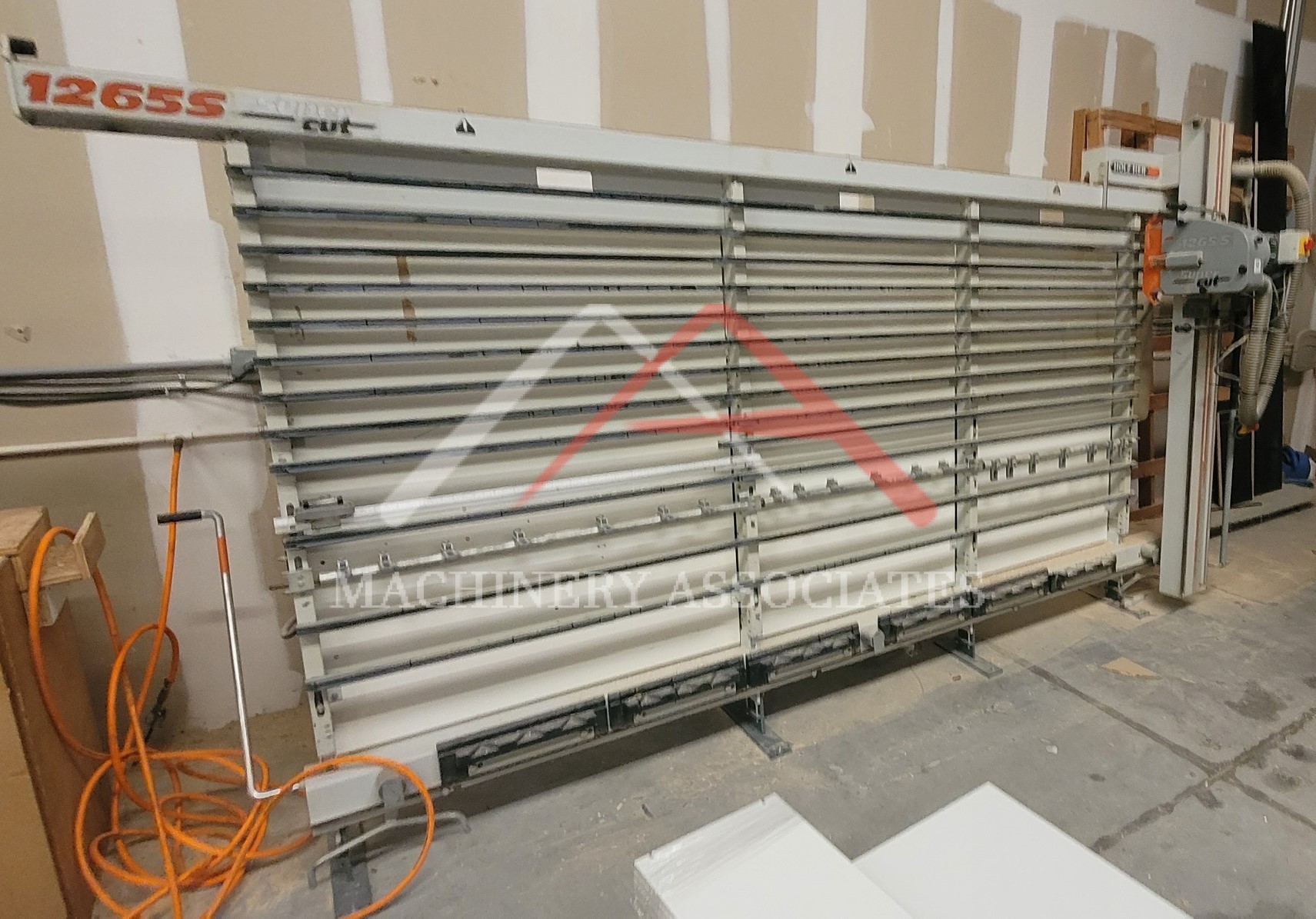

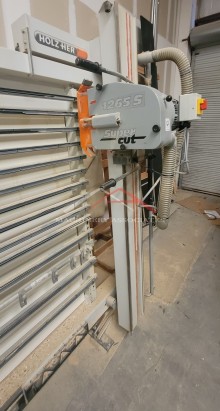

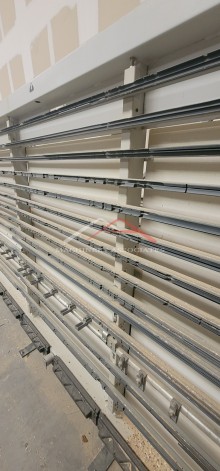

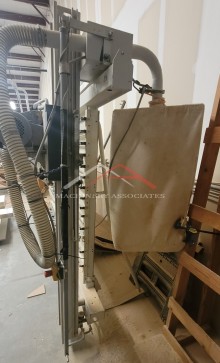

Holz Her 1265S Vertical Panel Saw Supercut Scoring

Holz Her 1265S Vertical Panel Saw Supercut Scoring

MA ID: PSV - 13339
Price: $14,000.00
Category:

Panel Saw - Vertical

Manufacturer: HolzHer
Model: 1265S
Year of Manufacture: 2008
Condition: Very Good
Electric: 230 Voltage 60 Cycle 3 Phase
Holz Her Vertical Panel Saw

Specifications:

Main motor 4 HP

Depth of cut 2” max

Scoring unit with insert knives

Saw head rotates 90 degrees for rip or cross cutting

Manual shifting back grid

gauging bar with flip stop for midway fence with scale

Bottom roller with manual control for easy movement of panels

Integrated dust collection



Working dimensions:

Cutting dimensions (inches)

Length x height 129 x 64

Edging height 62 1/2

Cutting depth 2 (max)

Cutting depth depends on material type

Saw blade dia. 8.6’’ (220 mm)

Saw blade speed (rpm) at 60Hz 6540



Extraction Air requirement (cfm) 825

Air speed (fpm) 3936

Unit connection (mm) 65 (2 1/2’’)

Static under pressure (Pa) 900



Machine dimensions Floor space required (in./mm)

Length 163 / 4150

Depth 56 / 1420

Height 89 / 2260


Shipping Footprint: 163 (length) x 4 (width) x 89 (height)
Weight: 2500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
