Putsch SVP 950 Vertical Panel Saw - 3

MA ID: PSV - 9331
Status: Archived
Price: Call For Price
Category:

Panel Saw - Vertical

Manufacturer: Putsch
Model: SVP 950
Year of Manufacture: 2018
Electric: 230 Voltage 60 Cycle 3 Phase

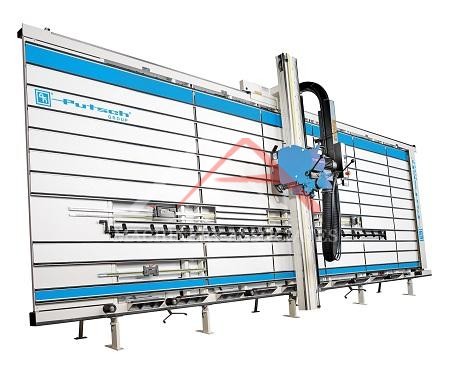

The Putsch® SVP 950 is built for production. This saw is ideal for shops who need to cut multiple panels at once, but is not ready or able to step up to a horizontal beam saw. The 12-inch blade is powered by a 7.5 hp self-braked, UL-compliant motor, offering 3 inches of clearance for sheet stacking.

The Putsch® SVP 950 frame offers over 17 feet for the cutting length (5300 mm), long enough to handle the longest panel. The automatic shifting grid is moved using a wear-resistant inductive motor.

There are two ergonomically shaped handles for comfortable movement of the saw assembly and the assembly features an insertion assist arm to help with the plunging of the saw head on taller panels. Digital-readouts as standard "Inch" measurement. Standard features include a full-length mid-grid support shelf, a low-level flip-stop for small and heavy materials and a repeat horizontal strip cutting device.


Shipping Footprint: 24 (length) x 8 (width) x 8.3 (height)
Weight: 2300 lbs
