Laminating and Veneering > Wrap/Foil/Roll

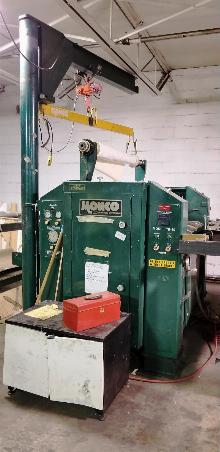

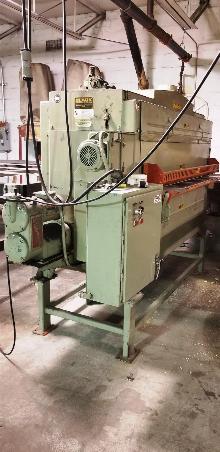

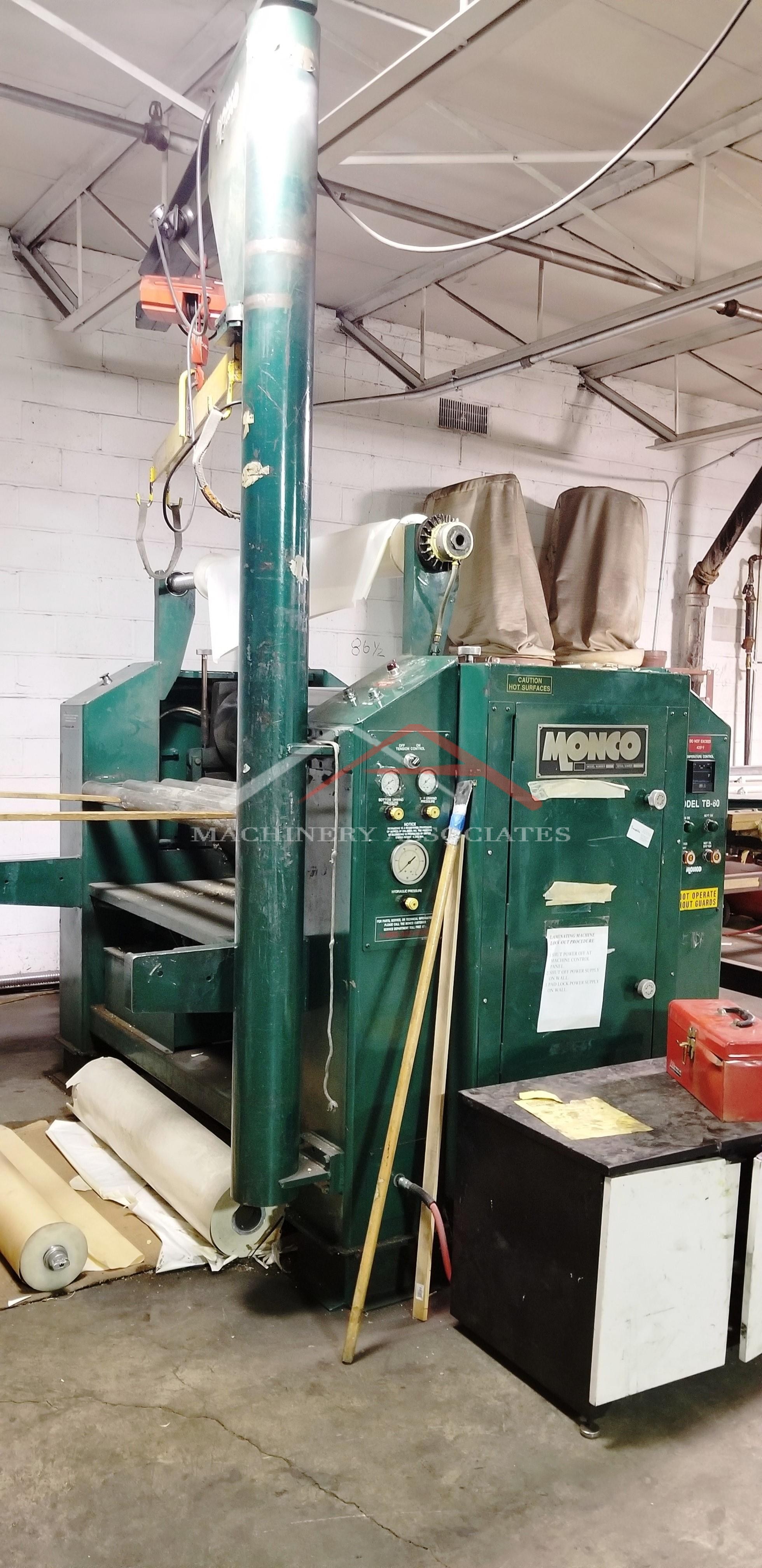

Monco TB60 60 inch Hot Roll Laminating Line

MA ID: LFL-10987
Price: $29,500.00 -or- as low as $596.19/mo.*
General Location: Midwest
Category:

Wrap/Foil/Roll

Panel Cleaners

Manufacturer: Monco
Model: Monco TB60
Condition: Very Good
Electric 460 volt, 60 cycle, 3 phase

Monco TB60 60" inch Hot Roll Laminating Line, 65" Cap., Top & Bottom Laminator with oil heated chrome plated rollers, 14" roller diameter. 25 - 106 FPM, 5 HP feed motor, 48 kW oil heating system, 400° F max. heating including over-temperature cutoff safety device. 1 HP Oil circulation pump & a 1.5 HP hydraulic system for up to 900 PSI line pressure; 3" dia. x 4" stroke cylinders control roll pressure. Including Black Bros Top & Bottom Panel CLeaner, 62" width capacity. Including scissors lifts infeed & outfeed. Includes: Solid-State temperature, high limit & cool down controls; manual emergency stop system on all (4) columns to stop the drive & raise the rolls. Note: Top roll within 12” end of has a small dent. Maximum useable width is 50” 1988 machine is good running condition.

Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
