MAKOR CSP6 SPRAY FINISHING LINE

MA ID: FSB-11057
General Location: South East
Category:

Spray booths

Manufacturer: MAKOR
Model: CSP-6
Condition: Very Good
Electric 230 volt, 60 cycle, 3 phase

MAKOR CSP-6 SPRAY FINISHING LINE

Complete finishing line for water based paint coating. Infeed conveyor, sprayer, stacker and rack. Seller has cleaned and checked the machine with many new parts.

Infeed: New roll covers and infeed belt.

Makor Model TE-3000 transfer conveyor with a (2) speed drive motor and belt dimension of 6" x 120". (4) infeed transfer chains.

Spray unit: working dimension up to 7-7/8" wide.

Makor model CSP-6 spray unit with (3) NEW Deviblis spray guns with separate pressure controls for each gun,. Included in enclosure; filter and waste system. 3 HP (2) speed drive for belt conveyor 6" x 39"; includes (2) powered rollers 6" wide. Discharge conveyor 6' x 55" at outfeed end. New PLC control unit to automatically regulate the opening-and-closing intervals for the spray according to the speed & length of the part. . All new rollers recent. 1 " ARO fluid pump; including all new fluid lines and air lines. Line can run up to 500 FPM.

Stacker unit: New PLC and feed rollers

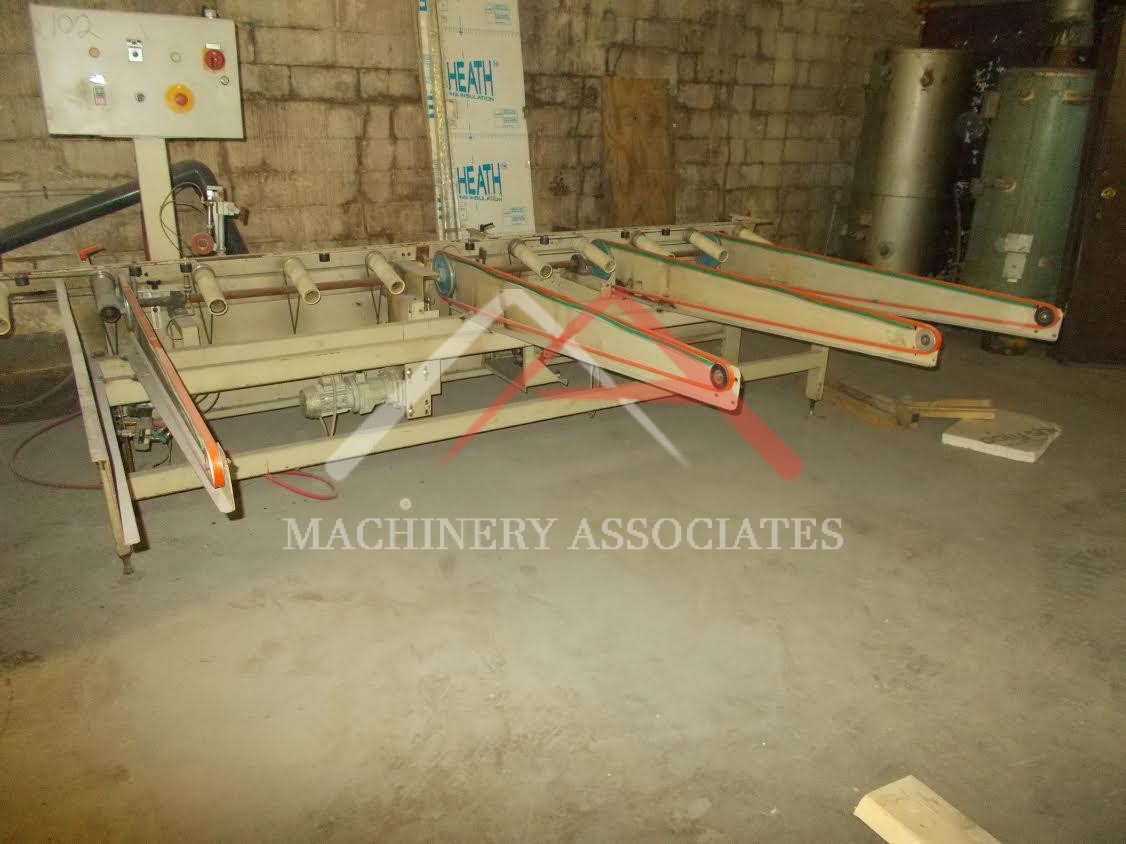

Makor model ACA4 finish stacker for material dimensions; length 60" to 144" and material width up to 6". (4) traverse arms to lift material over the top onto a traverse belt and onto the drying racks.

Note: Seller has (2) lines available (1) available now and second line in (3-4) weeks. Pricing is for one line each. Can be inspected.

Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
