Panel Saws > Panel Saw - CNC

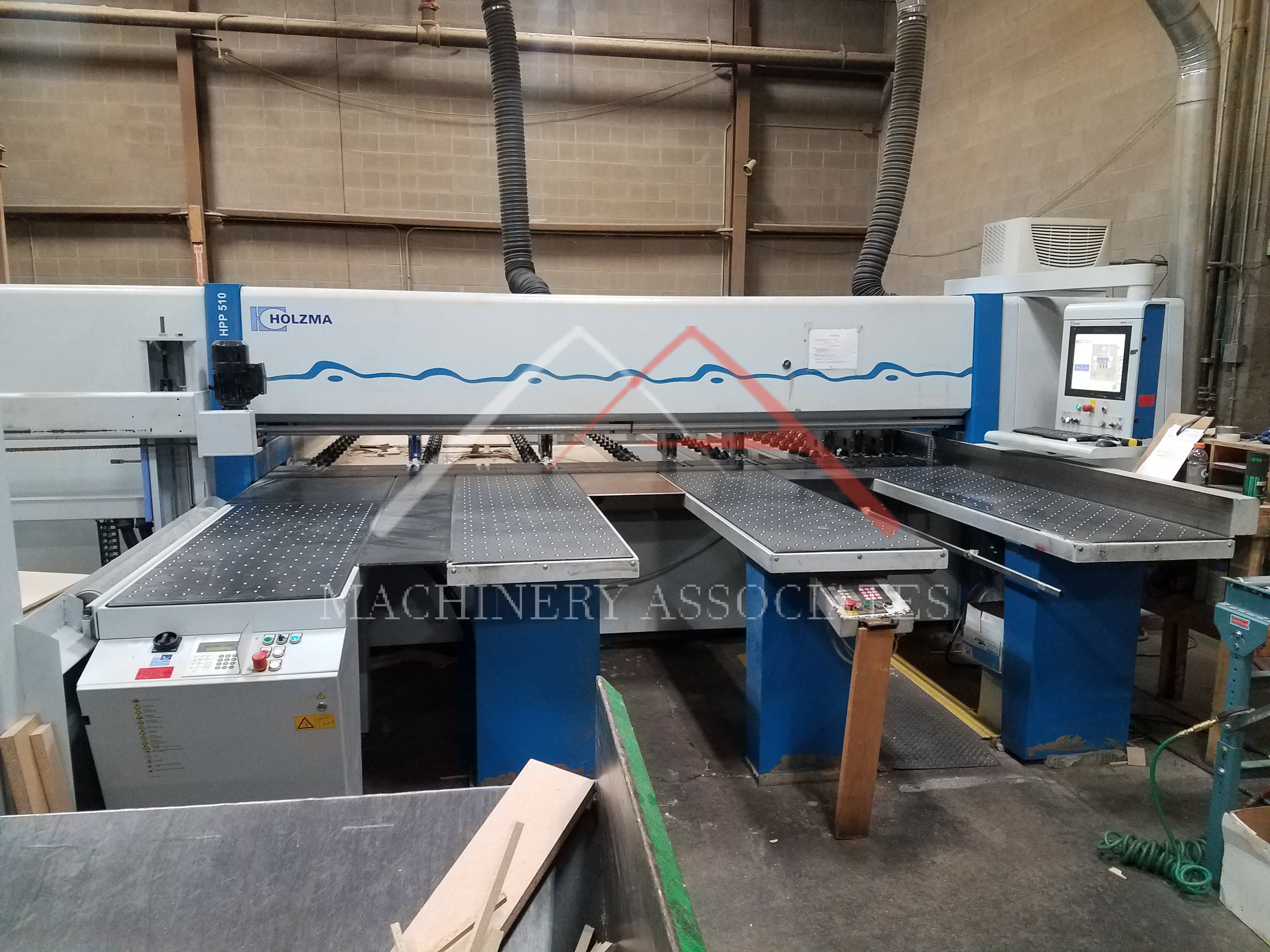

2006 Holzma HPP 510 CNC Panel Saw

A heavy duty saw with huge grip capacity!

MA ID: PNC-12302
Price: $31,900.00 -or- as low as $644.70/mo.*
General Location: Midwest
Category:

Panel Saw - CNC

Manufacturer: Holzma
Model: HPP 510 38/38
Year of Manufacture: 2006
Condition: Good
Electric 480 volt, 60 cycle, 3 phase
2006 HPP 510 38/38 CNC Front Load Panel Saw

Specifications;

149.6" (3,800 mm) Cutting length & pull-back,

4.9" (125 mm) max. main blade projection.

28 HP (21 kW) Main

3 HP (2.2 kW) scoring motor.

Saw Carriage:Variable speed from 16 - 426 FPM (5 - 130 MPM), constant return of 426 FPM (130 MPM)

Saw carriage is electronically & automatically controlled through the CADmatic according to the material/program being processed.

Pusher Fence;Rack & pinion drive on both sides, forward speed 82 - 262 FPM (25 - 80 MPM),return speed 262 FPM (80 MPM)

(7) Material clamps which open up to 4.72" (120 mm); first (2) clamps with two fingers and the others with one finger,(4) Trimming rakes for thin strips/scrap removal are attached at the clamps. --

Operator & Machine Control:HOLZMA "Power Control 22" IPC Direct downloading from office PC through RS 232 or USB connection is possible.

Machine Features:Angular cross-cut fence; side pressure device for cross-cutting

Weight: 13000 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
