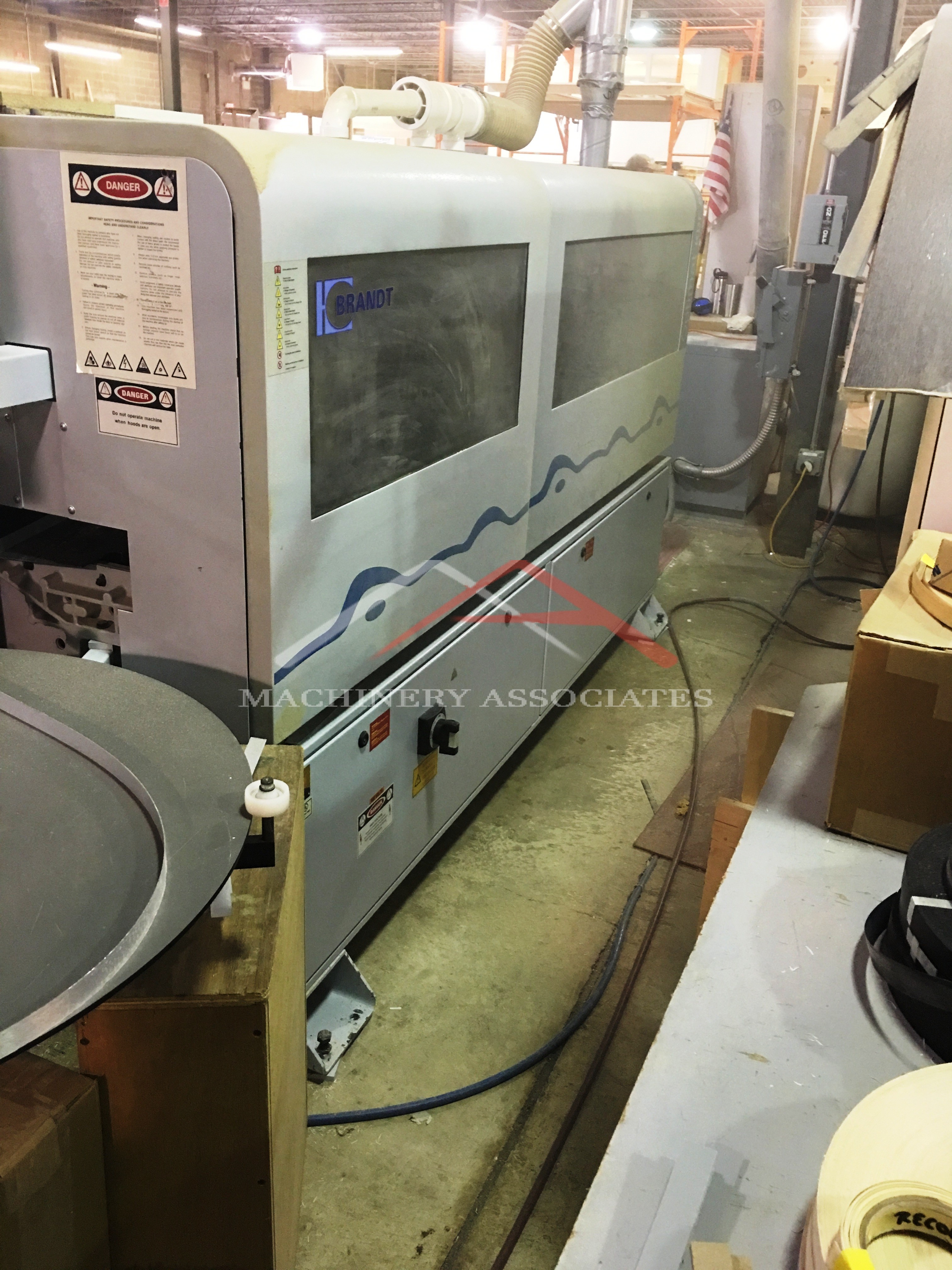

Brandt KDF520 Edgebander

Edgeband thickness 0.4 - 8 mm (0.016" - .312")
Coil cutoff maximum 1.0 x 55 mm
3.0 x 45 mm (PVC)
Edgeband height 12 - 55 mm
Panel length min. 160 mm (6 3/8")
Panel width min. 65 mm (2 3/8")
Panel thickness - min. 8 mm (5/16")
- max. 50 mm ( 2" )
Feed speed 14 m/min (46 FPM)
Feed motor 2.2 kw (3 HP)
Joint trimming - two motors 2.2 kw ( 3 HP each motor )
Cutting speed 12,000 RPM
Pressure section First roller driven, two rollers idle
End trim unit - two motors .18 kw (1/4 HP)
Cutting speed 12,000 RPM
Straight cut max. 8 x 45 mm (5/16" x 1 3/4")
Fine trimming unit .55 kw (3/4 HP ea)
Cutter speed 12,000 RPM
Electronic frequency invertor
Total power required 9 kw
230 volt electrics - 50 Amps
Machine length 4270 mm
Machine width 1730 mm (68")
Working height 900 mm (35.5")
Total height 1600 mm (63")
Machine net weight (with all stations full) 1800 kg (3960 lbs.)

Note: There may be some variances in the above features.
