50 HANDLINGSYSTEMSROACH 4STATION SEND RETURN CONVEYOR INSPECTION SYSTEM

MA ID:	MHC - 8986
Status:	Sold
Price:	$11,500.00
Category:	Conveyors
Manufacturer:	Roach Conveyors
Condition:	Good
Electric:	480 Voltage 60 Cycle 3 Phase

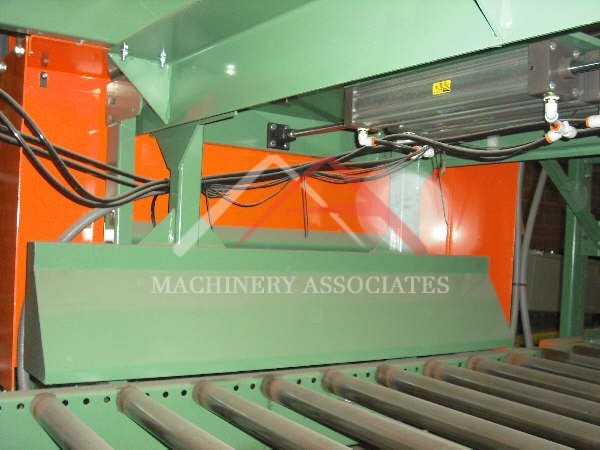

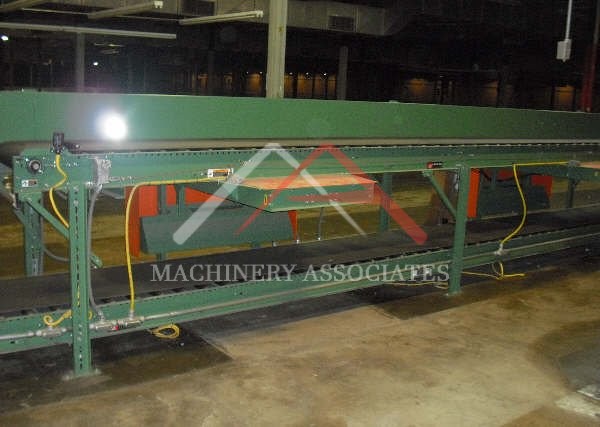

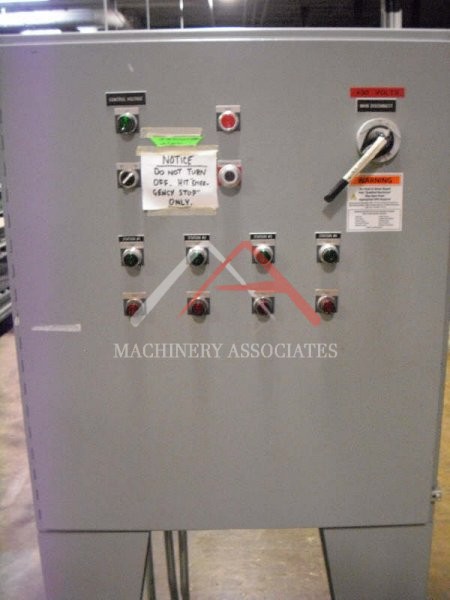

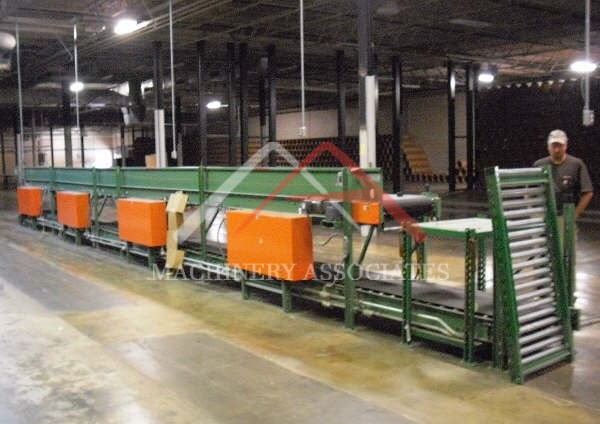

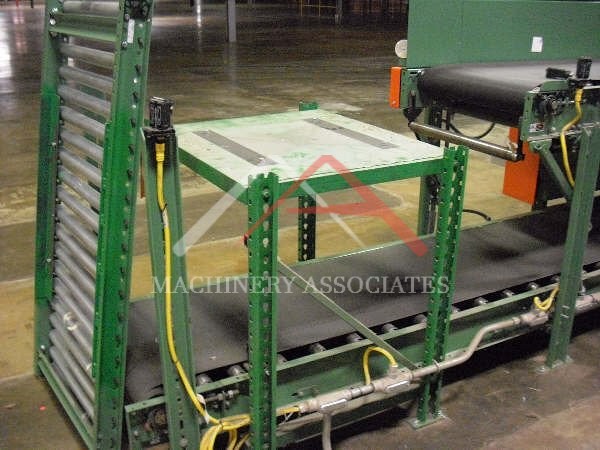

50' HANDLING-SYSTEMS/ROACH 4-STATION SEND & RETURN CONVEYOR INSPECTION SYSTEM (480/60/3 electrics), S-4047 This system was originally designed for cloth inspection, but can be used in a production or packaging application as well. The lower conveyor "sends" product to 4-work stations where the product is pushed off laterally for inspection & the upper conveyor "returns" the product after inspection. General Specifications: - Semi-automatic system controls with electric eye sensors & switches - Station occupied/full lights & (4) push-type station send buttons - End of conveyor load/unload area, (5' roller conveyor) - 26" wide lower send conveyor with 26" wide upper return conveyor - 15" lower conveyor & 48" upper conveyor working height, (25" between) - (2) 1 HP, 208-230/460/60/3 drive motors, (one per conveyor) (gear-box/chain sprocket driven conveyor belts) - 12" tall back-stop on upper conveyor - (4) 4' wide "kick-off" stations on lower conveyor - (2) double-acting pneumatic push cylinders per "kick-off" station - Missing unroll/roll inspection systems at each station - Separate remote control cabinet with station lights & push-off controls - Emergency-stop pull hand cable - 60' x 48' x 5' approx. overall dimensions of conveyor system - Currently disassembled into 2 pieces ready for loading - 36" x 16" x 68" approx. overall dimensions of control panel - Weighs approx. 4,000 lbs.
Shipping Footprint:	60' (length) x 48" (width) x 5' (height)
Weight:	5000 lbs
