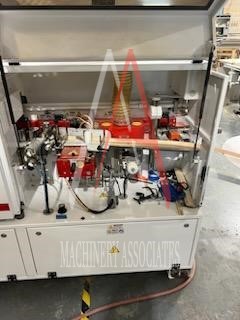

Cehisa FLEXY P Edgebander
2019 Cehisa FLEXY P Edgebander
| MA ID: | EBS - 13466 |
| Status: | Sold |
| Price: | $21,900.00 |
| Category: |
Edgebanders -Single Sided |
| Manufacturer: | Cehisa |
| Model: | FLEXY P |
| Year of Manufacture: | 2019 |
| Condition: | Very Good |
| Electric: | 230 Voltage 60 Cycle 3 Phase |
|
Cehisa Edgebander
Specifications: Edgebanding material Melamine, PVC, Polyester, Wood, Formica Working speed 5.5 mts/min. (18ft/.min.) Thickness of edgebanding 0.4 – 2mm (0.016”-0.12”) *3mm up to 23mm (7/8”) Thickness of the panel 8 – 50 mm (0.31”-1.96”) Min. Length of the panel 120 mm (4.72”) Min. Width of the panel 75 mm (2.95”) Electrical connection 3phase x 220V / 60 Hz Amperage 10 amps Dust extraction 4¾ “ outlet @ 1200 cfm Compressed air connection 5 cfm @ 90 psi Dimensions 3065x630x1370 mm (121”x 25”x 54”) Net weight 670 kg. (1,477 lbs.) FEATURES: CONTROL PANEL 5,6” Robust 5,6” TFT colour touch LCD with LED backlighting, multi-language support and 128 Mb of memory for storage of screen data and job programs. FEEDING STATION Timer controlled automatic feed allowing the precise adjustment of the in-feed surplus and minimizing the waste of edging material. Pneumatic pre-cut guillotine (fit for PVC/ABS edges of up to 3 mm thickness). PRE-MILLING STATION It is powered by two HF motors. One has a 1,1 kW (1.5hp) motor, rotating CW and the second has 0,75 kW(1 hp), rotating CCW. Both motors have pneumatic pressure control and provide optimum finish. Milling heads with welded DIA bits. The standard tooling specifications is: ø60 ø20 H30 (1.18”) Z6; GLUE POT UNIT New design with improved thermodynamics, granting a shorter heating time with less power consumption. Automatic temperature control by electronic thermostat preventing the scorching of the glue when the machine is idle. Full TEFLON® coating of the whole assembly. Power consumption 2,5 kW Heating time 10 min Capacity 1,5 Kg. (3.3lbs) END TRIMMING STATION Engines power 0,21 kW (.28hp) Saws rotation speed 12.000 rpm Saw disk 100 x 32 x 3 mm (Z30) (3.94” x .26” x 0.12”)
TOP AND BOTTOM TRIMMING STATION This station has 2 separate units for trimming off the excess edging material along the upper and the lower edges of the panel. It has horizontal and vertical tracers with SIKO digital readouts for easy and precise adjustment. The two independent units are equipped with milling cutters. It also includes roller type tracers for work with high gloss and 3D effect panels and edges. Engines power 0,27 kW (.36hp) Rotation speed of the cutter heads 12.000 rpm Milling cutters size 65 x 20 x 20 mm (Z4) R2 (2.56”x.79” x.79” ) |
|
| Shipping Footprint: | 121 (length) x 25 (width) x 54 (height) |
| Weight: | 1500 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
