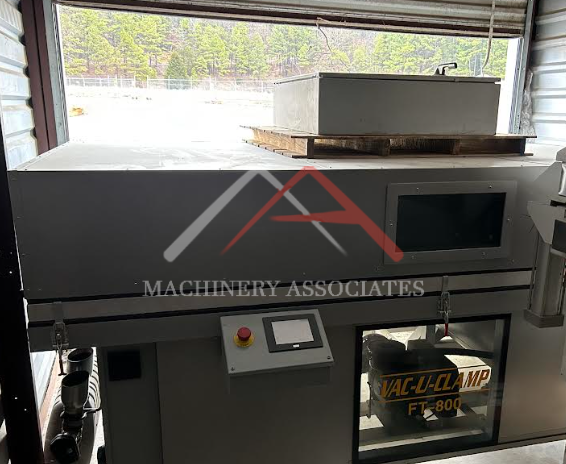

VAC-U-CLAMP FT 800 SHELL STYLE THERMOFOIL HOT PRESS

VAC-U-CLAMP FT 800 SHELL STYLE THERMOFOIL HOT PRESS. COMPACT DESIGN FOR SMALLER SHOPS.

MA ID: PRH - 13328
Price: $15,500.00
Category:

Presses - Hot

Presses - Membrane/Vacuum

Manufacturer: VAC-U-Clamp

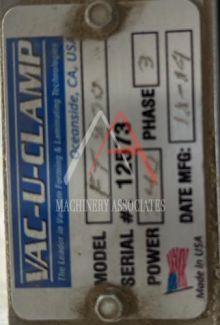

Model: FT 800
Year of Manufacture: 2014
Condition: Very Good
Electric: 230 Voltage 60 Cycle 3 Phase
GREAT OPTION FOR HOT VACUUM THERMOFOIL PRESS WITH SMALLER FOOTPRINT; WITH 50" X 105" PRESS AREA. GREAT CONDITION. 4 SIDED WRAPPING.

PRESS DIMENSIONS: 50" X 105" WORK AREA

CURING TIME: 6-8 MINUTES  BASED ON FOIL THICKNESS

HEATING/VACUUM UNIT: 24,000 WATT QUARTZ INFARED HEATING ELEMENTS. 17 CFM OILED VACUUM PUMP WITH 30 GALLON TANK.

TABLES/HOOD: ZINC PLATED STEEL PLATEN WITH RASY REMOVAL FOR CLEANING. RIGHT TO LEFT WORKING AREA. EASY LIFT HOOD WITH 2-3" MOUNTED AIR PISTONS.

CONTROLS: PLC CONTROLS WITH COLOR EASY TO MANUEVER THROUGH THE SETTINGS (SEE VIDEO). 5 STORAGE BINS. INFARED THERMOCOUPLE FOR TEMP ACCURACY. TEMPERED GLASS WINDOW FOR VIEWING PRODUCT DURING PRESS.




Shipping Footprint: 16 (length) x 7 (width) x 6 (height)
Weight: 2000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
