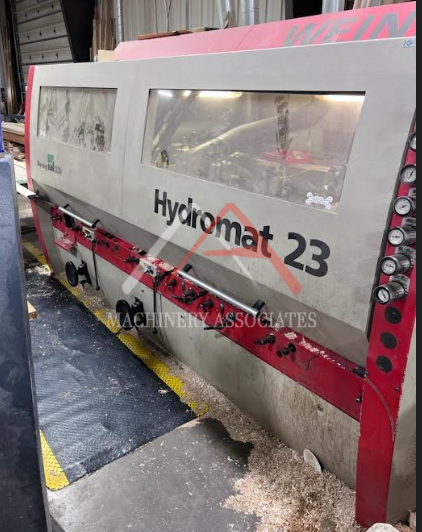

WEINIG HYDROMAT H23/004 JOINTED MOULDER FEED THROUGH

WEINIG HYDROMAT H23/004 JOINTED MOULDER FEED THROUGH. THIS IS A HEAVIER MACHINE EXECUTION THAN THE H23C.

MA ID: - 13315
Status: Sold
Price: Call For Price
Category:

Moulders

Manufacturer: Weinig
Model: H23/004
Year of Manufacture: 2003
Condition: Good
Electric: 460 Voltage 60 Cycle 3 Phase
GREAT HD MACHINE FOR YOU HIGH SPEED APPLICATIONS. 200 FPM JOINTED WITH HEAVT HP. TONS OF CUTTERHEADS. iDEAL FOR S4S AND PROFILING HIGH PROD

Spindle configuration: (B-R-L-T-T-B)

Working cap:  9- 1/16" x 4-3/4”

Motors: B-25 HP, R-15 HP, L-15 HP, T-30 HP, T-20 and B-20 HP.

Spindles: Dia. 2-1/8" at 6,000 RPM’s with mechanical digital readouts all spindles. Including pneumatic chipbreakers and pressure elements. Outboard bearings on spindles 1,4,5 and 6. Pedestal for spindle controls. Straight knife jointer spindles #1,4,5 and 6. Profile jointer's pneumatic on spindles 2,3,4,5 and 6.

Feed: Variable speed from 20-200 FPM; 15 HP motor. Remote pedestal with control panel for material handling operation. HD infeed with 2 rollers above and 1 roller below at infeed. Powered table rollers (4) total; (1) at infeed (serrated), (1) prior to right spindle between top spindles and (1) at outfeed.

Tables: Infeed table 32" with side pressure roller;  pneumatic side pressure roller prior to right spindle;  Auto-table lubrication pump. Chromed tables and fences.

Cabinets: Control cabinet with 10M cable and operating pedestal with 3.5M cable. Machine prepped with 2 plugs for WUSA/MSL infeed connections.

Includes: Manuals, set up tools, and approx. 100 Hydro-lock heads mostly (6) wing.


Shipping Footprint: 22 (length) x 7 (width) x 7 (height)
Weight: 14000 lbs
