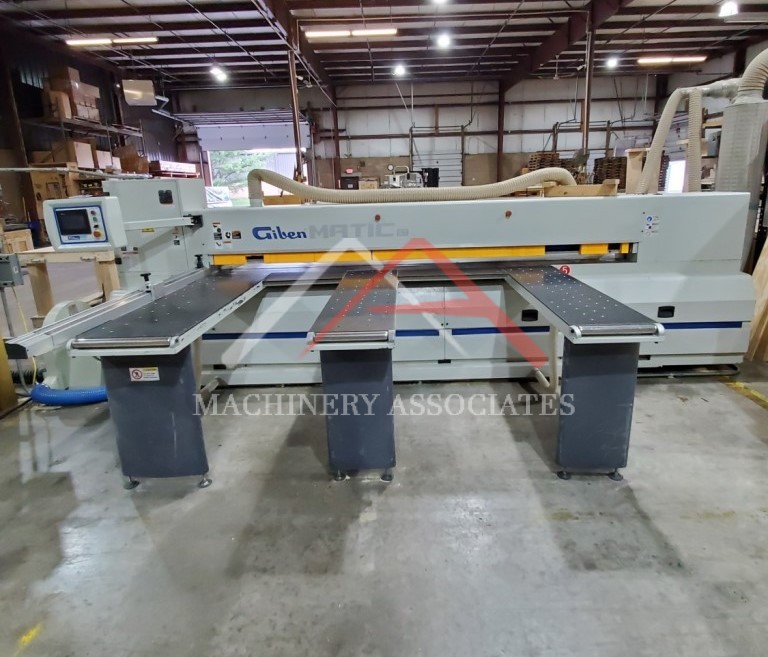

Giben Matic ST 3300 Panel Saw

GREAT MACHINE! Ready to work.

MA ID: PNC - 13273
Status: Sold
Price: $21,000.00
Category:

Panel Saw - CNC

Manufacturer: Giben
Model: ST 3300
Year of Manufacture: 2006
Condition: Very Good
Electric: 220 Voltage 60 Cycle 3 Phase
Giben Panel Saw

Specifications:

Length of cut 3300 mm

Saw blade projection 60 mm

Main blade diameter 300 mm

Main motor 7.5 Hp

Main saw blade RPM 5700

Scoring saw diameter 120 mm

Scoring motor .75 Hp

Scoring saw blade RPM 7200

Saw carriage transmission Rack & Pinion

Saw carriage feed speed 5-35 m/min

Saw carriage return speed 35 m/min

Bottom extraction point diameter (Qty 1) 100 mm

Top extraction points diameter (Qty 2) 100 mm

Compressed air supply pressure Min 4 bar ~ Max 6 bar

Compressed air consumption Max 30 liters/min

Dust extraction required 1140 liters/sec (2630 CFM)


Shipping Footprint: 20 (length) x 20 (width) x 8 (height)
Weight: 25000 lbs
