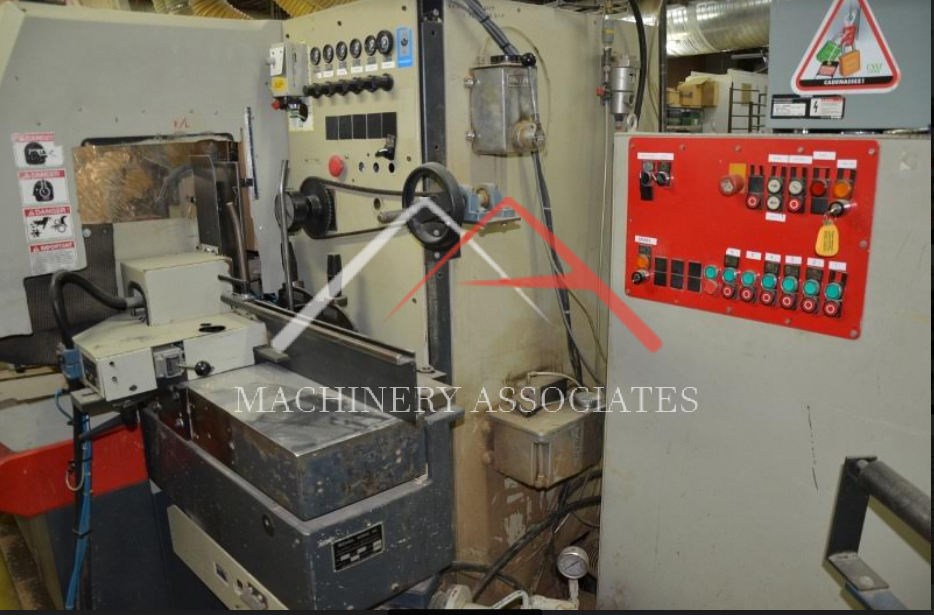

WEINIG HYDROMAT 23/002 JOINTED MOULDER THROUGH FEED

MA ID:	MFT - 12024
Status:	Sold
Price:	$34,950.00
Category:	Moulder - Feed Through
Manufacturer:	Weinig
Model:	H23
Year of Manufacture:	2001
Condition:	Good
Electric:	600 Voltage 60 Cycle 3 Phase
Weinig H23 jointed with feed speed up to 120 FPM. Includes EM 11 hopper feeder for stock up to 2.5m (96"). Canadian electrics and 50MM spindles Spindle configuration: B-R-L-T-T-B Working cap: 9-1/16” x 4-3/4” Motors: B-7.5 kW (10 HP), R-11 kW (15 HP), L-7.5 kW (10 HP), T-15 kW (20 HP), T-15 kW (20 HP) and B-11 kW (15 HP) HP. Spindles: Dia. 50 MM at 6,000 RPM’s with "METRIC" mechanical readouts all spindles. Including pneumatic chipbreakers left and top. Outboard bearings on spindles 4 , 5 and 6. Profile jointers on heads 2-6; self indexing. Feed: Variable speed from 6 to 40 MPM (20-120 FPM); 11 kW (15 HP) motor. Powered rollers (2) from top and (1) bottom roller prior to first bottom. Additional roller after last bottom. Tables: Infeed table 4'0" with (2) pneumatic side pressure rollers; Auto table lubrication pump. Includes: Manuals, set up tools and heads. 2001 WEINIG EM 11 hopper feeder for parts up to 2.5m (96"). Tooling approx:(25) hydro-heads with 50mm bore.
Shipping Footprint:	18 (length) x 7 (width) x 7 (height)
Weight:	12 lbs

All Information including Photos and Videos are supplied by a 3rd party Source.
Some photos may show tooling. Tooling is never included in the listing unless otherwise noted in the description.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.

WEINIG HYDROMAT 23/002 JOINTED MOULDER THROUGH FEED

WEINIG HYDROMAT 23/002 JOINTED MOULDER THROUGH FEED

Moulder - Feed Through

Spindle configuration: B-R-L-T-T-B

Working cap: 9-1/16” x 4-3/4”

Motors: B-7.5 kW (10 HP), R-11 kW (15 HP), L-7.5 kW (10 HP), T-15 kW (20 HP), T-15 kW (20 HP) and B-11 kW (15 HP) HP.

Spindles: Dia. 50 MM at 6,000 RPM’s with "METRIC" mechanical readouts all spindles. Including pneumatic chipbreakers left and top. Outboard bearings on spindles 4 , 5 and 6. Profile jointers on heads 2-6; self indexing.

Feed: Variable speed from 6 to 40 MPM (20-120 FPM); 11 kW (15 HP) motor. Powered rollers (2) from top and (1) bottom roller prior to first bottom. Additional roller after last bottom.

Tables: Infeed table 4'0" with (2) pneumatic side pressure rollers; Auto table lubrication pump.
