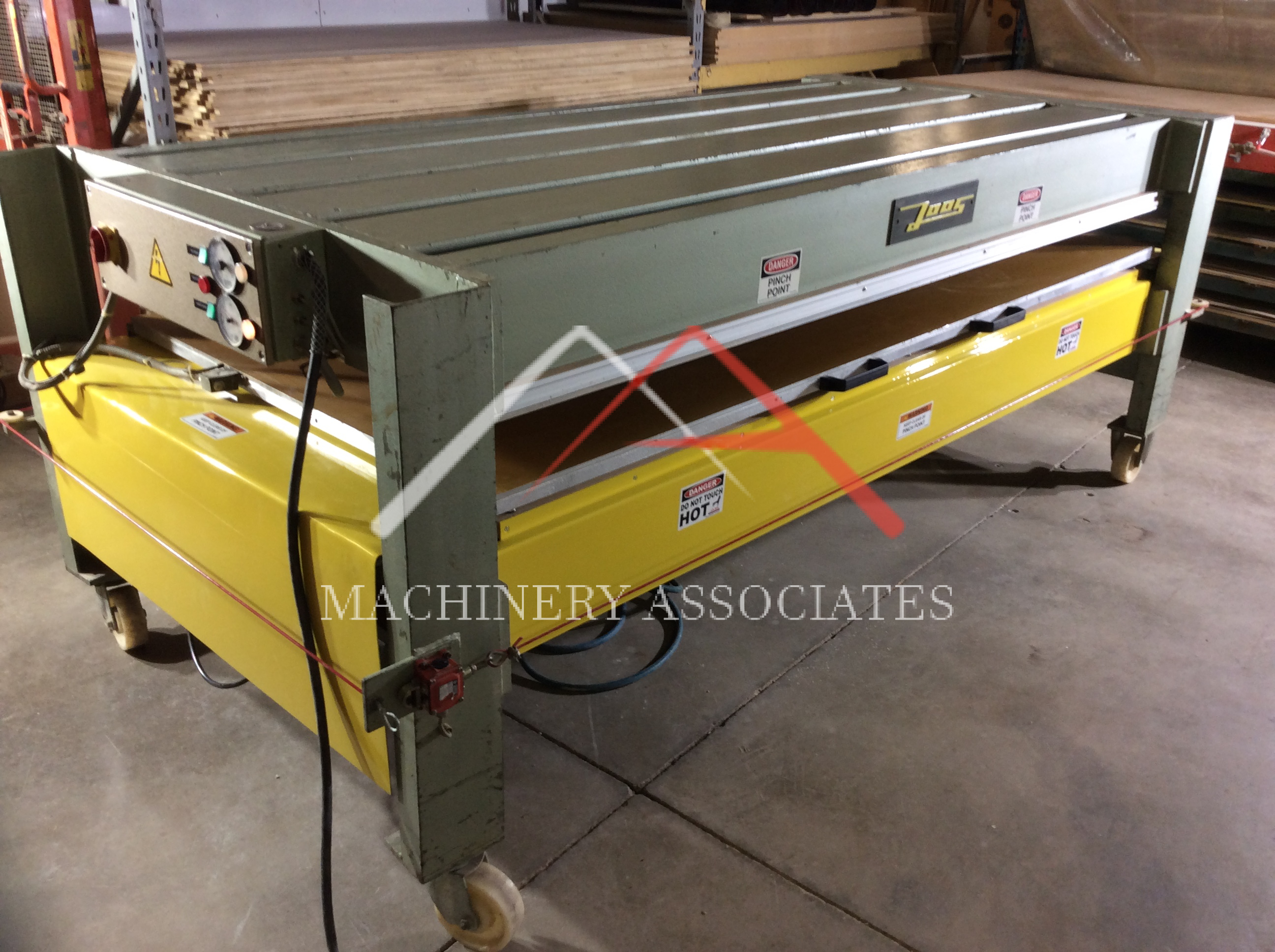

JOOS JR HOT PRESS

MA ID:	PRH - 11969
Status:	Sold
Price:	$14,500.00
Category:	Presses - Hot
Manufacturer:	Joos
Model:	Junior
Condition:	Good
Electric:	220 Voltage 60 Cycle
Total pressing surface 49.2 in. x 98.4 in. Specific Pressure @ full load 2 kp/cm2 Type of pressure: 14 flexible pressure tubes two layers TUV controlled Height of press space 120mm (4.75 inches) Closing time 4-10 seconds Pressing time (varies) 2-7 min. (2 sides) Timer micro chronometer Stroke 120mm ELKOM electric platen 1 top 1 bottom Each surface hard gold anodized 2500 X 1250 X 9mm Normal operating temperature Up to 120°C Heater Controls 2 each thermostat control Overall dimensions 2800mm long (110 inches) 1450 mm wide (57 inches) Height of press (with wheels) 1120mm (44 inches) Net Machine Weight 2460 KG (5,412 LBS) Power Consumption 28 AMP Pneumatic connection 3/8 NPT 6 bar

All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
