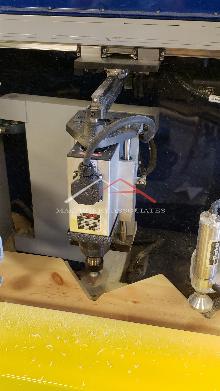

US Concepts CSR-750CNC Automatic CNC Stair Router

CALL FOR AVAILABILITY

The CSR-750CNC Stair Router is designed for high speed precision trenching and open stair cuts. To make the operation of this machine as easy as possible for use by any operator, the CNC unit is pre-programed for most stair routing applications. However, the CSR-750CNC still retains full capability of programming using standard CNC codes.

The operator simply chooses the stair style from the 5 preprogrammed styles, enters the rise, run and number of stairs, insert the pair of boards and then presses the Cycle Start button. Two high speed router motors simultaneously route both the left and right hand stringers with dovetail bits from above and below the boards. One of the 5 preprogrammed styles included is the capability of cutting the open stringer and open stringer with 45ï‚° miter riser relief (changing of the top & bottom router bits is necessary).

Standard Features:
· Heavy Duty construction with Cast iron main arms and walls
· Welded base frame filled with concrete for vibration damping
· FAGOR CNC 8055i/A 3-axes control package
· Networking, and remote data entry and supervision
· Standard programs:
      o Standard Box Step with Round Nose
      o Blunt Nose with Rake or Straight Riser
      o Open Pan Route with partial Riser or no Riser
      o Temporary Stair Route
      o Open Stringer
      o Open Stringer cut with 45° Riser relief
      o Two 5HP High speed router motors (12,000-18,000rpm)
      o Two adjustable speed drive controllers
      o Automatic board advance every cycle

Specifications:
· Electrical 230V, 3-phase, 45A
· Max material width 14”
· Material thickness: ¾” – 3-1/2”
· Tool shank capacity ¾”
· Max. feed speed 300 FPM
· Communication ports: RS232, USB, network
· Machine dimensions 94”L x 60”D x 64”H
· Weight approx. 4200 lbs
· Dust outlet 8”
· Collets (2) ½” ID & (2) – ¾” ID
· Set of Dove-Tail Router Bits (1) RH & (1) LH

Options:
1. Interior LED Light ........................................ $260.00
2. 460V electrical service ................................. $0.00
3. 575V electric .............................................. $1,280.00
4. 2-wing Brazed Miter Tool & ¾” Router Bit ....... $572.00
(For making open stringers. Other tool designs available.)
5. Crating for Domestic LTL shipment.................. $360.00
6. Export crating as per ISPM-15 ...................... $1,280.00
7. Factory Set-up, training & travel for (1) technician $900.00/day + all expenses (1/2 day
.. minimum charge)
