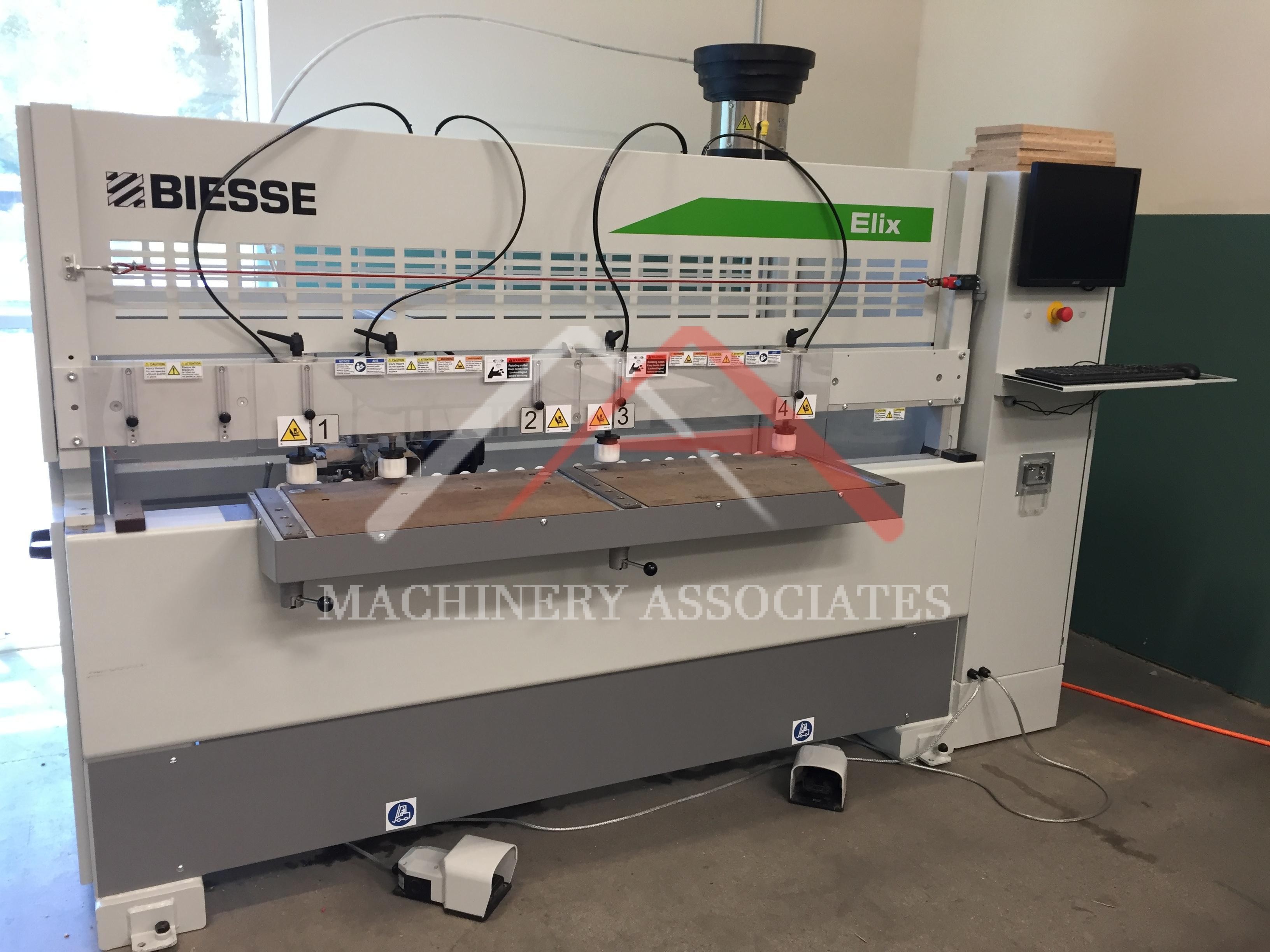

2017 Biesse Elix K3 CNC Drill Dowel Inserter

Set your programs up, and make yourself more efficient!!. The K# is the loaded up version of this machine.

MA ID:	BGD - 11458
Status:	Sold
Price:	$39,000.00
Category:	Bore/Glue/Dowel Point to Point
Manufacturer:	Biesse
Model:	K3
Year of Manufacture:	2017
Condition:	Excellent

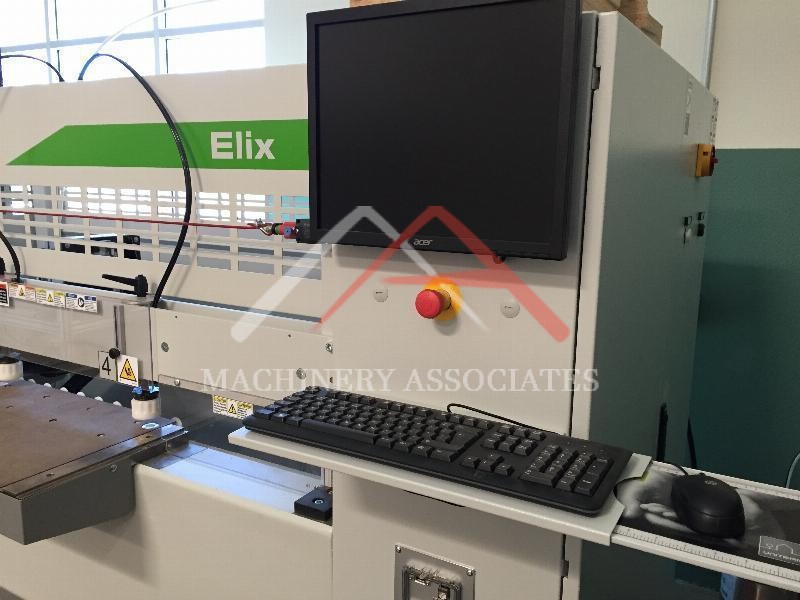

ELIX K3 CNC DRILLING & DOWEL MACHINE Panel Standard Dimensions: Max. Width: 1300 mm Thickness: 10-40 mm Min. Depth: 120 mm X Axis: Stroke: 1300 mm Head Movement Speed: 40m/min Z Axis Stroke: 40 mm Boring Unit: Rotation Speed: 6000 rpm Depth: 30 mm Max. Bits Diameter: 12 mm Manual Adjustment of Boring Depth Dowel Insertion Unit: The Smart-Shot Dowel Insertion Unit 2 Sensors Prevent Dowel or Glue Misfire. Standard Dowel Dim: 8x30mm Max. Dowel Projection: 14 mm Dowel Unloading System Glue System Glue Tank Capacity: 8 Lt Max. Glue Density: 900 cps Glue Electronic Proportioning Equipped with Glue Injector Sensor PC Driven Numerical Control: Personal Computer 512 MB RAM Memory; CD & HD 80 GB USB port 17" LCD Monitor Keyboard & Mouse Windows XP PRO Ethernet card; Serial line for barcode connection Software for barcode reader connection is preloaded. *Price includes packing and loading on a truck !*

All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
