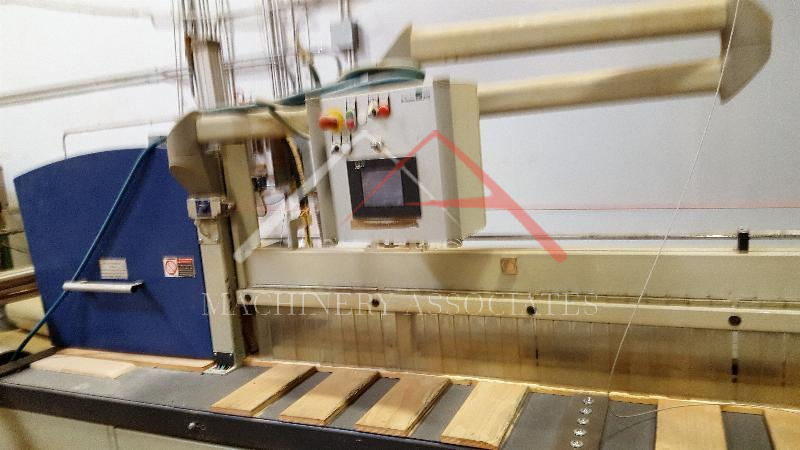

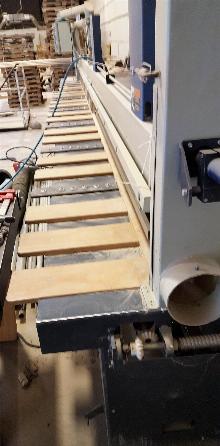

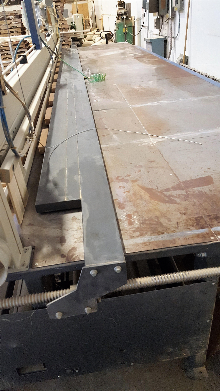

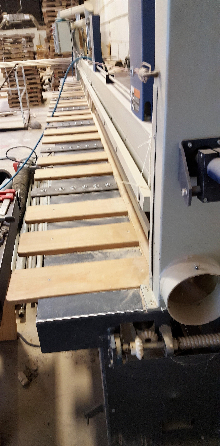

RAIMANN 5200 FLEXIRIP RIP CROSSCUT AND MITER
RAIMANN 5200 FLEXIRIP RIP, CROSSCUT AND MITER -Ideal machine for a pallet or packaging company. Multi use saw.
| MA ID: | RSL - 11024 |
| Status: | Sold |
| Price: | $24,950.00 |
| Category: |
Rip Saw - Single (straightline) |
| Manufacturer: | Raimann |
| Model: | F 5200 |
| Year of Manufacture: | 2004 |
| Condition: | Very Good |
| Electric: | 230 Voltage 60 Cycle 3 Phase |
RAIMANN 5200 FLEXIRIP RIP, CROSSCUT AND MITERMaterial is fixed as the blade travels with (2) pressure beams from above;pneumatically controlled for downpressure during cut; rear pusher rail for auto positioning of the workpiece. Working dimensions: Length 2'0" to 16'0"; width 1-5/5" to 48" and thickness to 4-3/4". Blade dia.: 16" - 21" with bore dia. 80 mm. 15 HP motor with 2980 RPM. Table: Rear table with pusher rail up to 48" wide material 0.75 HP. Includes RAIMANN "PROFACE" Touch Screen for PLC (SIEMANS) programming up to 100 programs. Remote foot pedal.
|
|
| Shipping Footprint: | 24 (length) x 7 (width) x 6 (height) |
| Weight: | 4800 lbs |
