Weeke BP150 CNC Point to Point wCaxis

Weeke BP 150, C-Axis Spindle, Big drill block, Second spindle.

MA ID: PTP-11460
Price: Call For Price
General Location: North East
Category:

Point to Point

Manufacturer: Weeke
Model: Optimat BP150
Year of Manufacture: 1999
Condition: Good

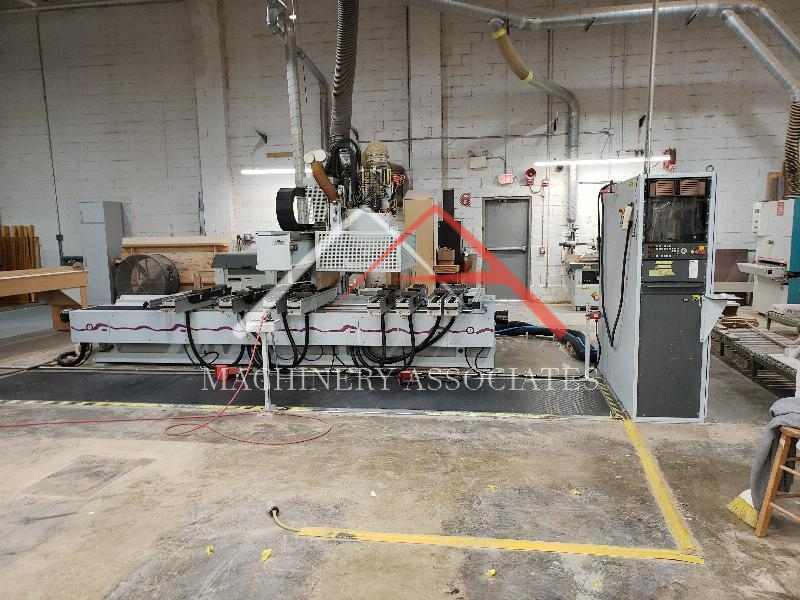

Weeke Optimat BP 150 Nice Point to Point CNC Router. This machine has the big drill block, a C-axis Spindle and an Aux. Spindle. Very convenient layout and well taken care of machine!





Router Spindle; 7.5 kW (10hp)

(power constant from 9000 rpm to 18000 rpm)

ATC Tool Magazine;  8 tools

Auxiliary router;  5 kW (7hp)

(non ATC, collet style)

Drill Block;

Number of vertical drilling spindles; 31

Vertical drilling spindle power; 1.5 kW (2hp)

Number of horizontal drilling spindles; 6

Horizontal drilling spindle power 1.5 kW (2hp)

Table;

Number of panel support (Rails); 8

Becker Vacuum pump capacity 100 M3/hr

Working length 3250 mm

Working width - support bench width 1200 mm

Max. panel thickness 100 mm (4”)

Max. drilling depth for through holes 38 mm (1.5”)

Axis stroke/positioning speed

 X-axis 4730 mm/80 M/min

 Y-axis 1685 mm/80 M/min

 Z-axis 280 mm/25 M/min



Machine weight 5500 kg

Shipping Footprint: 20 (length) x 8 (width) x 8 (height)
Rigger: Not Required
