CNC Routers > CNC Router (3-axis)

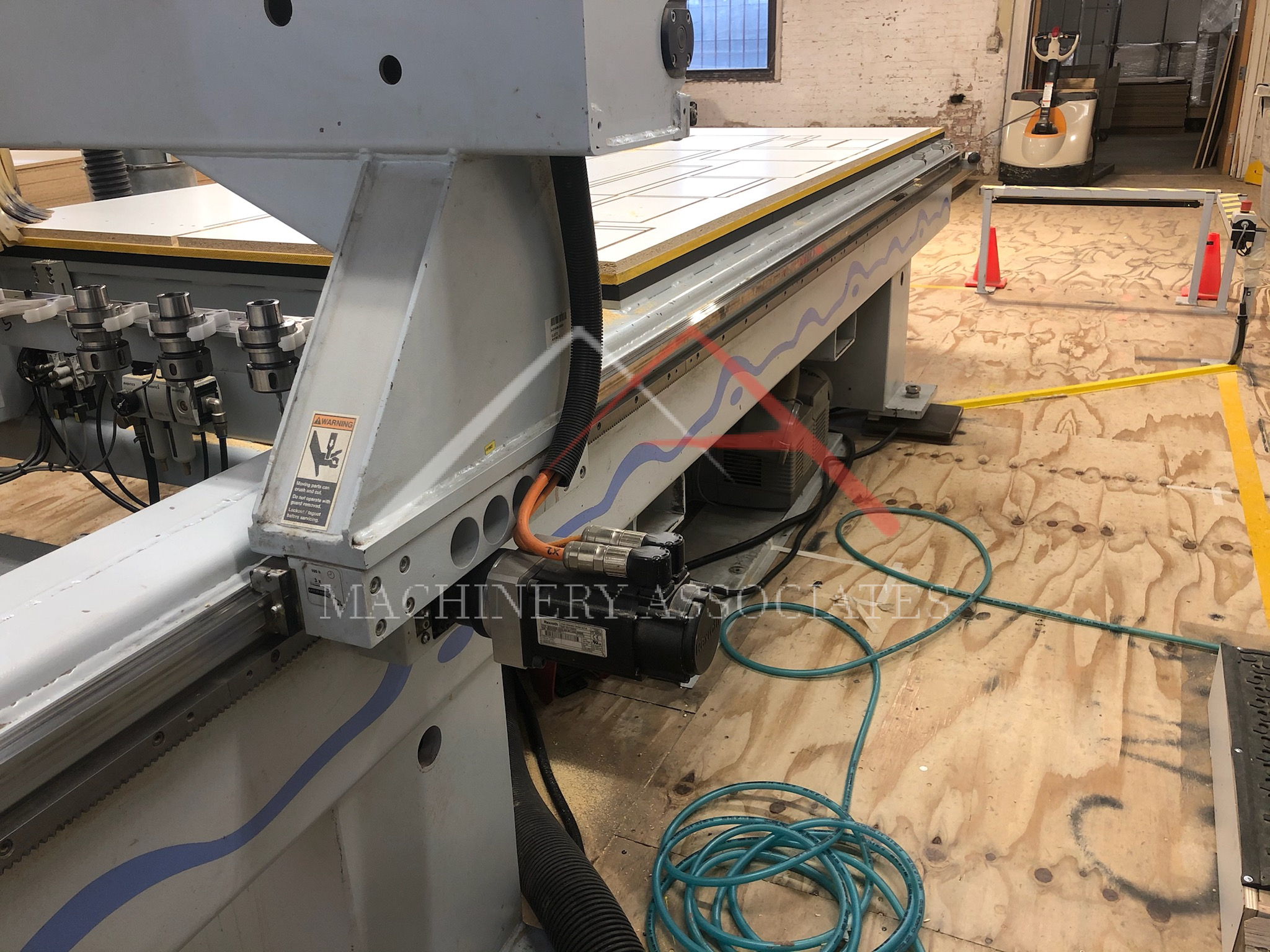

Weeke BHP 007 (5x10) Flat Table CNC Router

2008 Weeke Flat Table CNC Router!! Ready to ship!!

MA ID: RC3-12380
Price: $32,900.00 -or- as low as $664.91/mo.*
General Location: Atlantic
Category:

CNC Router (3-axis)

Manufacturer: Weeke
Model: Profiline BHP 007/510
Year of Manufacture: 2008
Condition: Good
Electric 480 volt, 60 cycle, 3 phase
2008 Weeke BHP 007 (5x10) Flat Table CNC Router





Specifications:

Table Size: 122″ x 61″

Maximum Workpiece Thickness: 100 mm

Spindle HP: HSD 12 KW (16 HP) HSK Toolholders

Router Spindle Speed: Programable - 1,250 – 24,000 RPM

10 Position Tool Changer (rack)

Automatic Tool Length Sensor

7 Position Drill Brank

Number of Pneumatic Pop Up Pins: 3

Positioning Speeds: 72 m/min (x), 62 m/min (y), 25 m/min (z)
X/Y Vector Speed: 96 m/min

Air Volume Requirements: 1900 CFM
Consumption Volume: 600/700 NL/min
Electrical: 480 V/ 3PH/ 60 Hz
Total Connected Load: 27.5 kW

4 Vacuum Pumps (432 m3/h)

Safety Light Curtains





Shipping Footprint: 16 (length) x 8 (width) x 8 (height)
Weight: 7500 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
