Boring > Bore/Glue/Dowel

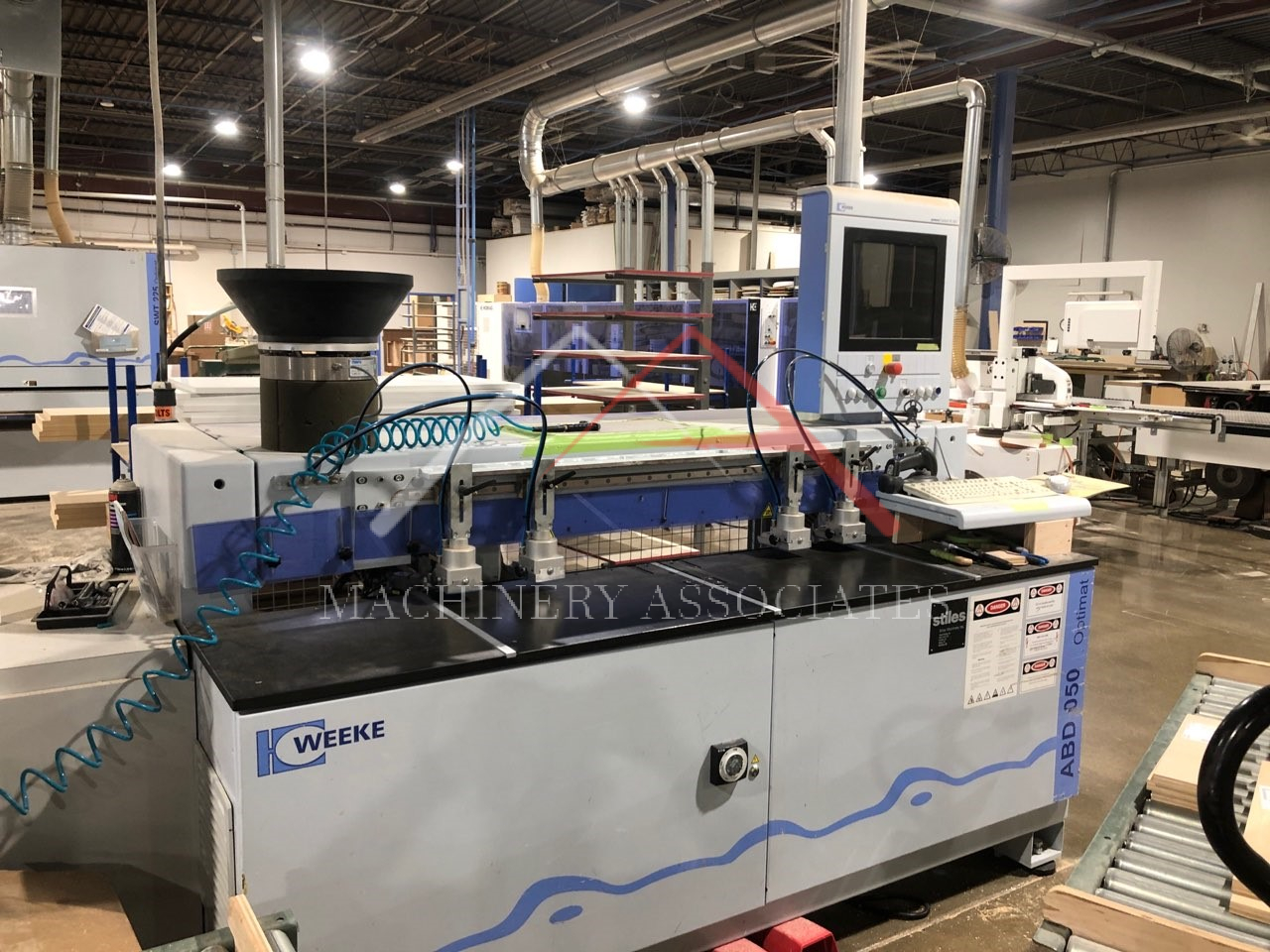

Weeke ABD 050 Bore/Glue/Dowel Insertion Machine

Weeke Bore Glue-Dowel insertion Machine. Its ready to go! Give us a call

MA ID: BGD-12379
Price: $25,750.00 -or- as low as $520.41/mo.*
General Location: North East


Manufacturer: Weeke
Model: Optimat ABD 050
Year of Manufacture: 2012
Condition: Very Good
Electric 460 volt, 60 cycle, 3 phase
Weeke Optimat ABD 050 Bore/Glue/Dowel Insertion Machine


CNC dowel inserter for horizontal drilling and dowel inserting

Engineered to spray glue or water

Features a Sorbtech™ main beam to minimize vibration

Pneumatic control of center stop and right and left fences

Open end table for machining parts longer than 48"

Vibrating hopper for automatic feeding of dowels

Larger 17" display and Woodwop™  programming


Technical Specs:

Maximum part length;   1250 mm / approx. 49.2²

Minimum part length;     20 mm / approx. 0.79²

Maximum part width;      800 mm / approx. 31.5²

Minimum part width;      50 mm / approx. 1.97²

Maximum part thickness;              60 mm / approx. 2.36²

Minimum part thickness;               10 mm / approx. 0.39²

Max part length for center stop;   600 mm / approx. 23.5²

Horizontal drilling aggregate;  one (1) spindle, 7,500 rpm

Standard dowel dimensions;        8 x 30 mm / 8 x 35 mm

Airfloat table

Drill shank diameter ;            10 mm

Total length of drill bit;    70 mm

Shipping Footprint: 101 (length) x 50 (width) x 6' (height)
Weight: 2500 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
