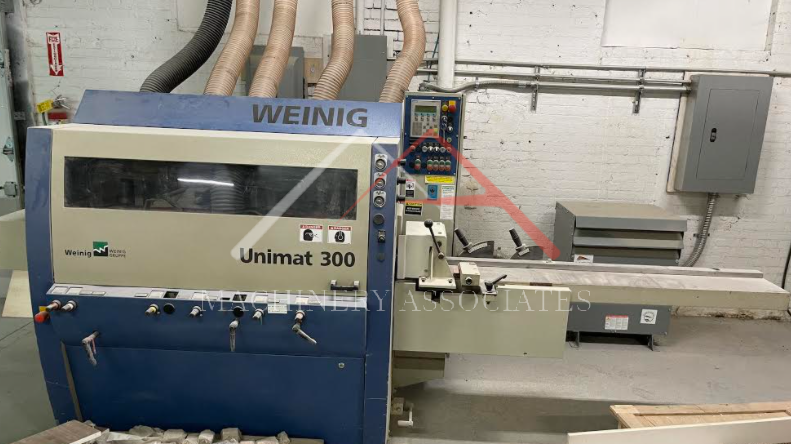

WEINIG UNIMAT 300/001 MOULDER AND GRINDER PACKAGE
WEINIG UNIMAT 300/001 MOULDER AND GRINDER PACKAGE
| MA ID: | MFT - 12494 |
| Status: | Sold |
| Price: | $29,900.00 |
| Category: |
Moulder - Feed Through |
| Manufacturer: | Weinig |
| Model: | UNIMAT 300/R950 |
| Year of Manufacture: | 2004 |
| Condition: | Very Good |
| Electric: | 460 Voltage 60 Cycle 3 Phase |
|
GREAT STARTER MACHINE WITH EXCELLENT HP, TOOLING AND A RONDAMAT R950 FOR SHARPENING. PROFILES INCLUDED.
UNDER CONTRACT

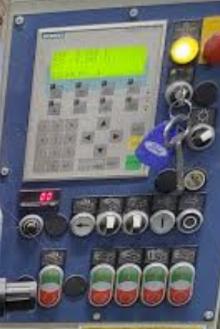

Spindles Configuration: B-R-L-T-B Working capacity: 9-1/16” x 4-3/4” Motors: Bottom 7.5 HP, Right / Left 10 HP, Top 15 HP and Bottom 10 hp. Spindles: Dia. 1-1/2” with rotation at 6,000 RPM. Digiset readouts for left and top spindles. Readouts on chipbreaker and hold down. Weinig ATS-E for profile dimension storage and positioning of left and top spinldes. Feed: Variable speed 1.5 HP (2) feed speeds 28 and 55 FPM. Infeed/Tables: 2 M (6’6’) infeed with side pressure roller. Antikick back device for splitting. Table plates at last bottom dovetailed with insert for splitting. Manual table lubrication pump. Includes: Profile knives, cutterheads, spacers and manuals. Anti-kickback device and heads as pictured. Measuring stand and balance scales. Additional rollers. Weinig Rondamat R950 Profile grinder. ideal for resharpening of profiles. Specifications: Working dimensions: Length 2" to 9-1/2"; cut circle 4" to 9". Grinding wheel speed 1500/1700/2400/3000 RPM. Grinding wheel 1.5 HP; Back clearance angle 15-35°; side clearance angle 0-12°. Coolant flood system with 3 gal. tank and 1.2HP pump. with 1-1/2" arbor. |
|
| Shipping Footprint: | 10 (length) x 7 (width) x 7 (height) |
| Weight: | 4500 lbs |
Please confirm all data before committing to a purchase.
