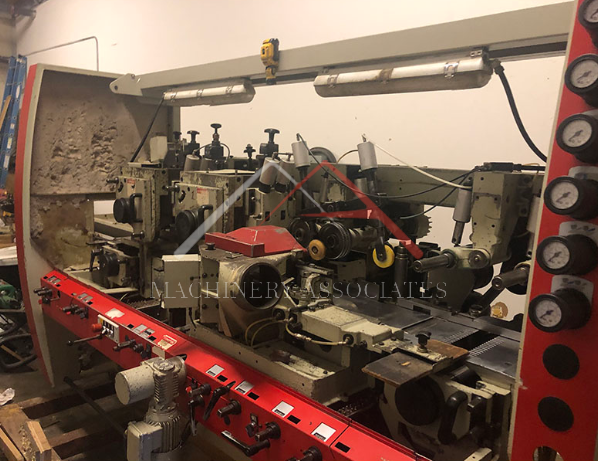

WEINIG H23C 002 JOINTED THROUGH FEED MOULDER

WEINIG H23C 002 JOINTED THROUGH FEED MOULDER

MA ID: MFT-12260
Price: $49,950.00 -or- as low as $1,009.49/mo.*
General Location: North East
Category:

Moulder - Feed Through

Manufacturer: Weinig
Model: H23C
Year of Manufacture: 2003
Condition: Good
Electric 460 volt, 60 cycle, 3 phase
LOOKING FOR THAT HIGH SPEED JOINTED WEINIG HYDROMAT 23C, HERE IS A GOOD UNIT RECENTLY OUT OF SERVICE. LOOKS TO BE IN OVERALL GOOD CONDITION

Spindle configuration: (B-R-L-T-T-B)

Working cap:  9-16" x 4-3/4”

Motors: B-15 HP, R-15 HP, L-15 HP, T-25 HP, T-25 and B-20 HP.

Spindles: Dia. 1-13/16" at 6,000 RPM’s with mechanical readouts all spindles. Including pneumatic chipbreakers and pressure elements. Outboard bearings on spindles 4,5 and 6. Pedestal for spindle controls. Profile jointer's spindles 2,3,5 and 6. Straight jointer on spindle #6 last bottom. WEINIG ATS-E for automatic adjustment of left and top spindles. 99 program for dimensional storage.

Feed: Variable speed from 20-200 FPM; 15 HP motor. Remote pedestal with control panel for material handling operation. Powered table rollers (3); (1) at infeed (serrated), (1) between top spindles and (1) at outfeed.

Tables: Infeed table 4'0" with side pressure roller;  Auto-table lubrication pump.



Shipping Footprint: 20 (length) x 7 (width) x 7 (height)
Weight: 12000 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
