WADKIN XE220 MOULDER PACKAGE WITH GRINDER AND FEED TABLES

WADKIN XE220 MOUODER PACKAGE WITH GRINDER AND FEED TABLES

MA ID: MFT-12266
Price: $29,900.00 -or- as low as $604.28/mo.*
General Location: Atlantic
Category:

Moulder - Feed Through

Manufacturer: Wadkin
Model: XE220 AND NNU VISAGE
Year of Manufacture: 1996
Condition: Good
Electric 460 volt, 60 cycle, 3 phase

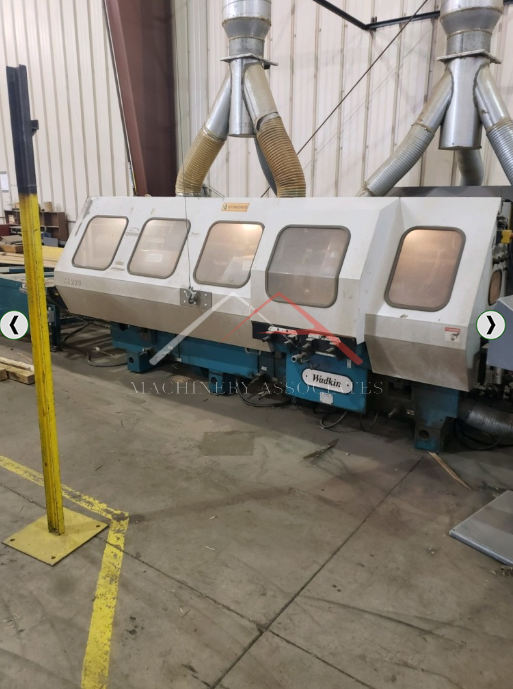

THESE JOINTED MACHINES ARE HARD TO FIND WITH THE HIGHER FEED SPEED.LOOK AT WHAT THIS PACKAGE INCLUDES MOULDER XE220, NNU GRINDER, INFEED AND OUTFEED TABLES AND PLENTY OF TOOLING!!



Spindle configuration: B-R-L-T-T-B

Working cap:  9-1/16” x 4-3/4”

Motors: B-10 HP, R-10 HP), L-10 HP, T-20 HP, T-25 HP and B-15 HP.

Spindles: Dia. 1-13/16"/16" RPM’s; mechanical readouts all spindles.  Outboard bearings on spindles 4 , 5 and 6. Profile jointers on heads 2-6; manual indexing.

Feed: Variable speed from 20-150 FPM; 10 HP motor. Powered rollers (2) from top and (1) bottom roller prior to first bottom. Additional roller after last bottom.

Tables: Infeed table 800 mm with (1) side pressure rollers; manual table lubrication pump.

INCLUDES: iNFEED AND OUT FEED TABLES, PROFILE GRINDER AND TOOLING AS SHOWN. MANUALS AND SET UP TOOLS.

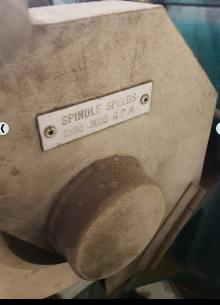

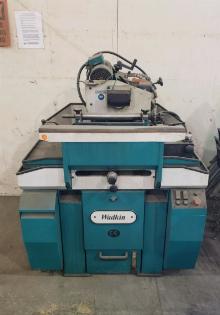

Grinder: Wadkin NNU 300 Unique Twin Grinding Head for Fast Change from Profile to Straight Grinding. Unique Turret Holder Accepts up to Six knife heads. Profile Grinding Motor: 2 HP Straight-Knife Motor: 1 HP Powered Tilt: .03 HP Max. Cutterhead Length: 13" Max. Cutterhead Diameter: 13.8" Minimum Cutting Circle: 2.75" Spindle Speed, Profile: 1500 - 3000 RPM Variable Spindle Speed, Straight: 3000 - 6000 RPM Coolant Pump: .12 HP 8 Gallon Coolant System Work Light.

Weight: 12000 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
