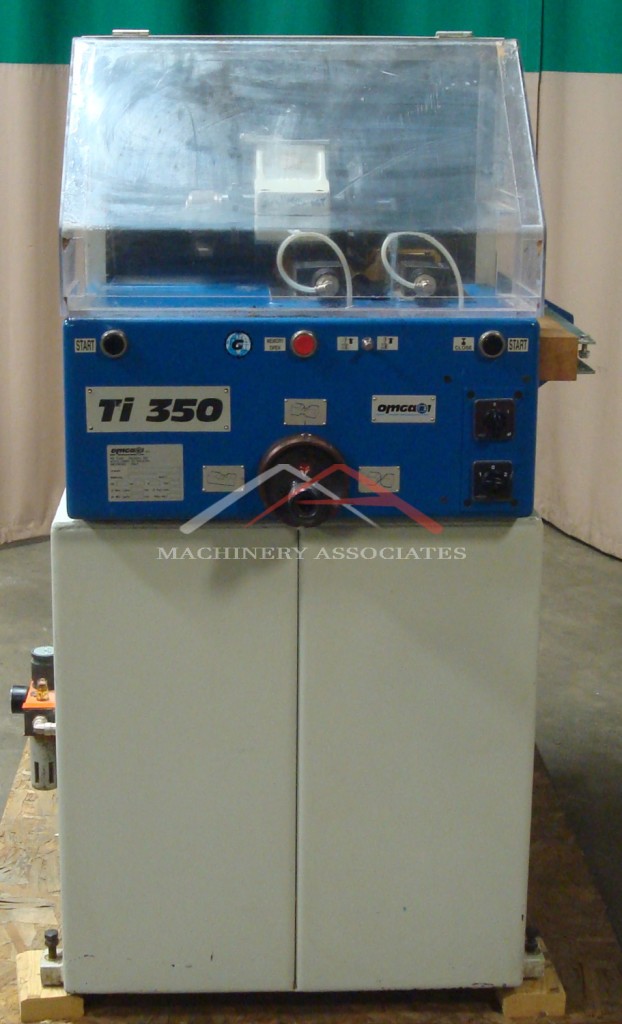

Used Omga Model TI350 1/2 Lap Notcher w/Omga Feed & Out Feed Bench

MA ID: SHA-8741
Price: $9,500.00 -or- as low as $191.99/mo.*
General Location: Atlantic
Category:

Auto copy shapers

Manufacturer: OMGA
Model: TI350
Condition: Fair

Used Omga Model TI350 1/2 Lap Notcher w/Omga FP4000 Feed & Out Feed Bench.

The Ti 350 is specially designed for any kind of grille for Colonial
windows, doors,
furniture frames, decorative panels and ceilings.
The machine is suited for working with three cutters (not included)
to notch the
three sides at the same time.
A movable stop, in the shape of a roller, enables a fast set up and
a precise
notch distance.
It is possible to work with the machine at an average rate of 8
cycles per minute.
A set of counter profiles prevent any chipping of the finished part.
The Ti 350 can also process the outside frame of the grill and
precut to length.
TECHNICAL SPECIFICATIONS:
Maximum moulding section 1 11/16 x 1 (43mm x 45mm)
Cutters 2 x 6 5/16 Diameter 1 x 10 Diameter
Bore 1
Arbor Speed 7800 6000 RPM
Motor HP 3HP
Dust chute 4 (120mm)
Overall dimension 44 x 52 x 51
Approximate weight 880 lbs
Set of three cutters with disposable HM Inserts

Shipping Footprint: 204 (length) x 48 (width) x (height)
Weight: 1355 lbs
