Used Grizzly Model G4185 Horizontal Boring Machine

MA ID: BH-10112
Price: $1,699.00
General Location: Atlantic
Category:

Boring Horizontal

Manufacturer: Grizzly
Model: G4185
Condition: Fair

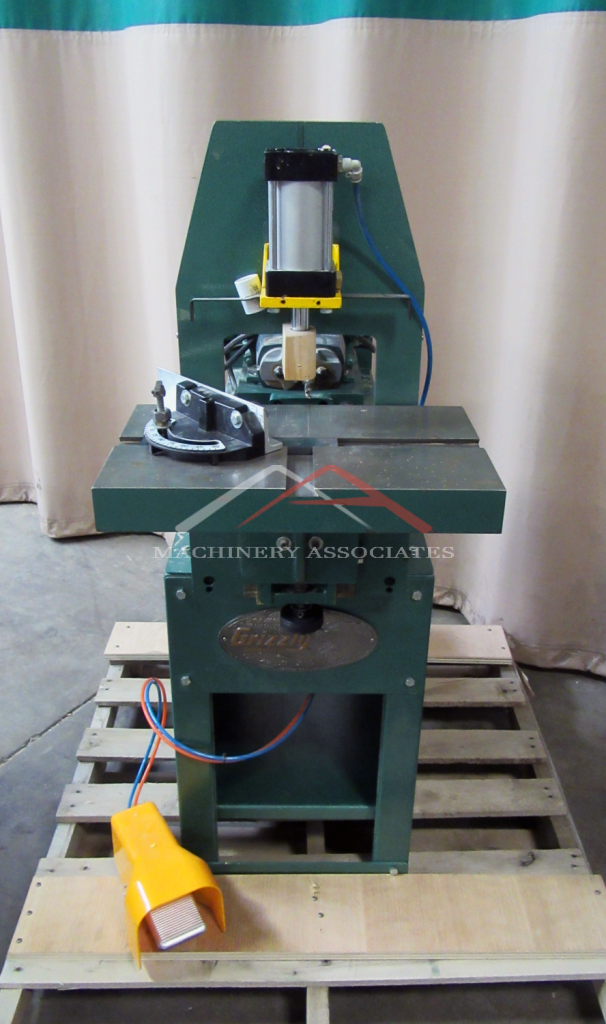

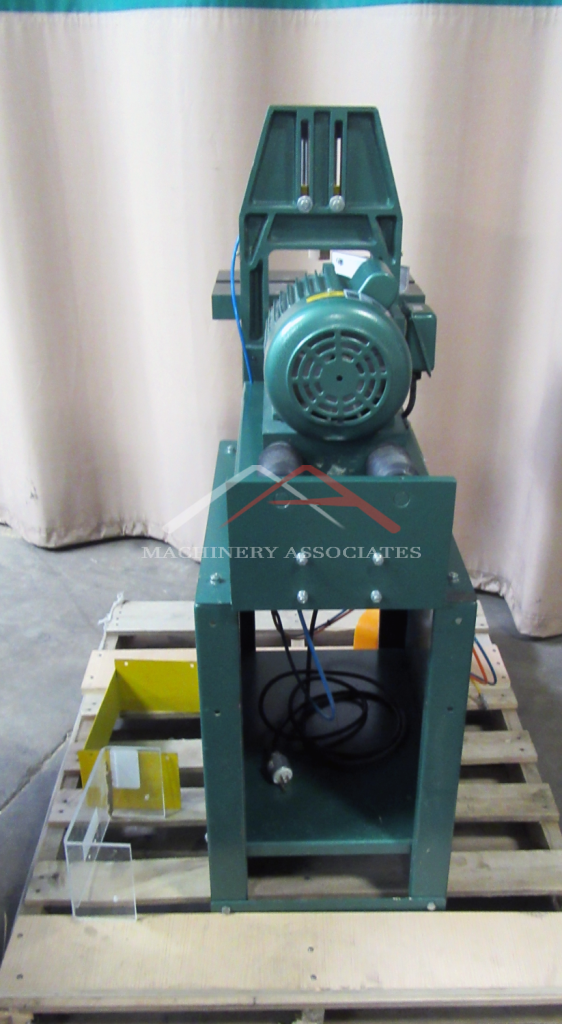

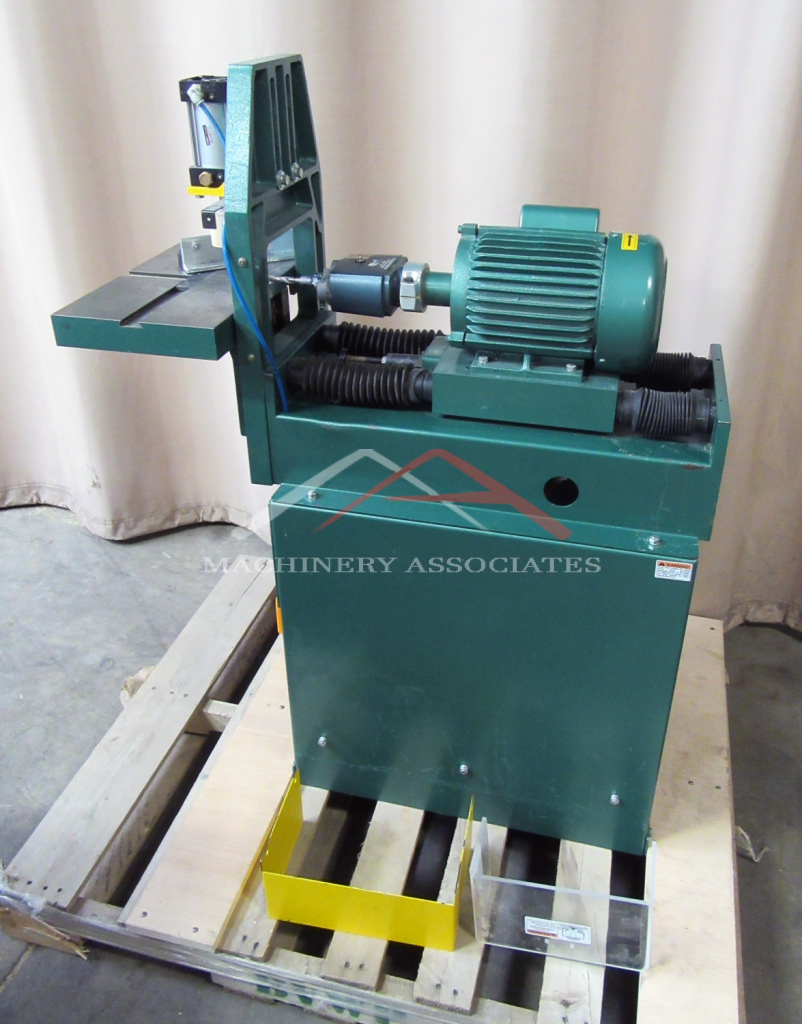

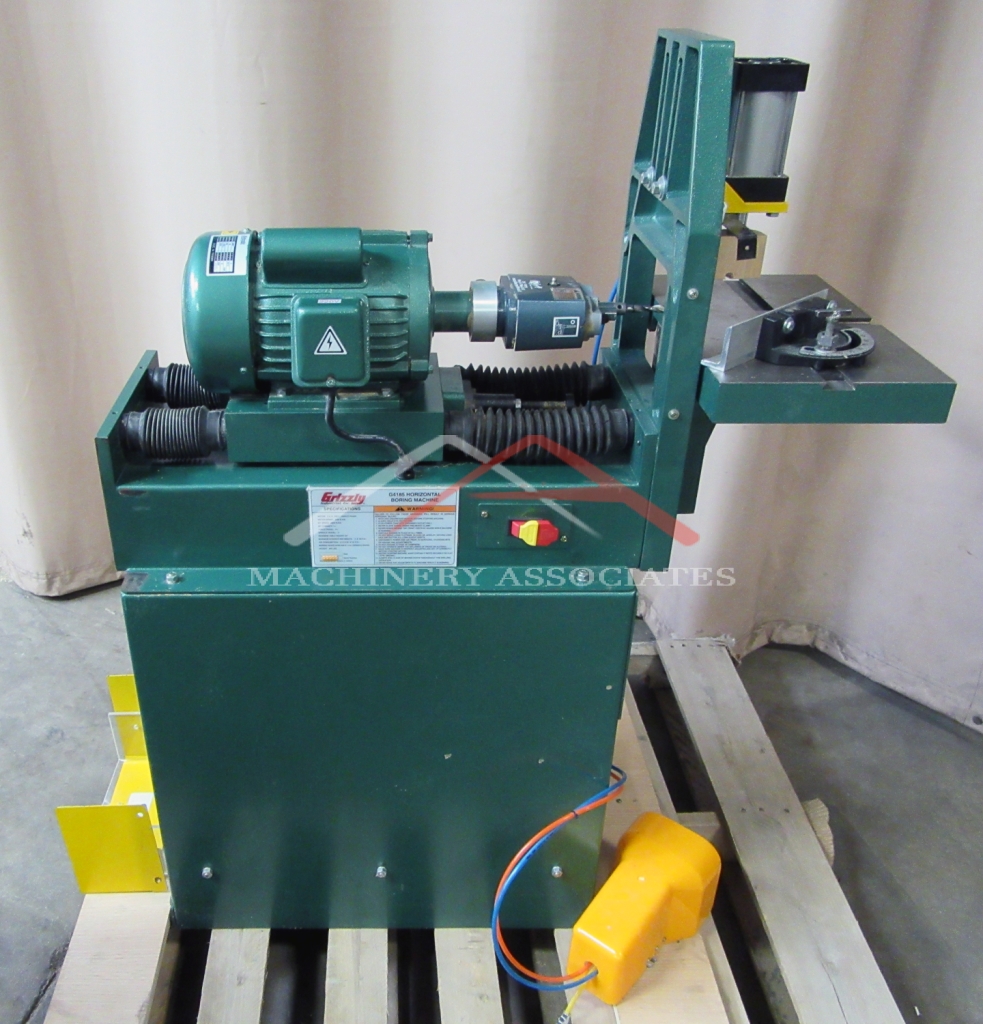

Used Grizzly Model G4185 Horizontal Boring Machine.

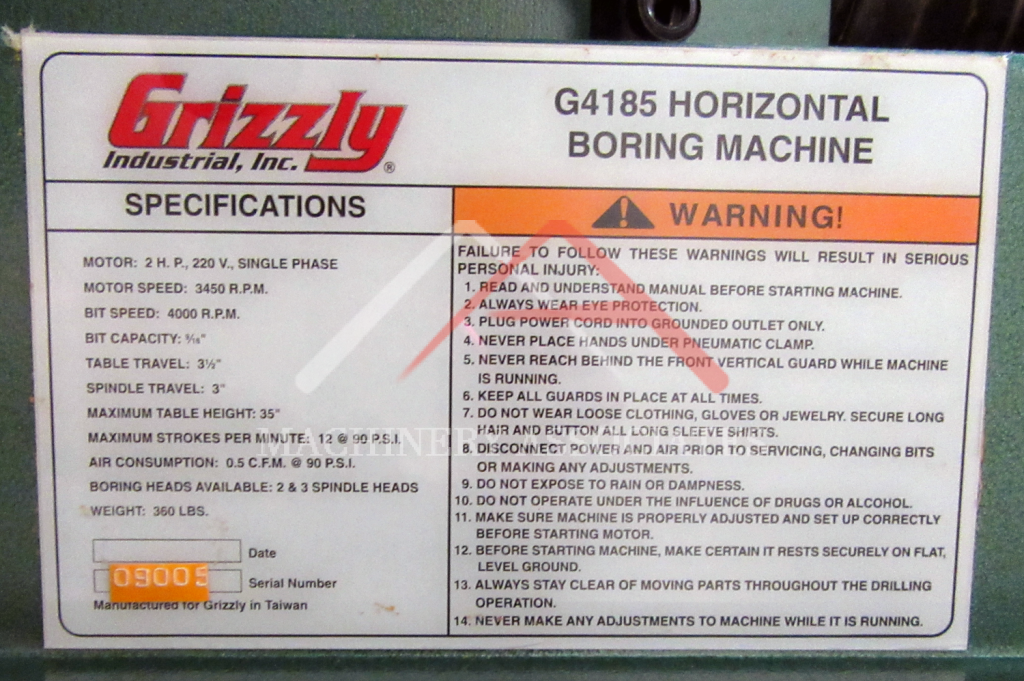

Specifications:

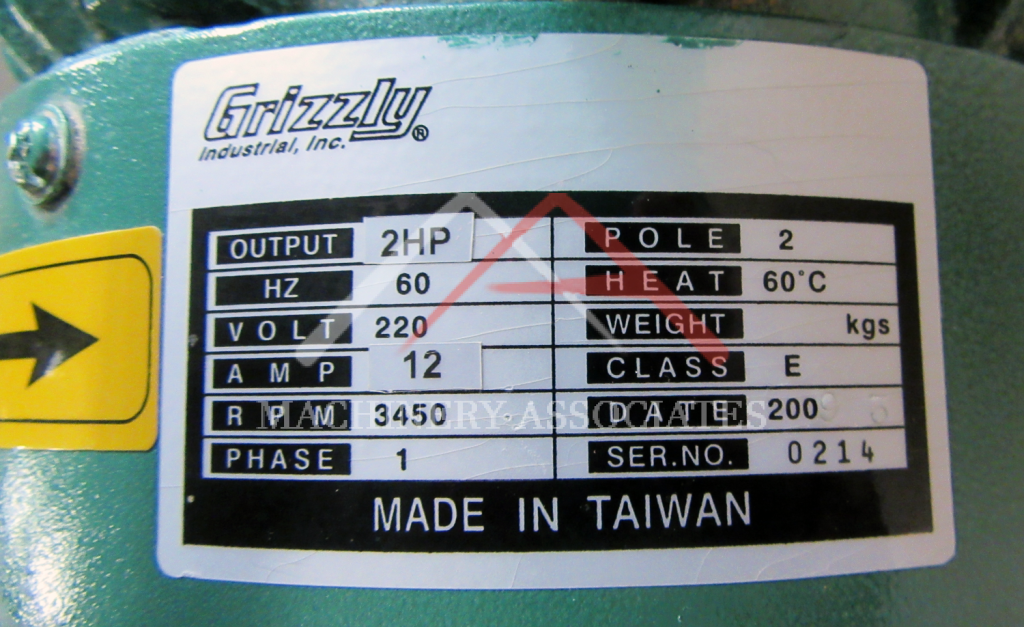

*Motor: 2 HP, 220V, single-phase, TEFC
*Amps: 12
*Table size: 15-3/4'' wide x 9-3/4'' deep
*Spindle travel: 3''
*Table travel, vertical: 3-1/2''
*Drill bit capacity: 9/16"
*Spindle speed: 3450 RPM
*Air consumption: 0.5 CFM @ 90 PSI
*Maximum SPM: 12 @ 90 PSI
*Overall size: 15" W x 47-1/2" H x 37-1/4" D
*Approximate shipping weight: 346 lbs.


Features:
*Precision-ground cast-iron table
*Dovetailed miter gauge and slot
*Pneumatic clamp and spindle travel
*Accepts RH threaded boring bits
*Preformed steel stand
*Dovetailed table ways
*Convenient foot pedal control

Includes one, two spindle boring head

Shipping Footprint: 48 (length) x 40 (width) x (height)
Weight: 350 lbs
