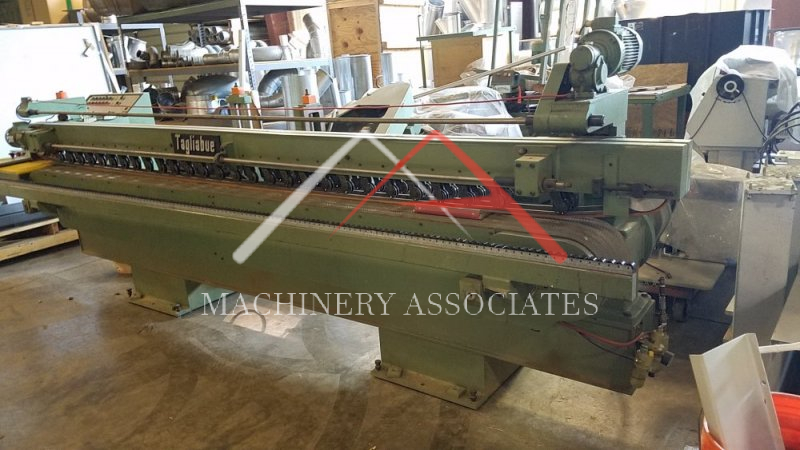

Tagliabue Profile Belt sander (Used)
MA ID: | SPM - 9174 |
Status: | Sold |
Price: | $14,500.00 |
Category: |
Profile/Moulding |

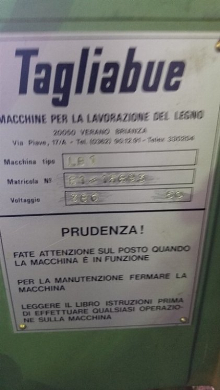

Manufacturer: | Tagliabue |
Model: | LB 1 |
Year of Manufacture: | 1993 |
Condition: | Very Good |
Electric: | 380-400 Voltage 50 Cycle 3 Phase |
Hours on meter: | na |
Profile Sanding Machine Capable of sanding large and heavy parts such as: doors, slab material, furniture parts & heavy mouldings.
Machine Specifications: 1st profile station; dual speed 7.5/9.5 HP motor 6" long spindle, 40 mm shaft diameter tilts, 2 speed 3,600 & 7,200 RPM motor (climb cut) 2nd station same as first but with conventional cut 3rd and 4th station "SNY45" 3 HP 3,450 RPM belt sanding units 3.5" wide x 109" long abrasive belts tilts -45 to 45 degrees unit allows for 500 mm height & 220 mm depth adjustment includes auto break sensor 5th station "SNY90" with 3HP motor 3.5" wide x 109" long abrasive belt tilts -15 to 90 degrees gravity roller infeed conveyor 4HP feed motor variable feed speed from 16-85 feet per minute feed chain with rubberized pads overhead holddown with rubberized wheels Includes 15 HP high frequency inverter for profile cutters outboard pannel supports and free standing table type control panel 4,500 lbs Dimensions: 210"L x 73"W x 89" H Machine Specifications: Sanding Stations: First: "SNY45" 3 HP 3,450 RPM belt sanding units 3.5" wide x 109" long abrasive belts tilts -45 to 45 degrees unit allows for 500 mm height & 220 mm depth adjustment includes auto break sensor Second: "SNY90" with 3HP motor 3.5" wide x 109" long abrasive belt tilts -15 to 90 degrees gravity roller infeed conveyor 4HP feed motor variable feed speed from 16-85 feet per minute feed chain with rubberized pads overhead holddown with rubberized wheels Includes 15 HP high frequency inverter for profile cutters outboard pannel supports and free standing table type control panel 4,500 lbs
|
|
Shipping Footprint: | 17' (length) x 6' (width) x (height) |
Weight: | 4500 lbs |
