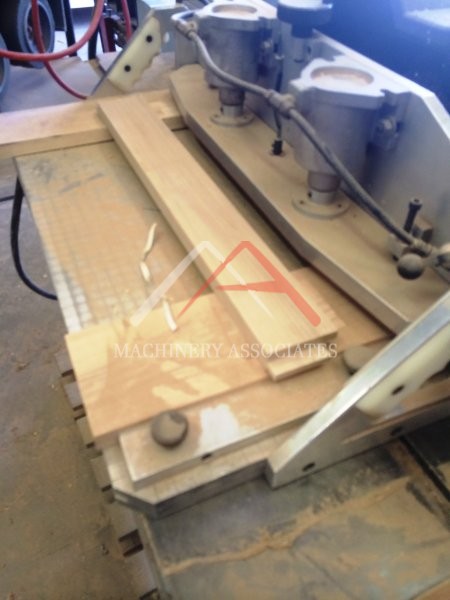

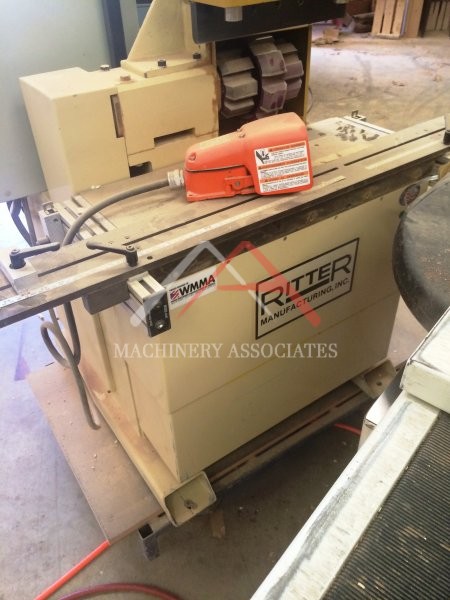

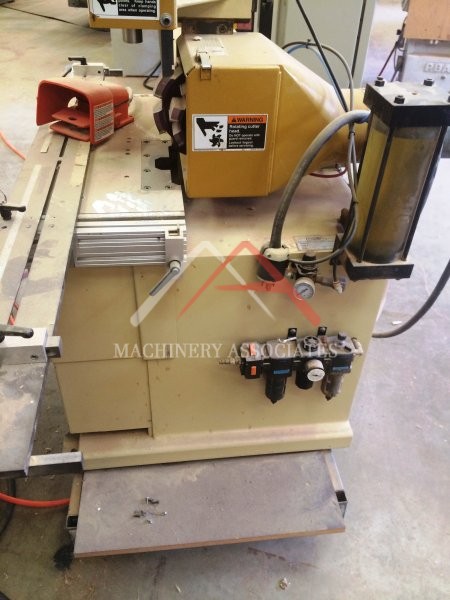

Ritter R9H Hauncher

MA ID: FFJ - 7690
Price: $9,795.00
Category:

Face Frame Joinery

Manufacturer: Ritter
Model: R9H
Condition: Good
Electric: 230 Voltage 60 Cycle 3 Phase

Designed for machining of beaded face frames, cabinet doors and related joint construction. The machine miters all required corners and notches without the need to change a set-up. Production time is reduced to seconds. Capable of machining (2) parts at the same time.

Specifications:

  • 7.5 h.p.
  • 40mm diameter 6500 rpm spindle (7" maximum cutter diameter)
  • Semi-automatic table feed system with adjustable table feed speed
  • 60" stile & rail alignment fence
  • 1-1/2" - 7"  material width capacity
  • (8) quick reference material fence alignment stops
  • (6) quick reference fence offset stops
  • Dual hold down clamp cylinders
  • 3-phase 230/460 volt, 60 hz
  • Foot pedal controlled machining cycle

NOTE:  There may be some variances in the above features.


All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
