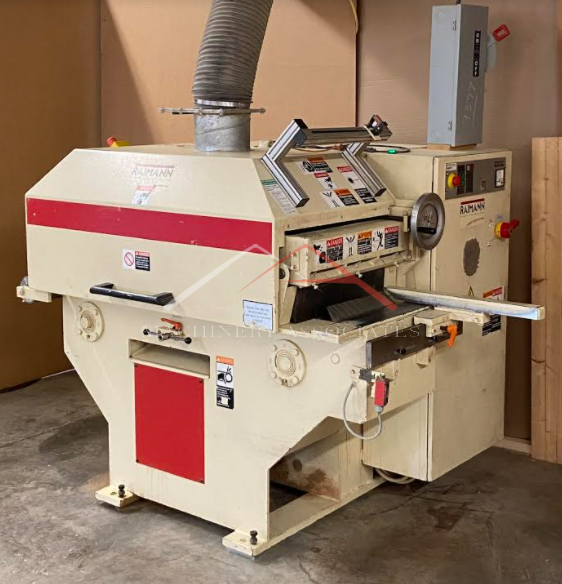

RAIMANN KMUS THROUGH FEED GAND RIP SAW

RAIMANN KMUS THROUGH FEED GAND RIP SAW

MA ID: RGR - 12506
Status: Sold
Price: $19,500.00
Category:

Rip Saw - Gang (multi blade)

Manufacturer: Raimann
Model: KMUS310
Year of Manufacture: 2001
Condition: Good
Electric: 460 Voltage 60 Cycle 3 Phase
OLDER RAIMANN IN GOOD CONDITION WITH QUICK FIX ARBOR.

Saw: KM 310M Gang rip.. Working dimension up to 12-1/4" width.  (4) fixed 15 mw laser lights.

Arbor: "QUICK FIX" arbor for fast changeovers. diameter 3-1/8" hydraulic set up for saw change. Saw dia. 10" to 14-7/8".

Motor: 50 HP V belt drive; with cutting shaft set at 4,200 RPM. (4) sets of antikick back protection -- 2/2.

Includes: Tools, collars and (3) blades


Shipping Footprint: 7 (length) x 6 (width) x 6 (height)
Weight: 4500 lbs
