Clean - Norfield Magnum 95 Door Machine 48" x 9' L Capapcity

MA ID: HHB - 8011
Status: Sold
Price: $23,995.00
Category:

Hinge/Hardware Boring
Manufacturer: Norfield
Model: Magnum 95 Door Machine
Condition: Good
Electric: 230/460 Voltage 60 Cycle 3 Phase

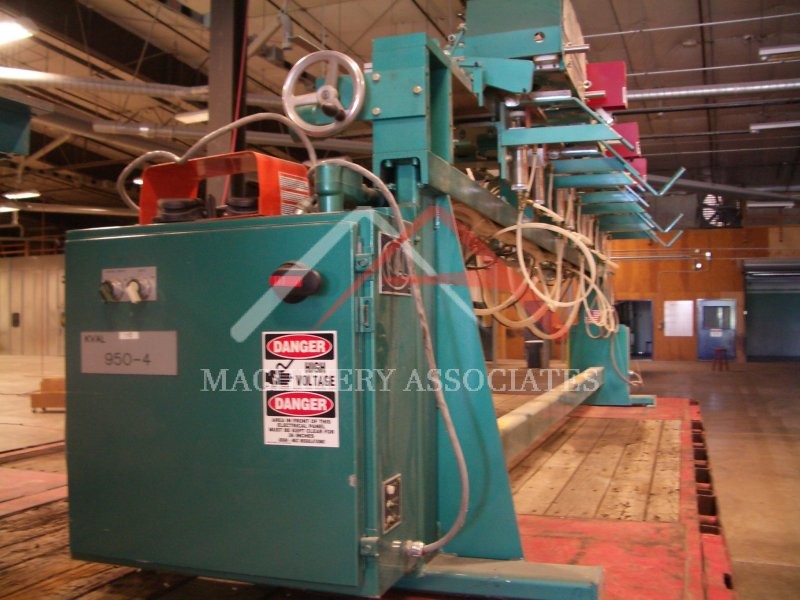

  • Norfield Magnum 95 Door Machine Center
  • Model: Magnum 95; SN: ; Dj2431-95
  • 230/460v; 3ph; 60hz.
  • Door width cap. from 18" - 48" with infinite power assisted fractional adjustment stops, 9' max. door height cap. and a thickness from 1-1/8" to 2-1/4"; lock-bore back set from 2-3/8" to 5"; jamb width cap. from 2-1/2" to 10-1/2"; lamb thickness from 1/2" to 1-5/8"; hinge butts cap. from 3-1/2" to 5"; 1/4" or 5/8" radius & square corners with pneumatic chisel pistol and infinite hinge spacing.
  • Equipped with: (2) Power feed wheels that automatically carry the door over the 5 HP motor edge beveler; (2) flap sanding heads that ease the corners.

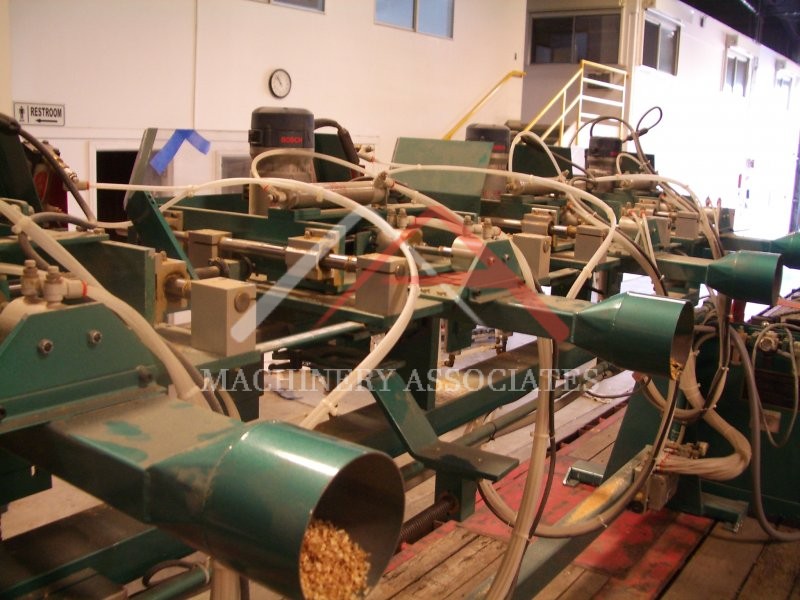

  • Combination lock-set borer for strike edge & borer for face with backing plate; top-mounted hinge-plate router assembly for hinge mortise on door, and jamb with adjustable pneumatic clamping system built into the mortising "carriage".
  • Includes: Powered 2-speed height adjustment rack for variable door widths with pneumatic door and jamb clamp assembly on router carriage; accepts 1-3/4" doors with applied mouldings to 2-1/4" O.A. thickness.
  • Complete with: All electronic controlled electrical motors, cutterhead mandrels with spares, latch drill assembly, router & router carriage, sander wheels, tool & accessory trays.

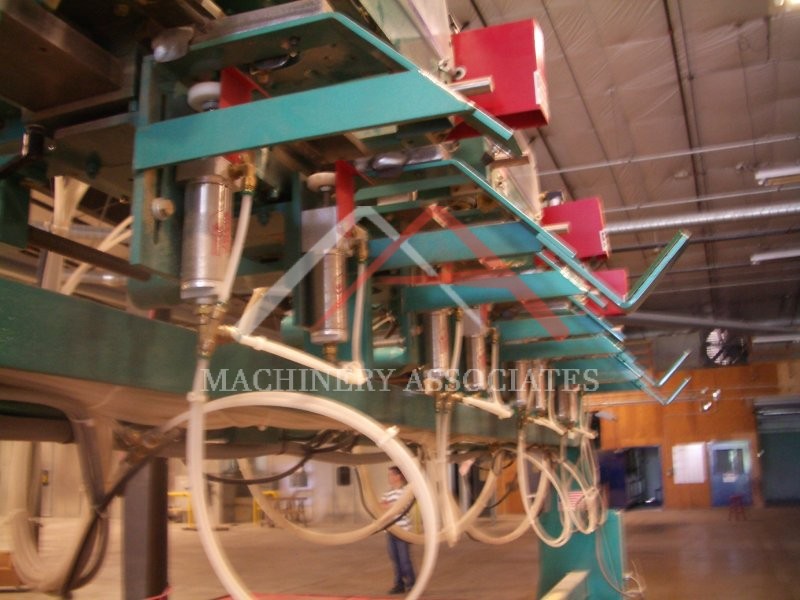

  • Features: (3) Adjustable pneumatic torque drills on upper hanging carrige roller rack and automatic oiler for the system's working parts.
  •
  • FOB: WA
  • This machine is offered “in good running condition as taken from service” and is subject to prior sale.
  • Specifications are approximate and to the best of our knowledge. Verification is available upon request.
Shipping Footprint: 16' (length) x 4' (width) x 5' (height)
Weight: 2000 lbs
Rigger: Required on selling end
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
