Finishing > Systems & Automated Lines

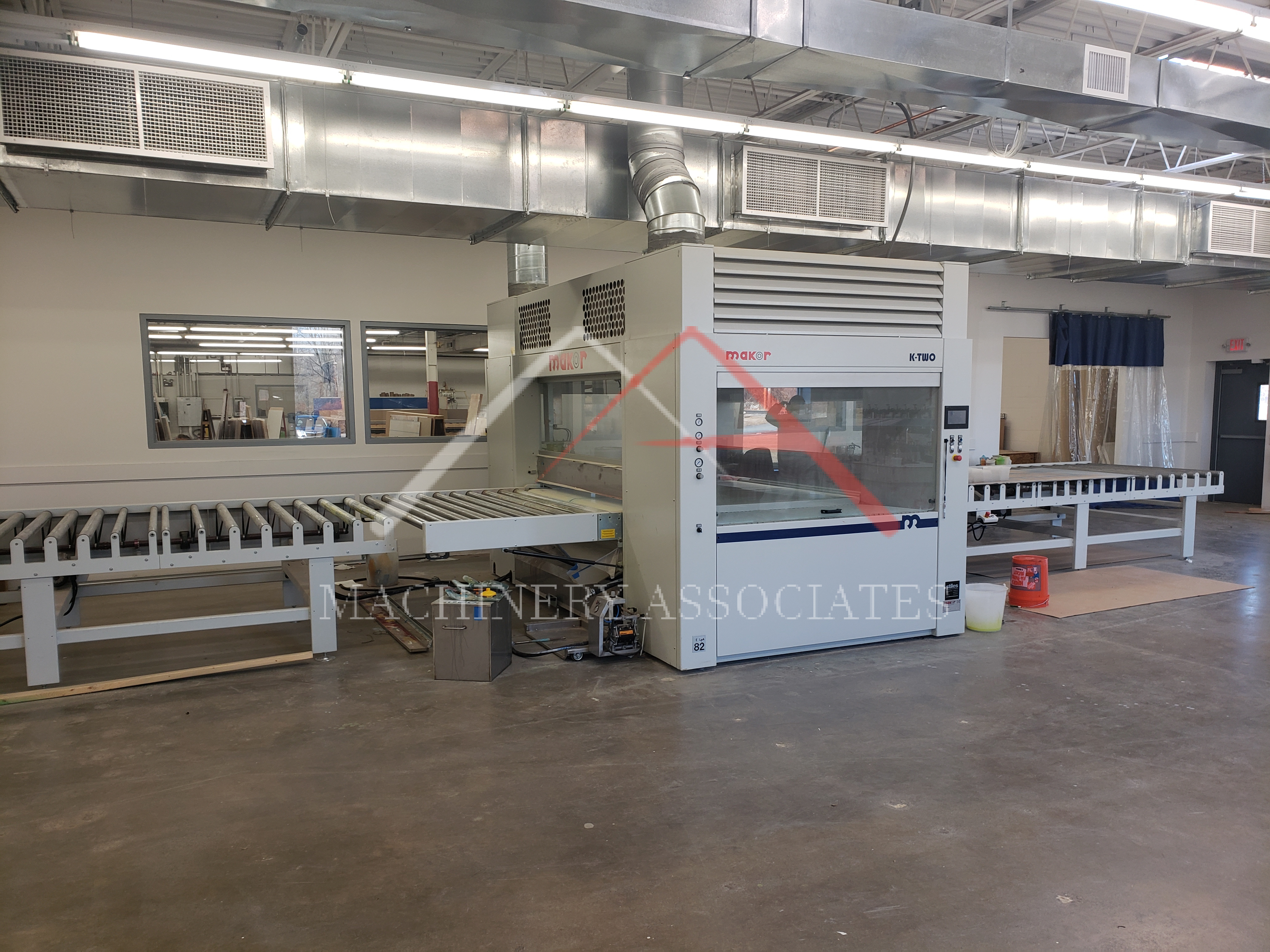

MAKOR K- two 77" wide, 2 arm, 8 gun spray machine

LATE MODEL (2017) MAKOR K- 77" wide belt 2 arm 8 gun spray machine. Conveyor is paper or vinyl for different applications Both included

MA ID: FLA-11959
Price: Call For Price
General Location: North East

Systems & Automated Lines

Manufacturer: MAKOR
Model: K-TWO
Year of Manufacture: 2017
Condition: Very Good
MAKOR K-two 2017 with 77" wide Spray Line!!


2017 MAKOR K-2   6-1/2' spray area!!  wide Automatic Sprayer.

Uniformity of painting are the main features of the K-2 sprayer. Handled by a touch screen monitor, there is high productivity savings on coating material.

Hybrid Feed Belt

A solvent resistant feed belt in anti-static material - easy to clean. The material scrape (squeegee) cleans the belt at the downside of the out-feed, so it returns to the application area, completely clean.  This is great for water based materials or UV material.

A paper belt is also outfitted to this machine. This is good for solvent based material and saves on disposal costs! The paper rollers roll out from under the in-feed and out-feed areas for ease of access.

The spraying system consists of 2 oscillating arms, each is electronically controlled. Both arms have 4 guns and two paint circuits. The spraying area (booth) maintains perfect pressurization which is important to the cleanliness of your product finish.

  • Flexibility, reliability, user-friendly low running costs: ideal solution for just in time production.
  • Wide spraying booth, with G4 filtering pressurization Glasses installed on 4 sides, ensures perfect visibility during the functioning.
  • Reading Bar - Piece reading device with 12 mm resolution that allows high paint saving.
  • Double suction filters, with wide filtering surface of 6 square meters,ensure long working autonomy.
  • PLC TOUCH-SCREEN - Machine interface, with touch-screen panel is user friendly.


Foot Print

Width 3530 mm  -  139.76" - 11' 6"

Length  4200 mm  -  165.35"  -  13'7"

Height  2500 mm  -  98.42"   -  8'2"

Installed total power  Kw 10.0

Feed Speed   1.2  + 6.0  m/min -  3.93' Ft/ Min  +  19.68 Ft/ Min.

Included are the in-feed and out-feed conveyors. These are both powered conveyors and are controlled by the PLC of the machine.

This unit is suitable for medium volume of production with Large glass structure on pressurized cabin (glass on 4-sides) with big filters with double filtering stage.

This machine was $260,000, new! Big savings for a low hour machine!!

Weight: 3500 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
