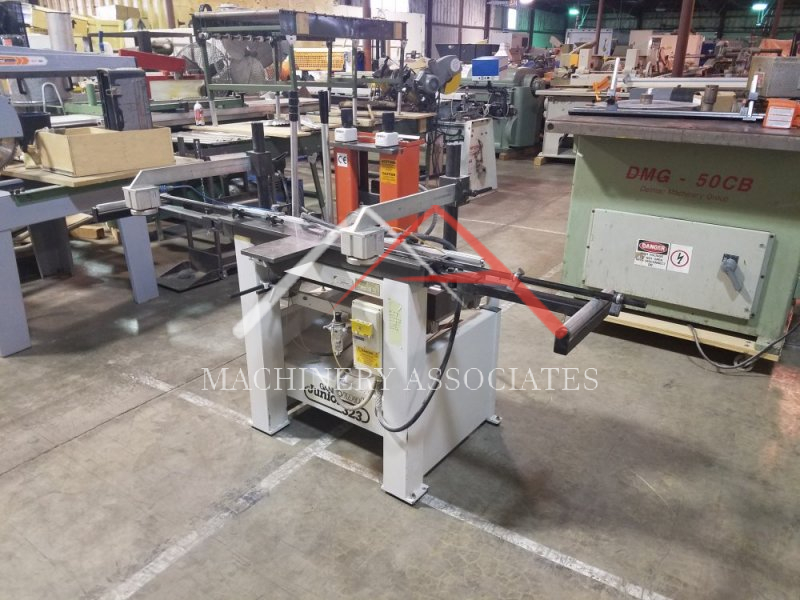

Gannomat Horizontal Mortiser & Drilling Machine. (Used)

MA ID: MO-10697
Price: $9,500.00 -or- as low as $191.99/mo.*
General Location: North East
Category:

Mortisers (Horiz.& Vert)

Manufacturer: Gannomat
Model: Junior 323
Year of Manufacture: 1999
Condition: Very Good
Electric 220 volt, 60 cycle, 3 phase


Manufacturer Ganner Gannomat
Type "Junior 323"
Mach.-No.
875725
Complete in standard version with:
- Two-piece chuck for tools up to max.
20 mm shaft diameter
- Engine 1,5 kW, 2800 rpm
- Position setting via digital counter
- Position adjustment for 2 levels, pneumatic (0 - 100 mm)
- drilling depth max.
150 mm
- Precision raster bar in a 12 mm grid with:
- Center locking and crossover 320 mm
- 2 pneumatic safety cylinders
- Stop system complete consisting of:
1 center stop, as well as 1 stop for oversized frames
1 stop rod approx. 850 mm long (mirror image can be converted from left to right)
2 folding stops
- Long hole drilling device can be lowered with 2 programnocks
(400V, 3Ph, 50Hz, 1.5kW)
Item No.
0323-0000
included:
1 suction funnel D. 80 mm dust-tested
Item No.
0323-0810
1 pair of workpiece support supports swivel (left & right)
Item No.


- Two-piece chuck for tools up to max. 3/4" (20 mm) shaft diameter

-Motor 1,5 kW, 3HP 2800 rpm

- Position setting via digital counter

- Position adjustment for 2 levels, pneumatic 4" (0 - 100 mm)

- drilling depth max.  6" (150 mm)

- Precision raster bar in a 12 mm grid with:

- Center locking and crossover 320 mm

- 2 pneumatic safety cylinders

- Stop system complete consisting of:

1 center stop, as well as 1 stop for oversized frames

1 stop rod approx. 850 mm long (mirror image can be converted from left to right)

2 folding stops

- Slot drilling device can be lowered with 2 programnocks






Shipping Footprint: 48 (length) x 48 (width) x (height)
Weight: 900 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
