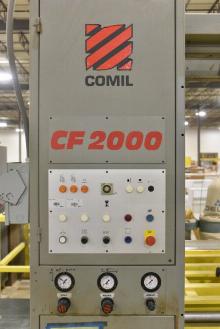

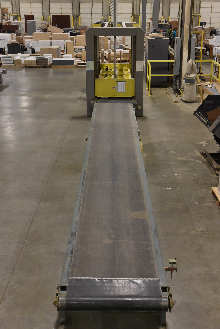

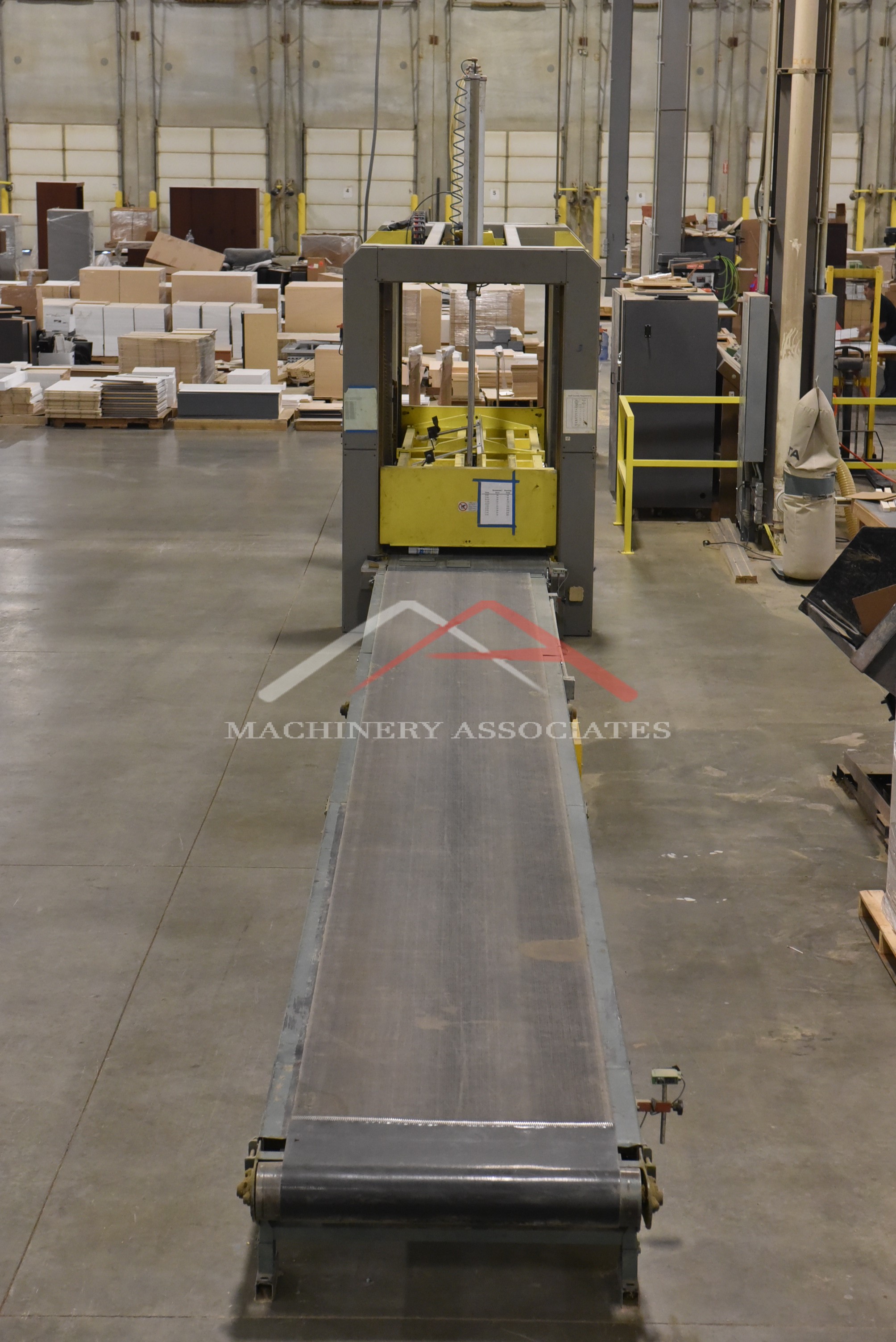

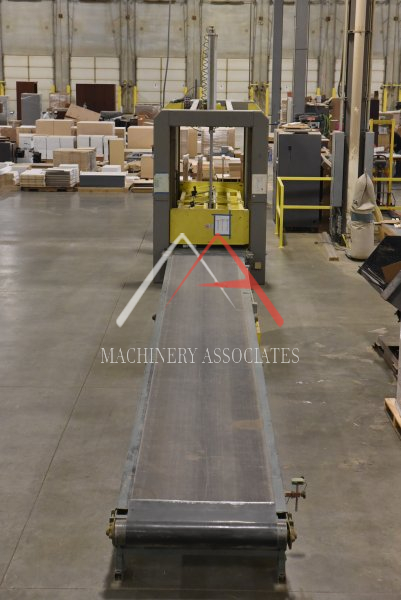

Comil CF-2000 Feed Through Case Clamp
| MA ID: | CF - 10656 |
| Status: | Archived |
| Price: | $35,000.00 |
| Category: |
Clamps - Case & Feed Thru |
| Manufacturer: | Comil |
| Model: | CF-2000 |
| Year of Manufacture: | 2000 |
| Condition: | Very Good |
| Electric: | 480 Voltage 60 Cycle 3 Phase |
|
WORKING FIELD ALONG THE X AXIS MIN. 300M – MAX. 2500MM WORKING FIELD ALONG THE Y AXIS MIN. 300MM – MAX. 800MM WORKING FIELD ALONG THE Z AXIS MIN. 300MM – MAX. 1200MM MOBILE SHOULDER POSITIONING SPEED 6.8M/MIN. CLAMPING TABLE POSITIONING SPEED 12M/MIN. CROSS-BAR 15M/MIN. VERTICAL CLAMPING FORCE 14000N HORIZONTAL CLAMPING FORCE – 2 CROSS-BARS 12,200N – 3 CROSS-BARS 15,200N HEIGHT OF WORK TABLE 500MM WORKING AIR PRESSURE 6 BAR COMPRESSED AIR CONSUMPTION / CYCLE 652 N1 (MAX.) CONVEYOR TRANSPORT SPEED 17.7 M/MIN. |
|
| Rigger: |
Required on selling end
Required on buying end |
