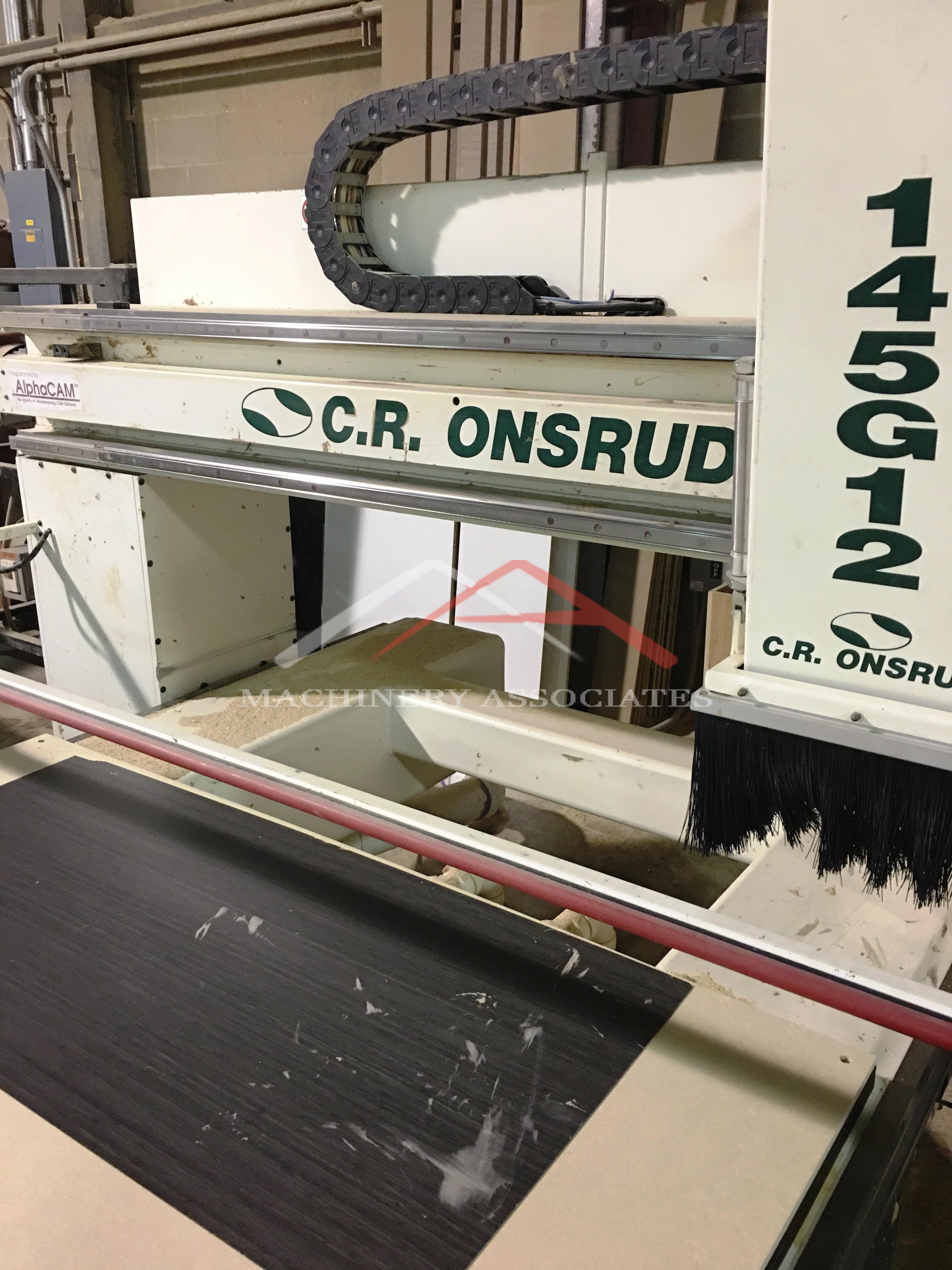

CR Onsrud 145G12 CNC Router

AMC Controlled unit

MA ID: RC3-9916
Price: $34,500.00 -or- as low as $697.25/mo.*
General Location: Atlantic
Category:

CNC Router (3-axis)

Manufacturer: C.R. Onsrud
Model: 145G12
Year of Manufacture: 2003
Condition: Good
Electric 230 volt, cycle, 3 phase
C.R. Onsrud 145G12 CNC Router (5x12)
MACHINE OPTIONS INCLUDED –
* HSK-63 Spindle Taper & Tool Changer Adapter
* High Speed – High Production – Encoder Based Digital Brushless AC Servos Larger servos, drives, amps for faster feed rates, heavier cutting, & increased accuracy
* 12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled instead of Stepper controlled.  Design eliminates misfires & more quickly changes between 12 different tools – (w/2 free HSK-63 tool holders) AND MORE…
There will be an additional cost for freight and installation.
Note:  There may be some variances in the above featuresMACHINE OPTIONS INCLUDED –

* HSK-63 Spindle Taper & Tool Changer Adapter

* High Speed – High Production – Encoder Based Digital Brushless AC Servos Larger servos, drives, amps for faster feed rates, heavier cutting, & increased accuracy

* 12 Tool – Dynamic Automatic Rotary Tool Changer – Fully Servo controlled instead of Stepper controlled.  Design eliminates misfires & more quickly changes between 12 different tools – (w/2 free HSK-63 tool holders) AND MORE…

There will be an additional cost for freight and installation.

Note:  There may be some variances in the above features.

(145” X 61” axis travel) – with: Thermal Heat Treated, Stress Relieved, & Normalized One-Piece, Steel Frame Base, & Thermal Heat Treated, Stress Relieved, & Normalized Steel Bridge; Dual Support, Dual Drive, Moving Gantry, Fixed Table Design with standard 2,000” per minute machining speed, full 3-D capability, 14” under bridge clearance & 11” Z axis stroke, 16’X8’ footprint, oversized precision ball screw drives for Z & Y axis, case-hardened, oversized, precision ground, helical rack & pinion drives for X axis, THK precision linear profile guide ways, Onsrud AMC controller by North East Electronics, 12.7HP fully programmable, variable speed, quick-change, cartridge style spindle, with air blast, capable of routing & drilling, programmable feed rates with override capability, SINGLE FIXED 144”X60” TABLE, w/3 independently controlled vacuum zones & full table coverage.  Each zone has low vacuum sensing safety shut-off with override capability. Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck through or dedicated spoil boards, & is easily modified for the use of pod systems.  Moving gantry is surrounded by a pressure sensitive safety-stop / emergency-stop bar.

Rigger: Required on selling end
Required on buying end
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
