Sanders > Wide belt (Multi contact)

Butfering CE SCO213 Diamond 2-head Wide Belt Sander

53" ideal for thin veneer and lacquer sanding.

MA ID: SWM-12244
Price: $34,900.00 -or- as low as $705.33/mo.*
General Location: North East
Category:

Wide belt (Multi contact)

Manufacturer: Butfering
Model: SCO 2213/CE/Diamond
Year of Manufacture: 2004
Condition: Very Good
Electric 480 volt, 60 cycle, 3 phase

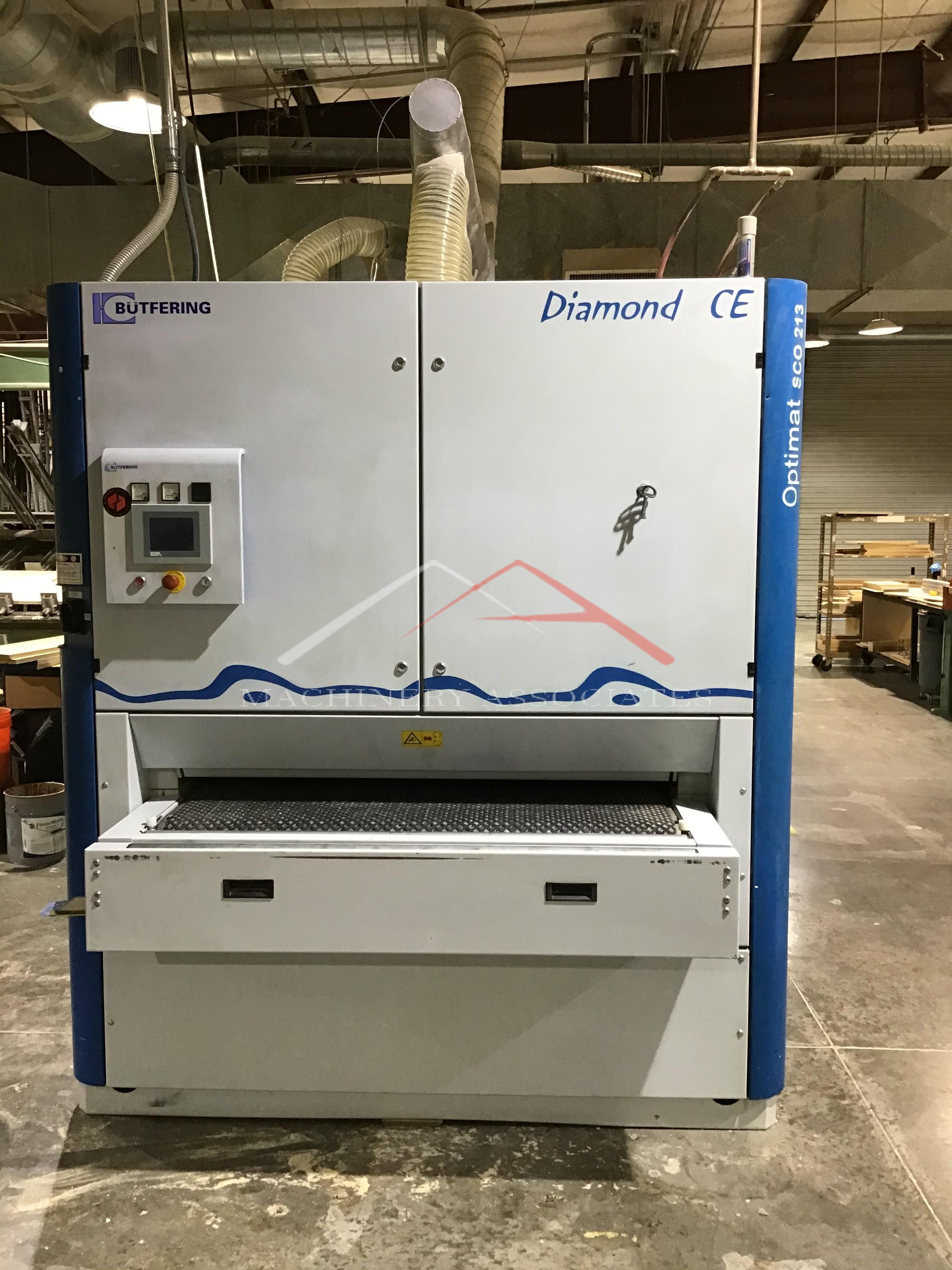

Butfering Optimat SCO 213CE Diamond 2-Head Widebelt Sander

2-Head, 53" width  CONSTANT PASS UNIT

Belt Size;  52" X 103" (1,320 X 2,620 mm)

1st Head:  Rubber covered contact rolls with 85* shore (grooved) w/segmented platen pneumatically controlled with variable edge pressure, 25 HP motor inverter drive for 30 - 60 FPS belt speed, abrasive belt.

2nd Head: Combination head with rubber covered contact roll and segmented polishing platen, 52-25 mm wide segments pneumatically controlled with variable edge pressure, 20 HP motor inverter drive for variable abrasive belt speed 5 - 40 FPS.

Outfeed rotary panel/fill smoothing brush 5HP motor.

Air jet abrasive belt cleaning on both heads.

Conveyor belt feed;  2 HP (8-42 FPM) variable feed speed,  feed drive, vacuum bed (4.7HP Vac Motor)

Computer control LED terminal, (50) sanding programs for automatic setup, automatic positioning of contact roll.

Automatic conveyor belt tracking, 0" - 6" motorized thickness adjustment with LED readout.

Electronic brakes on both sanding head motors.



Shipping Footprint: 8 (length) x 8 (width) x 8 (height)
Weight: 4500 lbs
Rigger: Not Required
