Boring > Point to Point

Bre.Ma Vertical Machining Center

Bre.Ma Machines are high quality CNC Boring machines w/CNC Router capacity. This is a nice, compact answer to your space and production need

MA ID: PTP-12118
Price: $49,900.00 -or- as low as $1,008.48/mo.*
General Location: Mountain
Category:

Point to Point

CNC Router (3-axis)

Manufacturer: Bre.Ma
Model: EKO 902
Year of Manufacture: 2012
Condition: Very Good
Electric Multi volt, 60 cycle, 3 phase

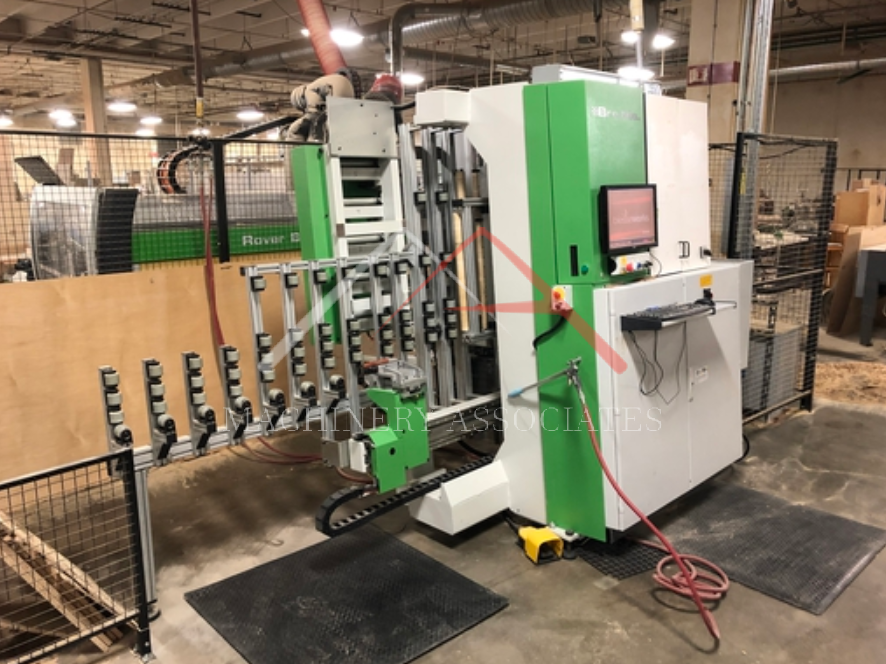

Bre.Ma. Vertical CNC Machining Center Model EKO 902

Specifications:

Panel Length X : 60 - 3200 mm (up to 10'!)

Panel Width Y:   20 - 900 mm  (35-1/2")

Panel Thickness Z:  10 – 80 mm  (3-1/8")

13 Vertical Spindles (6 in X & 7 in Y)

   3 Double Horizontal Drilling Spindles (X)

   1 Double Horizontal Spindle (Y)

Saw Blade Unit (120mm)

6 HP CNC Router Spindle (ISO 30) w/5 Postition Tool Changer



Features:

Versatile, Efficient Machine with Small Footprint!

Loading Conveyor with Idle Rollers and 2 Grippers

Grippers work Independently

ZERO Set-Up Time Between Panels Regardless of Length or Thickness

Rigid Structure and Compact Machine Dimensions

Flexibility and High Production Speeds

PC w/Color Monitor

Safety Mats & Guards



Multi-Tap Transformer Included

Biesse Works Software Included



These are well respected machines and are not often available in the used market.

Shipping Footprint: 1/2 Truck (length) x 8 (width) x 8 (height)
Weight: 5000 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
