MA ID: EBS-10355
Price: $18,500.00 -or- as low as $373.88/mo.*
General Location: Mountain

Edgebanders -Single Sided

Manufacturer: Brandt
Model: KDN-540-2C
Year of Manufacture: 2004
Condition: Good
3-7-19 Still available

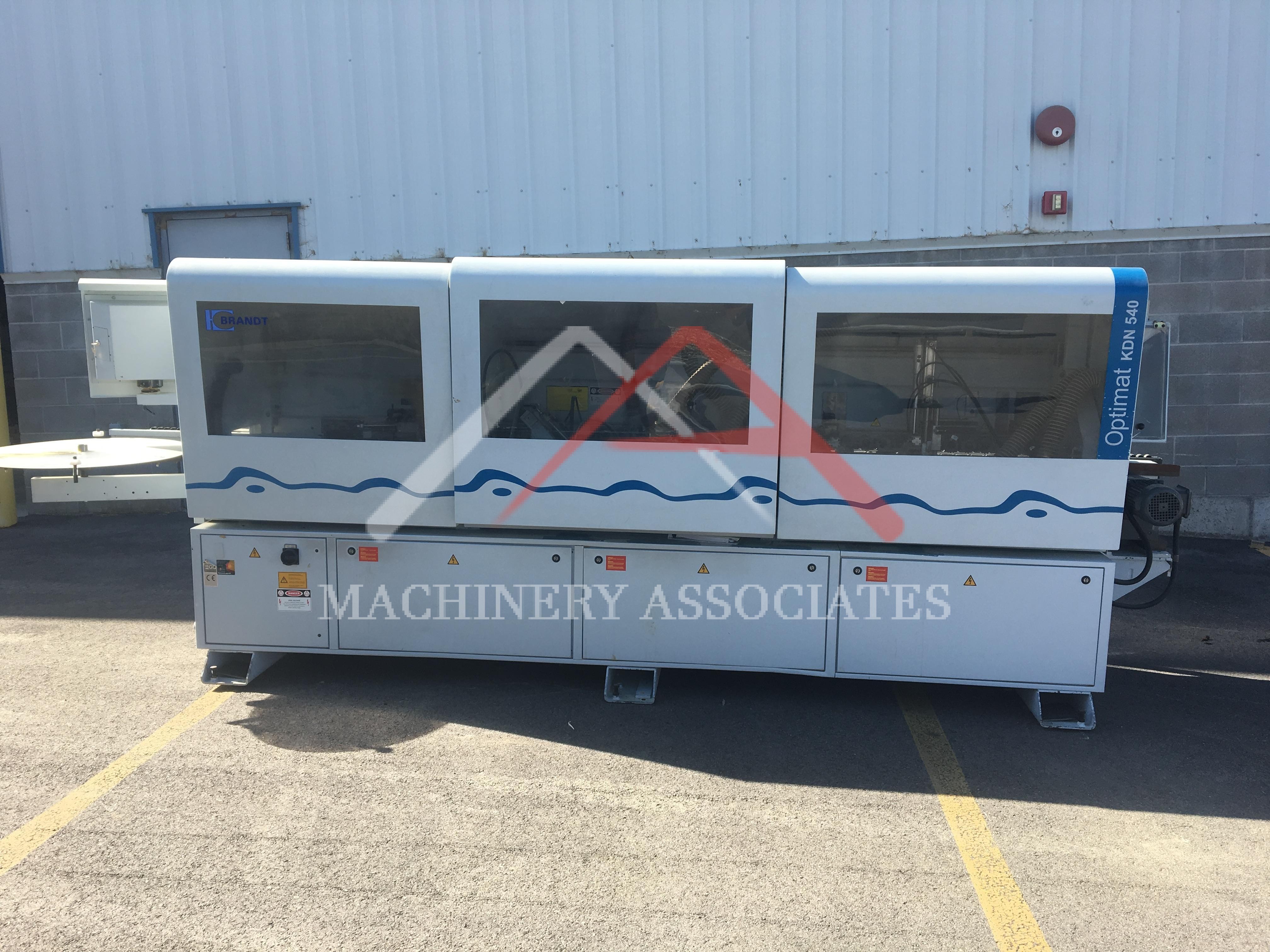

Brandt KDN-540-2C Servo Edge Bander


0.4 - 8 mm (1/64" - 5/16") Edge capacity, Panel thickness 12 - 55 mm (1/2" - 2-3/16"), Minimum panel length 160 mm (6-3/8") and 65 mm (2-1/2") minimum width

Equipped with Integrated Line control - No limit switches used for setting workstation function

Open Station for Joint Trimming Unit for pre-trimming of the workpiece prior to gluing

Universal Automatic Magazine for Strip and Coil Feeding with strengthened precutter for cutting PVC from the coil - 800 mm Diameter coil table for large 3 mm PVC coils

Glue Station - Quick heat up Granulate Gluing System, includes reversible rotation of glue application roller; Pressure Section with (1) large driven pressure roller and (2) secondary roller with controlled side pressure

Double Motor End trim Station - Straight-Chamfer 0 to 15° - (2) 1/4 HP - 12,000 RPM motors; program controlled indexing from straight to bevel end trimming

Flush Trimming Unit - (2) 3/4 HP - 12,000 RPM motors with 2-Position Vertical Positioning

Fine Trimming Station - (2) 3/4 HP - 12,000 RPM motors; Servo Motor Program controlled indexing

Contour Trimming Unit - (1) ½ HP - 12,000 RPM motor; For corner rounding of thick PVC Edges

Scraping Station with Knives - For scraping of roughly trimmed PVC edges in order to remove cutter marks; program controlled pneumatic indexing

Top & bottom buffing Station - inclinable vertically and horizontally

Feed chain track speed - (2) Speeds: 36 FPM when contour trimming, otherwise 46 FPM; 3 HP feed drive

Equipped with digital height indicator, Electronic Frequency Changer for all trimming motors

Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
