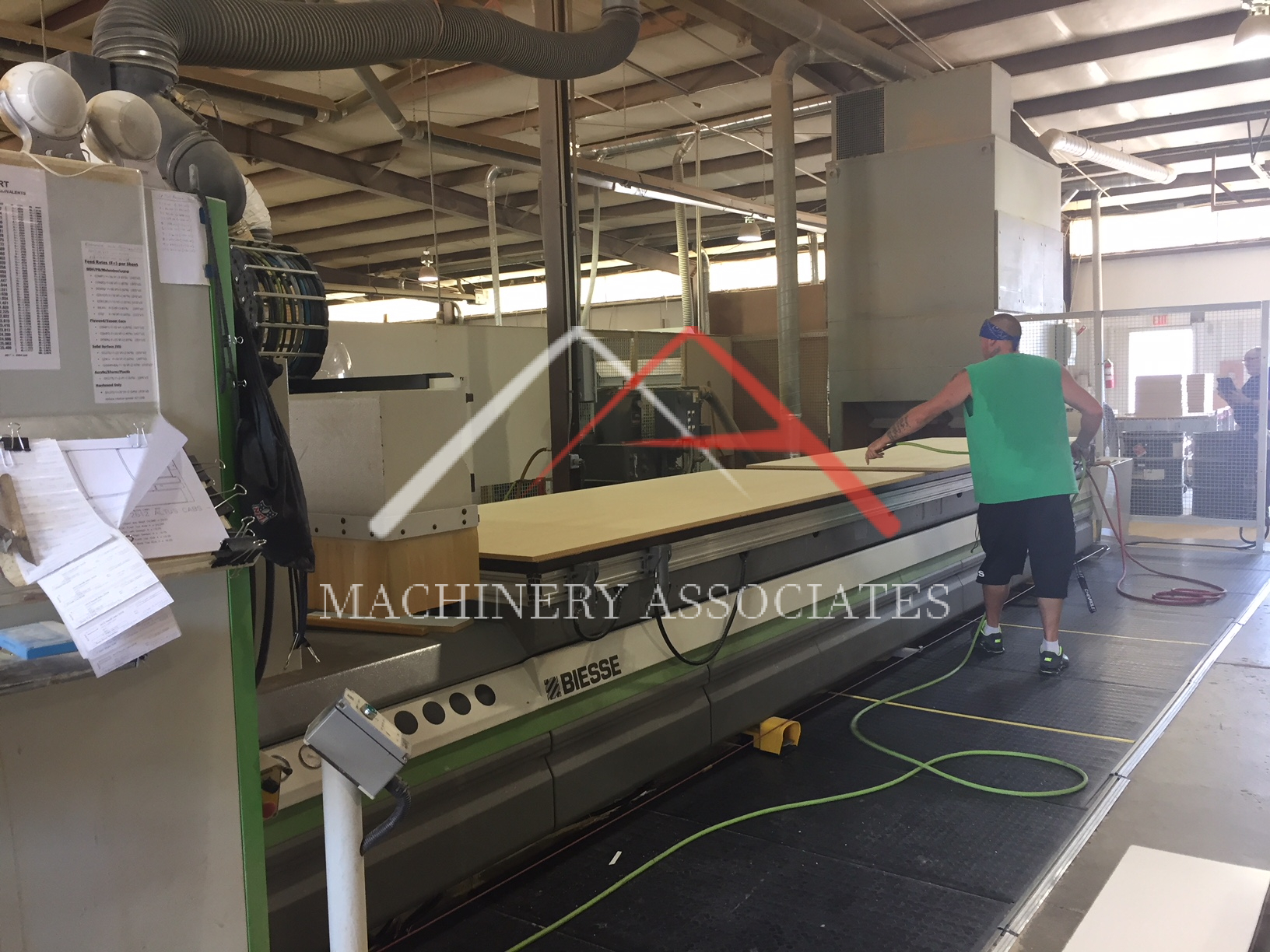

Biesse Rover 4.65 20 CNC Router

These long tables are sought after machines. The Rover B is the workhorse of Biesse's machines and this one has been well kept!

MA ID: RC3-11767
Price: $28,900.00 -or- as low as $584.07/mo.*
General Location: South
Category:

CNC Router (3-axis)

Manufacturer: Biesse
Model: Rover B 4.65 FT
Year of Manufacture: 2005
Condition: Very Good
Electric multi volt, cycle, phase
Hours on meter: NA
Biesse Rover B 4.65FT is a 20' (4' wide) Flat Table CNC Router It has all the toys!



Working Field

                        X          6,450 mm         (254”)

For routing:       Y          1,380 mm         (54.33”)

For drilling:       Y          1,624 mm         (63.9”)

Parts Z-axis clearance:  Z = 150 mm      (5.9”)

FULL PENDULUM CAPABILITY OF 8-FOOT LONG SHEETS



16.3 HP  (12 KW) HSD Electrospindle

   Liquid Cooled Spindle

   HSK F63 Toolholders

10 Position Auto Tool Changer

Boring block

   12 independent vertical spindles at 32 mm center distance, 6 of    which are placed along X and 6 along Y, axis'

   6 horizontal spindles, 4 of which are placed along X-Axis and 2    along the Y-Axis

   2.3 Hp motor; spindle rotation speed 4000 rpm

   Circular saw unit, for grooves along X diameter 120 mm (max depth for grooves 25 mm).



25 Hp Travaini  Vacuum Pump



More pics and video to come - Available, end of Sept.

Shipping Footprint: 30 (length) x 8 (width) x 8 (height)
Weight: 15000 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
