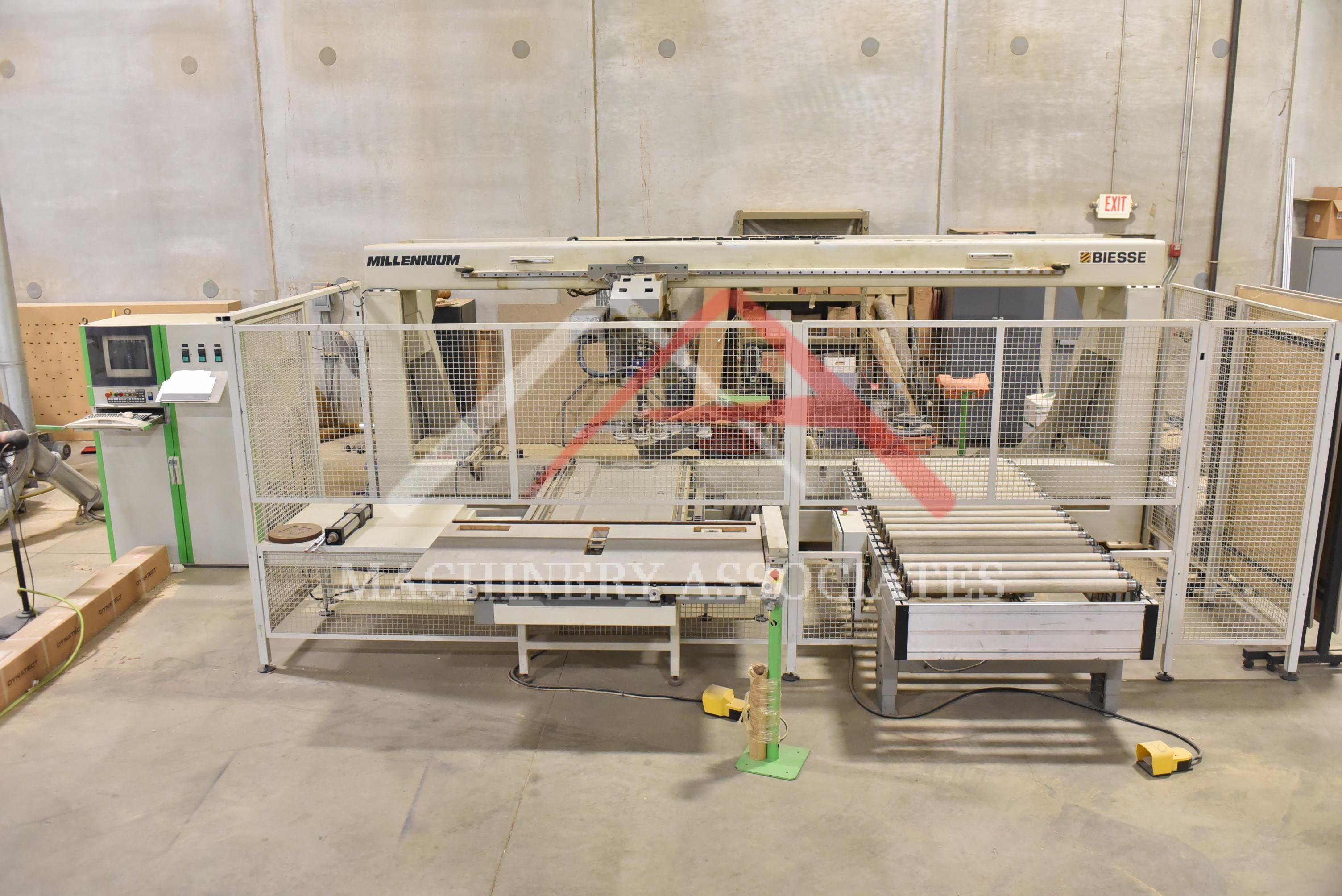

Biesse Millennium CNC Edgebander A RARE FIND!!

CNC Edgebander

MA ID: EBC-10657
Price: $49,000.00 -or- as low as $990.29/mo.*
General Location: Midwest

Edgebanders - Contour

Edgebanders -Single Sided

Manufacturer: Biesse
Model: Millennium
Year of Manufacture: 2000
Condition: Very Good
Electric 480 volt, 60 cycle, 3 phase

CNC Numerically controlled automatic Edgebanding Machine precisely applies ABS & PVC edgebanding automatically to square or irregular shaped parts as the product rotates on a top beam mounted "vacuum hand" along the X-, Y- & Z-axis, and simultaneously rotates the panel on a high precision C-axis. AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration & deceleration.

  Operating units: Floating hot melt glue pot & application roller with separate thermostats apply glue on the panel edge. Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding, numerically controlled with encoder that measures strip feeding process.

  Pneumatically activated saw blade performs the end trimming at a 35° angle for precise fitting of overlapping joints on adjoining edges; preheated tape magazine with warning sensor when the end of spool is near. Top & Bottom trimming units with (2) 2.2 kW high frequency motors at 12,000 - 18,000 RPM with top, bottom, and side coping devices.

  Panel loading and unloading system with shuttle table for next workpiece.

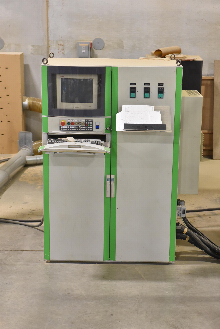

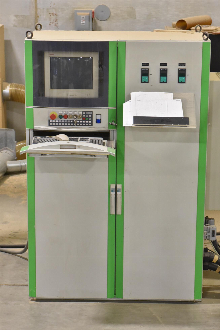

  "NC 410 Deluxe" Numerical control: Icon driven with a graphical interface that allows the operator to quickly and efficiently create programs. - Includes: 144 MB Disk drive, 12" color LCD monitor, multitask operating system, input/output modules, axes override, 4-axis interpolation, diagnostic graphics aid for programming, machine data & tool management, and RS-422 serial connection to PC (up to 300 meters), (2) line adaptors RS-232 & 485.2 with 9-25 pin and card for RS-232 line (cable not included).

  Editor Module for PC with same look & functionality of software on the machine; allows transmission of programs & work lists; PC configuration (PC not included) Pentium processor, 8 MB RAM, 8 MB hard disk; VGA video card; Windows/NT.

  Complete with: Perimeter protection cage, Brand new glue pot, user manuals, wiring diagrams, spare parts, and operation of Numerical Control.

Weight: 15000 lbs
Rigger: Required on selling end
Required on buying end
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
